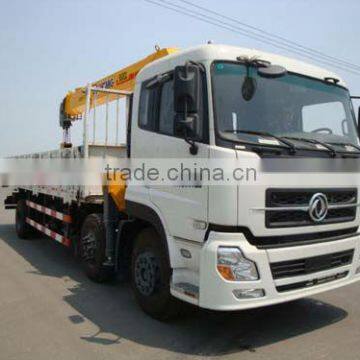

Dongfeng 6x2 cargo crane truck
- 1000 Unit / Units per Month
- Any port of China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | All rotation | |
| Rated Loading Capacity | 9635kg | Rated Lifting Moment | 25T.M | |
| Max. Lifting Load | 10000kg | Max. Lifting Height | 14000mm | |
| Span | 12000mm | Place of Origin | Hubei, China | |
| Brand Name | Dongfeng | Model Number | DFL1203A | |
| Certification | CCC,ISO9001 | Warranty | One year |
Product Description
Specifications
1.Fashion design2.Mature technology stable performance
3.Competitive Price
4.Dongfeng 6x2 cargo crane truck
1.Fashion design
2.Mature technology stable performance
3.Competitive Price
4.Dongfeng 6x2 cargo crane truck
Item | Unit | Parameter | ||||||
Chassis model | / | DFL1203A | ||||||
Overall dimensions | mm | 11540×2490×3900 | ||||||
| Curb weight | kg | 10725 | |||||
GVW | kg | 20490 | ||||||
Rated load | 9635 | |||||||
Lorry van size | mm | 7950×2294×550 | ||||||
Wheel base | 1950+5350 | |||||||
F/R track base | 1460/2780 | |||||||
Approach/departure angle | ° | 30/19 | ||||||
Rated power/ Horse power | KW/PS | 154KW/210PS | ||||||
Max speed | km/h | 90 | ||||||
Tire specification | 11.00R20 | Engine type | EQB210 | |||||
Traction system | 6×2 | Transmission | 8JS85E | |||||
Number of axles | 3 | Electric system | 24v | |||||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |||||
Parameter of crane | ||||||||
Model | SQ10SK3Q | Unit | ||||||
Max Lifting Capacity | 10000 | kg | ||||||
Max Lifting Moment | 25 | T.M | ||||||
Recommend Power | 28 | kw | ||||||
Max Oil Flow of Hydraulic System | 63 | L/min | ||||||
Max Pressure of Hydraulic System | 26 | MPa | ||||||
Oil Tank Capacity | 160 | L | ||||||
Rotation Angle | All Rotation | |||||||
Crane Weight | 3800 | kg | ||||||
Installation Space | 1150 | mm | ||||||
SQ10SK3Q Lifting capability diagram | ||||||||
Working radius (m) | 2.5 | 4.5 | 7 | 9 | 12 | |||
Lifting capacity (kg) | 10000 | 5500 | 3200 | 2300 | 1500 | |||
If need more information ,please feel free to contact me.
Welcome to visit our company in China!
...
