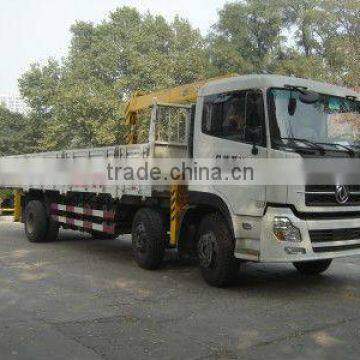

Dongfeng 6x2 truck mounted crane
- 1000 Unit / Units per Month
- Any port of China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | All rotation | |
| Rated Loading Capacity | 9635kg | Rated Lifting Moment | 25T.M | |
| Max. Lifting Load | 10000kg | Max. Lifting Height | 14000mm | |
| Span | 12000mm | Place of Origin | Hubei, China | |
| Brand Name | Dongfeng | Model Number | DFL1203A | |
| Certification | CCC,ISO9001 | Warranty | One year |
Product Description
Specifications
1.Fashion design2.Mature technology stable performance
3.Best Price
4.CCC, ISO9001
5.Dongfeng 6x2 truck mounted crane
1.Fashion design
2.Mature technology stable performance
3.Best Price
4.CCC, ISO9001
5.Dongfeng 6x2 truck mounted crane
Item | Unit | Parameter | ||||||
Chassis model | / | DFL1203A | ||||||
Overall dimensions | mm | 11540×2490×3900 | ||||||
| Curb weight | kg | 10725 | |||||
GVW | kg | 20490 | ||||||
Rated load | 9635 | |||||||
Lorry van size | mm | 7950×2294×550 | ||||||
Wheel base | 1950+5350 | |||||||
F/R track base | 1460/2780 | |||||||
Approach/departure angle | ° | 30/19 | ||||||
Rated power/ Horse power | KW/PS | 154KW/210PS | ||||||
Max speed | km/h | 90 | ||||||
Tire specification | 11.00R20 | Engine type | EQB210 | |||||
Traction system | 6×2 | Transmission | 8JS85E | |||||
Number of axles | 3 | Electric system | 24v | |||||
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |||||
Parameter of crane | ||||||||
Model | SQ10SK3Q | Unit | ||||||
Max Lifting Capacity | 10000 | kg | ||||||
Max Lifting Moment | 25 | T.M | ||||||
Recommend Power | 28 | kw | ||||||
Max Oil Flow of Hydraulic System | 63 | L/min | ||||||
Max Pressure of Hydraulic System | 26 | MPa | ||||||
Oil Tank Capacity | 160 | L | ||||||
Rotation Angle | All Rotation | |||||||
Crane Weight | 3800 | kg | ||||||
Installation Space | 1150 | mm | ||||||
SQ10SK3Q Lifting capability diagram | ||||||||
Working radius (m) | 2.5 | 4.5 | 7 | 9 | 12 | |||
Lifting capacity (kg) | 10000 | 5500 | 3200 | 2300 | 1500 | |||
If need more information ,please feel free to contact me.
Welcome to visit our company in China!
....
