Home > Products > Truck with crane > Dongfeng 6x4 truck mounted with XCMG 10Ton crane

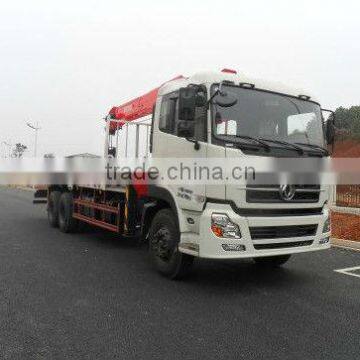

Dongfeng 6x4 truck mounted with XCMG 10Ton crane
- Any port of China
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | All rotation | |
| Rated Loading Capacity | 9065 | Rated Lifting Moment | 25T.M | |
| Max. Lifting Load | 10000 | Max. Lifting Height | 14m | |
| Span | 12m | Place of Origin | Hubei, China | |
| Brand Name | DONGFENG | Model Number | DFL1250A9 | |
| Certification | CCC,ISO9001 |
Product Description
Specifications
1.Fashion design2.Mature technology and stable performance
3.Competitive Price
4.CCC, ISO9001
Dongfeng 6x4 truck mounted with XCMG 10Ton crane
Model | Truck mounted crane | Dimension | 11540,11890 ×2490×3900(mm) |
Chassis type | DFL1250A9 | Cargo body size | 7950,8300,8200 ×2294×600, 800 (mm) |
Total mass | 24595(kg) | Approach / departure angle | 20/11 (°) |
Rated payload | 9065,9000,8765,8700, 8915,8850 (kg) | F/R suspension | 1460/3430(mm) |
Kerb weight | 15400,15700,15550 (kg) | Maximum speed | 90(km/h) |
Engine | ISDe230 30/ISDe245 30/ISDe270 30 | ||
Displacement | 6700/6700/6700(ml) | Power | 169/180/198 (kw) |
Manufacturer | Dongfeng Engine Co., Ltd. | ||
Emission standard | GB3847-2005,GB17691-2005 EURO 3 | ||
Number of the axles | 3 | Front tread | 1986 (mm) |
Wheel base | 5350+1300,5700+1300(mm) | Rear tread | 1860/1860 (mm) |
Number of the tires | 10 | Tire type | 10.00-20,10.00R20, 11.00-20,11.00R20 |
Fuel type | Diesel | Number of the springs | 20/16 |
Axle load | 6995/17600(double axels) | Cab Passengers | 2,3 |
Technical parameters of crane:
| Crane Model. | SQ10SA3 | |||||||||
| Max Lifting Weight(kg) | 10000 | |||||||||
| Max Lifting Moment(N.m) | 250000N.m | |||||||||
| Boom | Section Form | pentagon | Slewing Mechanism | Slewing Angle Range(°) | ±360 | |||||
| Boom QTY. | 4 | Slewing Speed r/MIN | 2 | |||||||
| Boom Telescope Speed(m/s) | 6.8/35 | Crane Leg | Leg Style | H Leg | ||||||
| Boom Lifting Speed(°/s) | 70/22 | Span(m) | 2.2~5.7 | |||||||
| Max Working Radius(m) | 12.3 | Hydraulic Space | Pressure (Mpa) | 24 | ||||||
| Boom Length(m) | 4.5~12.3 | Oil Tank Volume(L) | 180 | |||||||
| Max Lifting Height(m) | 13.2 | Dead weight(kg) | 3800 | |||||||
| Single Rope Allowable Tension(N) | 19600 | Matching Chassis | Above 12 tons chassis | |||||||
| Table of comparisons about lifting capacity | ||||||||||
| Working Radius(m) | 2.5 | 4 | 7 | 10 | 12 | |||||
| Rated Capacity(kg) | 10000 | 5400 | 2850 | 1200 | 970 | |||||
If need more information ,please feel free to contact me.
Welcome to visit our company in China!
....
