Dongfeng 6x2 Tractor Truck

SPECIFICATION

Model

DFL4240AX2B

Drive

Left Hand Drive

Drive model

6X2

Wheelbase

1^st-2^nd

2^nd-3rd

1700mm

2700mm

Complete Dimensions

(L×W×H)

6940×2500×3700mm, Only for reference ,should be subject to the existence.

Engine

Renault (made in China): dCi375-30,  276KW  6 Cylinder, Turbo charge, 375HPs/1900RPM, Discharge 11120ml, Euro 3 emission standard, Air-air cooling, electronic control high pressure common rail bosh pump, Diesel engine

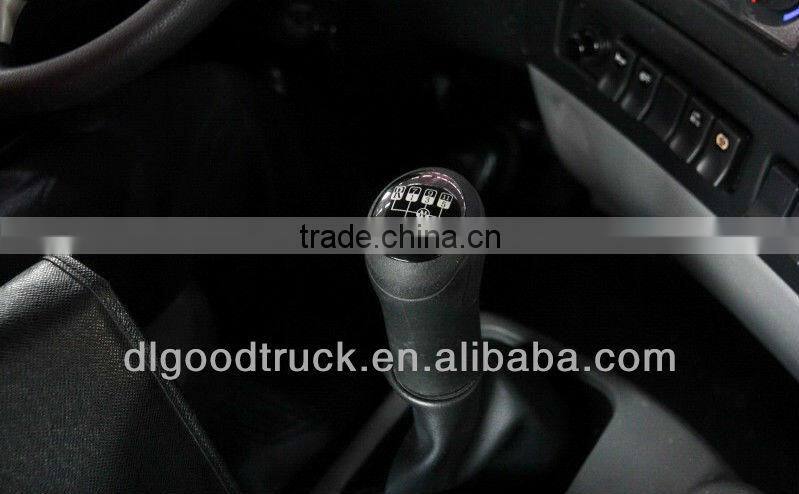

Gear box

Shanxi Fast 16JS168TA 16 forward gear position+ 2 reverse

Suspension

Leaf spring + Shock Absorber 3/3/4+3

Clutch

Φ430mm, pull-type Diaphragm spring.

Brakes

Service brake: Two-circuit air pressure braking.

Parking brake: Air pressure braking

Exhaust brake: Air pressure braking

Engine brake.

Steering

Power integral steering, with adjustable steering wheel.

Frame section(mm)

300×90×(8+5)

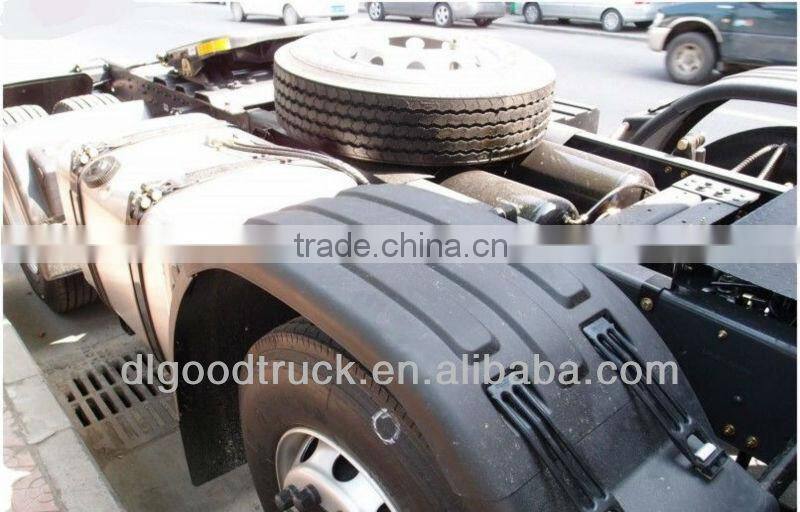

Tires

295/80R22.5

Electrical system

Alternator 28V/80A,Batteries 12V/175Ah

Fuel tank capacity

400L, aluminum tank.

curb weight

7600 kg

Max. towed mass

38200 kg

Max.total mass

50000kg

Axles loading capacity

Front

Rear

5,000kgs X2

13,000kgs single stage reducer  main speed ratio:3.42

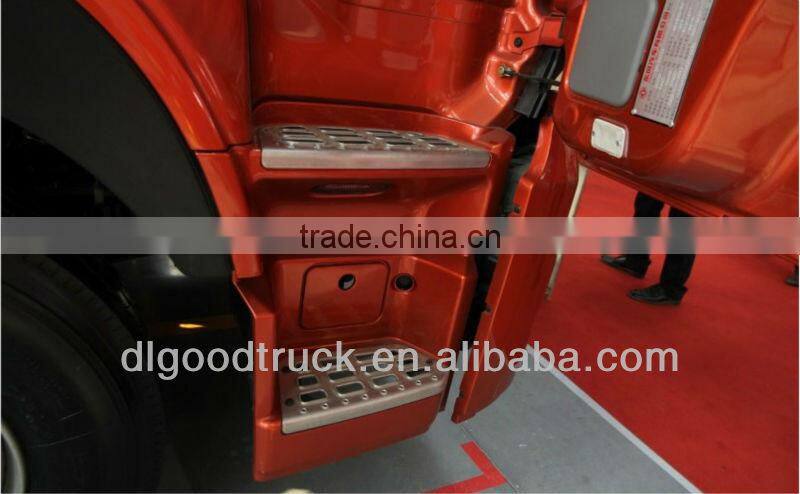

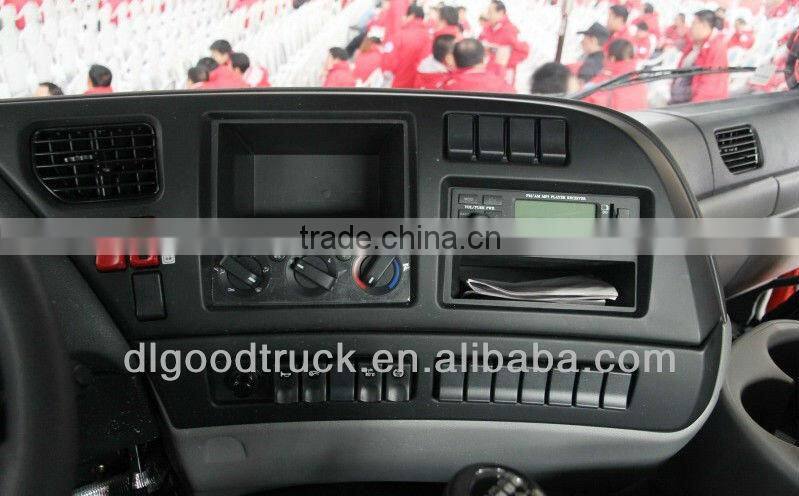

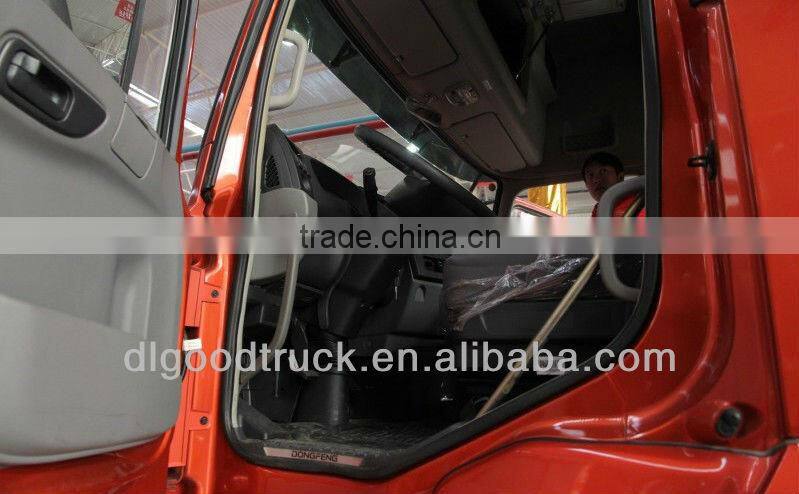

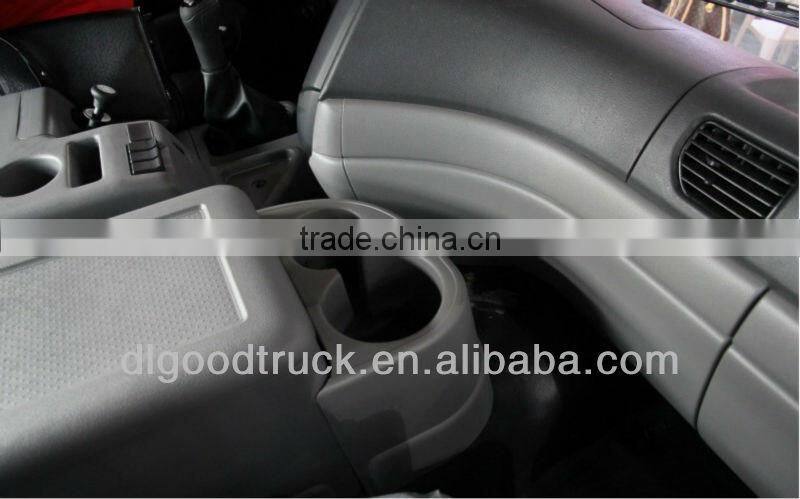

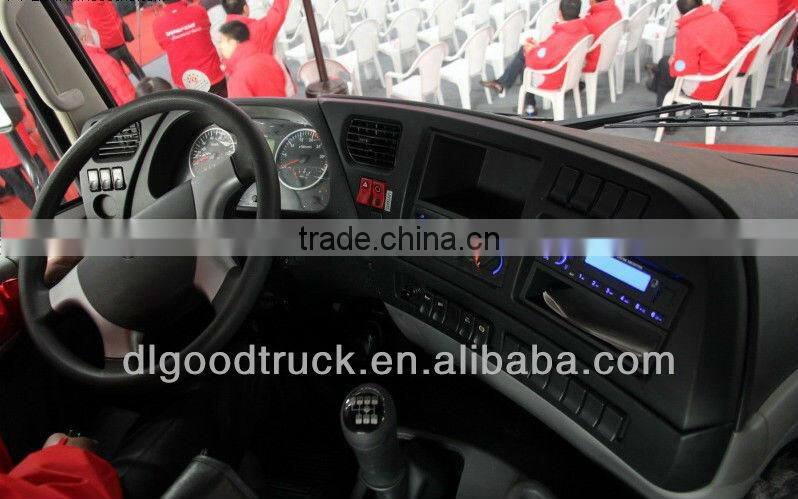

Cab

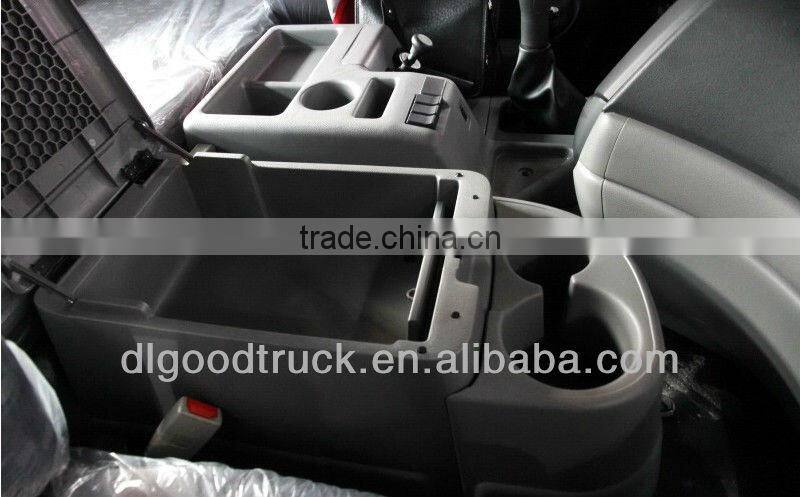

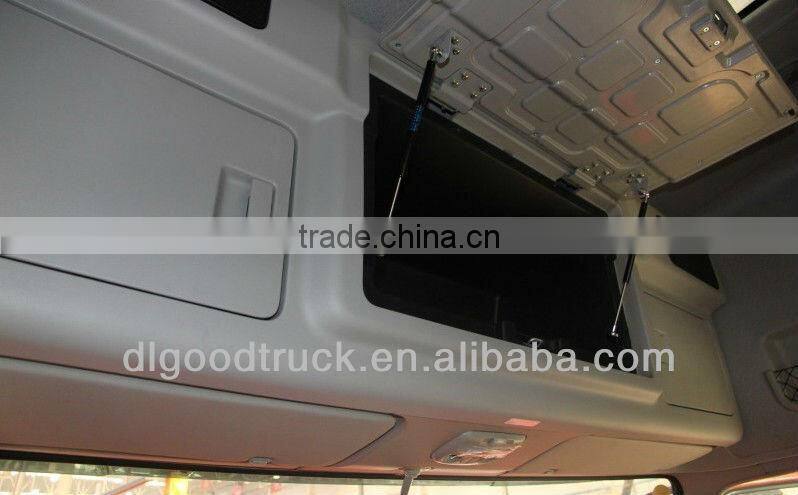

D310 high roof two sleepers, Air conditioner cab hydraulic electronic and machine overturn, full suspension, central lock, electronic window, the vehicle skylight.

Accessories

Tool box, self adjust alarm option ABS

Performance

Max. speed 90 km/h
