4 inch dual hub motor brushless motor
- shanghai
- T/T L/C D/P D/A PayPal
You May Like
-
4 inch hub motor with tire brushless hub motor
-
4 inch scooter electric motor brushless hub motor
-
4 inch single shaft brushless hub motor
-
8 inch bilateral shaft brushless gearless hub motor customized
-
8 inch brushless gearless fork spacing 58mm hub motor
-
6 inch brushless gearless dropout size 58mm hub motor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | LIJIU | |
| Usage | Electric Bicycle, Other, Electric Bicycle, Electric Scooter | Certification | CE | |
| Type | Other, gearless | Torque | 2.4N.M | |
| Construction | Permanent Magnet | Commutation | Brushless | |
| Protect Feature | Waterproof | Speed(RPM) | 732±10 | |
| Output Power | 180 | Voltage(V) | 24/36/48 | |
| Efficiency | Other |
Product Description

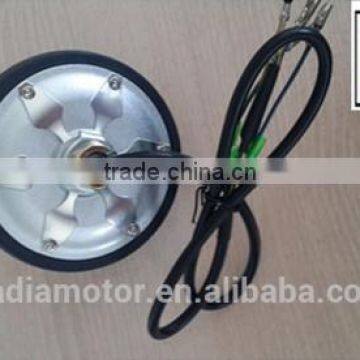

4 inch dual hub motor brushless motor
This is 4 inch dual hub motor brushless motor.
speed is 14KM/H .
Easy to operate by yourself.
If you want to DIY an electric scooter with this hub motor, we also can offer you : controller, brake lever, throttle and driven wheel.
Special DIY acceptable
Product advantage:
1,Easy to operate, steady working system and performance .
2,High quality materials make the motor keep working at high temperature.(around 40°)
Specifications
Model |
|
Rated Voltage(V) | 24/36/48 |
Rated Power(W) | 180 |
Speed Range(rpm) | 732±10 |
Dropout Size(MM) | 65 |
Brake type | electronic brake |
Cable Length(MM) | 600 |
Efficiency(%) | ≥79 |
Noise(dB) | <54 |
Hall optional
Can be customized
Warranty
We provide the motor one year guarantee from the ship date.(Vandalism cannot be guaranteed)
About Us
We focus on high performance, high quality, economic & applicable electric-motor products design and development for years.
We not only provide electric-motors but also motor kitting including controller.
Our products can apply to electric scooters, electric wheel chairs, unicycle, balancing car and mobile platform like Robot, as well as customized products.
Our well-equipped facilities and excllent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
We have experienced senior engineers in mechanical field,and have a named lab especially on new high-tech motor products applied into new fields,all of these help us to gain a good reputation in this field
