Hydraulic Lifting Platform, Hydraulic Pressure Lift Tables
- Qingdao port Shanghai port
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Weier | |
| Model Number | HLP | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 1.5kw | |
| Rated Loading Capacity | 500kg | Min. Lifting Height | 2140mm | |
| Max. Lifting Height | 6000mm | Table Size | 1650mm | |
| Overall Dimensions | 1050*2140*1650mm | Weight | 700kg | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Product Description
Brief Introduction:
Supply electric hydraulic lifting platform has good lift stability, can be adapted to frequent operation. By changing the size of the work surface, load size, lifting range of sizes, can be flexibly combined to suit the needs of different kinds of hydraulic lifts, the manual control on the basis of other devices that can be integrated to achieve automatic control, to achieve efficient operation.
Details:
Characteristics:
| Mode | Height(m) | Support weight(kg) | Platform size (length*widthmm) | Size (length*width*hightmm) | Motor(kw) | Machine weight(kg) |
| HLP0.3-4 | 4 | 300 | 1750*750 | 2150*950*1850 | 2.2 | 400 |
| HLP0.5-4 | 4 | 500 | 1750*750 | 2150*950*1850 | 2.2 | 520 |
| HLP0.3-6 | 6 | 300 | 1750*900 | 2101*1180*1200 | 2.2 | 650 |
| HLP0.5-6 | 6 | 500 | 1750*900 | 2100*950*2050 | 2.2 | 800 |
| HLP0.3-8 | 8 | 300 | 1750*900 | 2120*1180*1280 | 2.2 | 850 |
| HLP0.5-8 | 8 | 500 | 1750*1200 | 2170*1480*1500 | 2.2 | 1130 |
| HLP0.8-8 | 8 | 800 | 2000*1200 | 2600*1550*2640 | 3 | 1700 |
| HLP1.0-10 | 10 | 1000 | 2000*1200 | 2600*1550*2640 | 3 | 1800 |
| HLP0.3-10 | 10 | 300 | 2100*1200 | 2180*1480*1500 | 2.2 | 1290 |
| HLP0.5-10 | 10 | 500 | 2100*1220 | 2600*1550*2400 | 2.2 | 1700 |
| HLP0.8-10 | 10 | 800 | 2150*1260 | 2600*1600*2750 | 3 | 2380 |
| HLP0.3-12 | 12 | 300 | 2560*1500 | 3000*1500*1800 | 2.2 | 2200 |
| HLP0.5-12 | 12 | 500 | 2570*1500 | 3100*1900*2800 | 3 | 2700 |
| HLP0.8-12 | 12 | 800 | 2570*1500 | 3100*1900*2800 | 3 | 3500 |
| HLP0.3-14 | 14 | 300 | 3000*1600 | 3450*1480*1500 | 3 | 3000 |
| HLP0.3-16 | 16 | 300 | 3150*1800 | 3700*2300*2950 | 3 | 3900 |
| HLP0.3-18 | 18 | 300 | 3210*1600 | 4010*2100*3250 | 3 | 4300 |
Company Profile:
Zhengzhou Weier Mechanical Equipment Co., Ltd. is located in Zhengzhou and is specialized in manufacturing various kinds of machineries for families and industries. With an experienced and professional team, we have exported our products to many countries and regions all over the world.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products enjoy a good reputation among our customers.

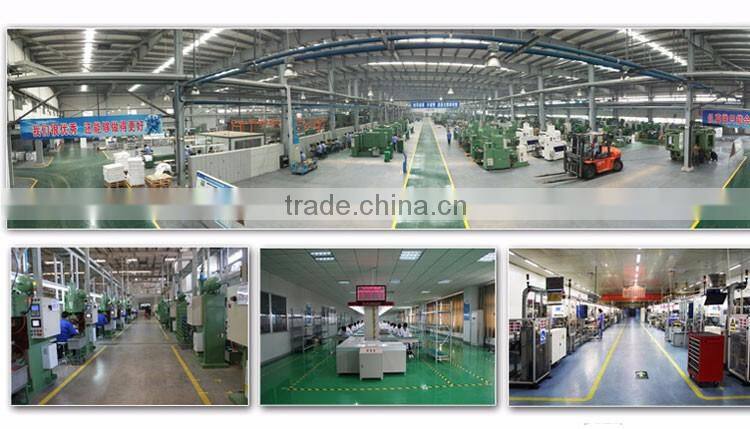

Workshop:
