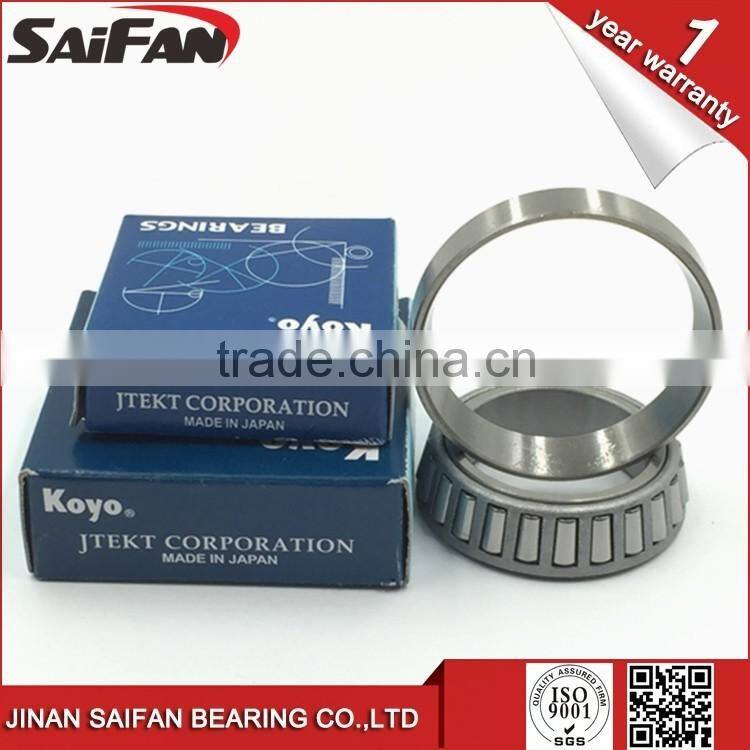

KOYO SAIFAN Agricultural Machinery Bearing 32018 KOYO Roller Bearing 32018 Competitive Price Taper Roller Bearing 32018

Brand Name

KOYO Taper Roller Bearing 32018 or according to your requirement

Item Name

KOYO SAIFAN Agricultural Machinery Bearing 32018 KOYO Roller Bearing 32018 Competitive Price Taper Roller Bearing 32018

Bearing Sizes

90*140*32mm

Bearing Weight

1.7kg

Material

Chrome Steel/Gcr15/Carbon Steel

Application

Auto, tractor, machine tool, electric   machine, water pump, agricultural machinery, textile machinery and so on

Clearance

C0,C2,C3,C4,C5

Bore Size

90mm                 Outer Diameter : 140mm

Cage Type

Brass;steel plate,nylon,aluminium alloy etc.

Bearing Package

Pallet,wooden case,commercial packaging or as customers' requirement.

Delivery Time

3-5 days acccording the quantity

Advantage

low friction,Minimum lubrication,Wear resistant,Running in not required,Requires Little attention,Dimensions relatively small,No scraping required to fit shaft,Easy replacement

Service

1)Courier tracking number
2)Documents you need
3)Customer satisfy survey
4)Any other resasonable requirements as per requested

Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the bearing to hand a combination of radial and thrust loadsm The steeper he cup angle, the greater the ability of bearing to handle thrust loads.

We can provide taper roller bearings as your requirements

Bearing No

Boundary dimensions        (mm)

Weight (kg)

d

D

T

32004 Bearing

20

42

15

0.96

32005 Bearing

25

47

15

0.115

32006 Bearing

30

55

17

0.172

32007 Bearing

35

62

18

0.227

32008 Bearing

40

68

19

0.77

32009 Bearing

45

75

20

0.329

32010 Bearing

50

80

20

0.365

32011 Bearing

55

90

23

0.55

32012 Bearing

60

95

23

0.586

32013 Bearing

65

100

23

0.627

32014 Bearing

70

110

25

0.842

32015 Bearing

75

115

25

0.887

32016 Bearing

80

125

29

1.27

32017 Bearing

85

130

29

1.33

32018 Bearing

90

140

32

1.73

32019 Bearing

95

145

32

1.8

32020 Bearing

100

150

32

1.87

32021 Bearing

105

160

35

2.38

32022 Bearing

110

170

38

3.05

32024 Bearing

120

180

38

3.2

 SOLUTION

– At the beginning, we will have a communication with our customers on their demand, then our  engineers will work out an optimum solution based on the customers’ demand and condition.
PRODUCTION

– Running in accordance with ISO 9001 quality system, the advanced production equipments,  sophisticated processing technology, strict quality management system, skilled workers and innovative technical team, make our bearings in continuous quality improvement & technology development.
QUALITY CONTROL (Q/C)

- In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.
PACKAGE

– Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.
LOGISTIC

 – Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.
WARRANTY

– We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.

High Quality Bearings, Choose Saifan.
Jinan Saifan Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong.

We are established in year 2005 and we have 10 years experience in bearing manufacture.
We mainly produce wheel hub bearings, ball bearings, roller bearings etc.



Q:What’s your after-sales service and warranty?

A: We promise to bear the following responsibility when defective product is found:

1.12 months warranty from the first day of receiving goods;

2. Replacements would be sent with goods of your next order;

3. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?

A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.

Q:What’s the MOQ?

A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q:How long is the lead time?

A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?

A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.

 We DO NOT offer free samples to end users.

Q:How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirming the PI;

4. Confirm Payment and arrange production.
