Home > Products > Outdoor Lighting > INNOVALIGHT High Power UFO Industrial Highbay 200W LED High Bay Light with 120lm/W

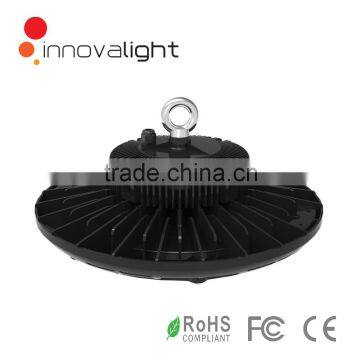

INNOVALIGHT High Power UFO Industrial Highbay 200W LED High Bay Light with 120lm/W
- 10000 Piece / Pieces per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
INNOVALIGHT 5 Years Warranty 200W 240W LowBay Light LED Highbay Light
-
INNOVALIGHT UFO Type 100-277V 150W Replace 400W HPS LED Lighting Highbay
-
INNOVALIGHT 150W IP65 Round UFO LED Highbay Light for Warehouse
-
INNOVALIGHT MeanWell Driver Stadium Lights 150W Low Bay Lighting
-
INNOVALIGHT 120Lm/W 0.95PF 150W Highbay LED Low Bay Light
-
INNOVALIGHT 99usd Promotion Brand Chip 100W LED Low Bay Light
Product Details
| LED Light Source | Philips | Warranty(Years) | 5 | |
| Input Voltage(V) | AC100-277V | Lamp Power(W) | 200 | |
| Lamp Luminous Flux(lm) | 20000-24000 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP65 | Certification | CE, EMC, LVD | |
| Place of Origin | Guangdong, China | Brand Name | INNOVALIGHT | |
| Model Number | HL-HB200W |
Product Description
200W LED High Bay Light with 120lm/W
1.Patented design: Appearance Design Patent and Utility Model Patent.
2.Patented heat dissipation system guarantees stable performance.
3. Equivalent to 600W~700W HID luminaire.
4.Top Brand Philips LED with LM80 certificated.
5.Selected constant current and voltage Mean Well driver with AC90-305V to fit most of different applications.
6.LED efficacy>130lm/W, system efficacy >110lm/W.
7.Aluminum alloy housing and electrostatic sprayed surface reaches good resistance to corrosion, complying with UL & CUL standard.
8.IP65 waterproof.
9.Easy installation and maintenance.
10.Dimming, Dali control and Microwave sensor functions optional.
11.Long lifetime up to 50,000hrs, 5 year warranty.
| Description | ||||
| Model NO. | HL-HB100W | HL-HB150W | HL-HB200W | HL-HB240W |
| LED power | 100w | 150w | 200w | 240w |
| Working voltage | 100-277V | 100-277V | 100-277V | 100-277V |
| Driver | MeanWell | MeanWell | MeanWell | MeanWell |
| Luminous flux | 10000-12000LM | 15000-18000LM | 20000-24000LM | 24000-28800LM |
| Beam angle | 110° | 110° | 110° | 110° |
| Cri | 80 | 80 | 80 | 80 |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| IP Grade | IP65 | IP65 | IP65 | IP65 |
| Size | D399*H176mm | D399*H176mm | D399*H191mm | D399*H191mm |
Installation:
1) Cut off power before operation;
2) Knowing the inside diameter of the Circular Ring, then choose suitable hook for the lamp;
3) Fix the hook before installation and enable it to support over 3 times weight of the lamp;
4) Connect the lamp with hook and make it safe;
5) Connect the power wire: Match brown wire with “L”, Blue wire with “N”, Green and Yellow wire with “G”; Then light up the lamp.
Warehouse, airports, Exhibition centers, Shopping malls, Supermarkets, Stadiums, Toll stations, Subways, and other indoor and outdoor high ceiling applications.
After-sales service
1.3 years warranty
2.Complain-Rely will be in 24 hours
3.Any help needed in China please call us(24 hours)
:Carrie-Innovalight
Contact Us
- Foshan Innovalight Electronics Co., Limited
- Contact nameChris Chen Chat Now
- Phone86-757-82580041
- Address4th Floor No.235 Lianjiang Yi Road Zhangcha Chancheng District, Foshan, Guangdong
