Home > Products > Lighting Aceesories > INNOVALIGHT Best Selling Products Smart Controller DMX512 Wall Mounted Controller

INNOVALIGHT Best Selling Products Smart Controller DMX512 Wall Mounted Controller

FOB Price

US$ 1 - 21.8 / Piece

1 Piece(Min. Order)

Port Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	INNOVALIGHT
Model Number	INN-DMX512-D6	Type	Remote Control
Max. Load Power	96W/192W	Voltage	Other, DC12V~DC24V

Product Description

Specifications

DMX512 Wall Mounted Controller
1.Fool type operation,easy to use
2.Support DMX 512 output,,control DMX lamps

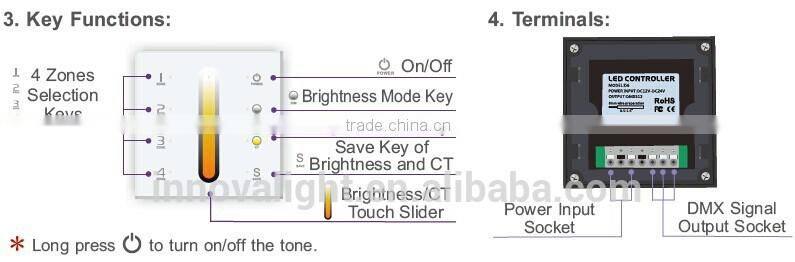

3.Support 4 zone

DMX512 Wall Mounted Controller

Product Description

D series touch panel controller absorts the best controlling technology from other manufacturers to provide users with more superior items.

1.Simple fashion and decent appearance design.

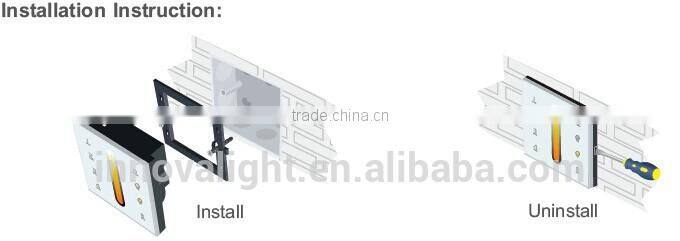

2.Unique structure,super easy to install/remove.

3.Support DMX 512 output(only D5,D6,D7,D8),control DMX lamps.

4.Support 4 zones(just D5,D6,D7,D8),different zones can be in different control.

5.High accuracy touching IC+special post-processing,the touching accuracy is highly strengthened.

6.Fool type operation,easy to use.

7.Touching along with chord music&LED indicator.Visual&Auditory&Touch 3 layers to fell the light-changing synchronously.

8.Pioneered T-PWM dimming technology+4096 gray scale makes an almost perfect dimming/color-mixing performance.

Technology

Multi-zone series

Model NO.	INN-DMX512-D5	INN-DMX512-D6	INN-DMX512-D7	INN-DMX512-D8
Input Voltage	DC12V~DC24V	DC12V~DC24V	DC12V~DC24V	DC12V~DC24V
Output signal	DMX512	DMX512	DMX512	DMX512
Control mode	4 Zones control	4 Zones control	4 Zones control	4 Zones control
Gray scale level	4096	4096×4096	4096×4096	4096×4096×4096×4096
Working temperature	D -20℃~60℃	D -20℃~60℃	D -20℃~60℃	D -20℃~60℃
Dimensions	L86×W86×H36mm	L86×W86×H36mm	L86×W86×H36mm	L86×W86×H36mm
Package Size	L112×W112×H48mm	L112×W112×H48mm	L112×W112×H48mm	L112×W112×H48mm
Weight (N.W.)	210g	210g	210g	210g

Application

D series touch panel controllers(D1-D8) are wall-mounted LED controlelrs, wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Among them, D5, D6, D7 and D8 are DMX512 control panels,used for DMX512 lamps. In a word ,D series could satisfy the controlling demand for all kinds of LED lighting products.

Our Services

After-sales Services:

1.3 years warranty

2.Complain-Rely will be in 24 hours

3.Any help needed in China please call us(24 hours)
