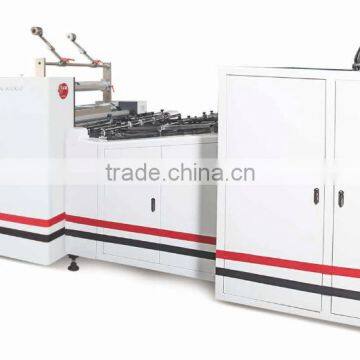

HIGH SPEED AUTOMATIC THERMAL FILM LAMINATING MACHINE HM-920YTB

Applications:

It adopts glueless film or pre-glued film for paper lamination

Features:

 Automatic laminator is newly developed for the lamination of glueless film or pre-glued film and paper. The machine realizes complete automation to paper feed, lamination, paper cut, paper receiving and temperature control. The electrical and pneumatic devices are controlled by PLC (programmable control) system, and can be operated easily via touch screen. Heating roll adopts built-in oil heating system. To meet users’ different applications, paper receiving unit is equipped with not only vibrating receiving table but also winding roller. The laminated paper can be winded automatically if they do not need to be cut.

This machine centralizes the features of high automation, high precision of lamination, humanized configuration and easy operation, and is the best choice with high cost performance for large and medium-size enterprises.

Configuration:

1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. And paper can be added even if the machine is kept running, which improves working efficiency so much.

2. Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.

3. Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.

4. Conveying table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision.

5. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.

6. Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.

7. Air expansion shaft releases film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient.

8. The combination of air expansion shaft and braking device can adjust film release tension and release speed.

9. Cutting unit and paper receiving unit can be easily moved away from laminating unit. This special design makes the machine maintenance more convenient.

10. Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the size of workable paper on the touch screen.

11. Paper receiving unit is furnished with not only vibrating receiving table but also winding roller. After cut, the laminated paper will be sent automatically to vibrating receiving table and be put into order. If laminated paper doesn’t need to be cut, it can be winded automatically by winding roller.

Technical Parameters:

Terms of payment

30% of total contract value by T/T as down payment

70% of total contract value before delivery

Other Related Information

The charge of installation ,adjustment and air ticket is not included in the price

The subsidy of an engineer is USD100 per day if installation service is needed

Shippment:Suitable for the sea transportation

Our guarantee is one year(during the period of quality guarantee,we supply the spare part in free for replacement)

Validity is one month

 Standard Export Packing with wood pallet

To ship within 30 days after payment ain advance

Latest Technology.(International latest technology)

High Precision Processing.(12 sets of CNC machining center, more than 50 sets of processing machines.)

Standardization Production. (6S management)

High-end Electric Appliance.(Japan Omron PLC, Japan SMC Pneumatic Components, France Schneider Electrical Components, Japan Yaskawa Servo Motor, Italy GMG Motor, Germany P+F ultrasonic checker, America LEUZE Sensor etc. First class quality, European UL and CE Standard.)

First-class Performance.(Power save; larger size, faster speed, and higher precision)

Advanced after-sales service.(over 50 countries and regions such as Europe, America, Africa, the Middle East and Southeast Asia etc.)

Distinctive Customer Service.(Every parts is marked with serial number)
