Home > Products > Commercial Lighting > INNOVALIGHT Cost-effective 10W 94mm Cutout SMD2835 LED Downlight
INNOVALIGHT Cost-effective 10W 94mm Cutout SMD2835 LED Downlight
US$ 6 - 7.6
/ Piece
10 Pieces(Min. Order)
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
INNOVALIGHT 5W 0.5PF LED SMD2835 Ceiling Recessed Downlight
-
INNOVALIGHT 9W Sharp COB IP65 Fire Rated Downlight
-
INNOVALIGHT UK Popular Die-casting Aluminum Fire Rated Downlight
-
INNOVALIGHT Aluminum Die Casting GU10 Fire Rated Downlights
-
INNOVALIGHT IP65 FIREPROOF FITTING FIREPROOF LED LIGHT ALUMINUM DIE CASTING LIGHTING FIXTURE FIRE RATED DOWNLIGHT Quality Choice
-
INNOVALIGHT Pressing Metal GU10 Lamp Holder Fire Rated Downlights
Product Details
| LED Light Source | SMD2835 | Warranty(Years) | 3 | |
| Input Voltage(V) | 85-265V | Lamp Power(W) | 10 | |
| Lamp Luminous Flux(lm) | 950 | Lamp Luminous Efficiency(lm/w) | 85 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP33 | Certification | CE | |
| Model Number | LD04-T010W | Place of Origin | Guangdong, China | |
| Brand Name | INNOVALIGHT |
Product Description
10W SMD2835 LED Downlight
Product Description
1.Wide range of input voltage and frequency;
2.Constant current and isolated power driver;
3.Advanced Led thermal managing, low brightness attenuation;
4.No flickering ,no startup delay, also energy saving more than 60% than conventional lamp;
5.Modular structure, easy to maintenance and replacement
Technology
1.Use die-casting aluminum as main-body material.
2.Use high light transmittance PC as cover material.
3.Unique and beautiful looking design.
4.Good heat dissipation performance guarantee the long life span.
5.Use LED driver, high effective and energy-saving.
| Model NO. | LD03-T05W | LD04-T010W | LD05-T015W | LD06-T020W | LD08-T30W |
| Wattage | 5W | 10W | 15W | 20W | 30W |
| Voltage | 170-265V | 170-265V | 170-265V | 170-265V | 170-265V |
| Luminous flux | 420-450Lm | 950-1000Lm | 1350-1500Lm | 1800-2000Lm | 2800-3000Lm |
| CRI | 80 | 80 | 80 | 80 | 80 |
| PF | 0.5 | 0.9 | 0.9 | 0.9 | 0.9 |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Beam angle | 120° | 120° | 120° | 120° | 120° |

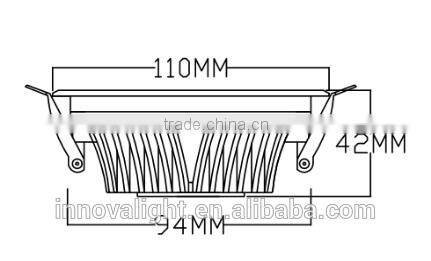

| Size | D94*H42mm | D110*H42mm | D135*H50mm | D195*H60mm | D225*H66mm |
| Cutout size | 72mm | 94mm | 114mm | 164mm | 195mm |

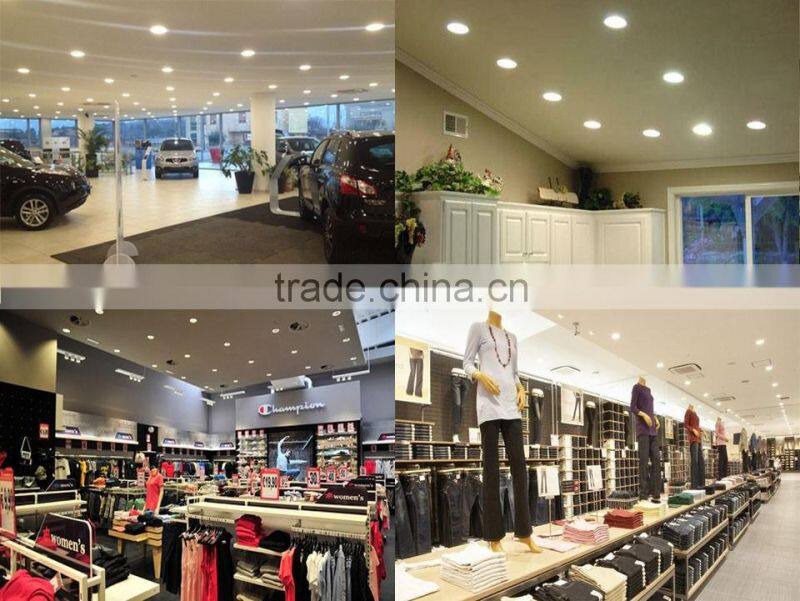

Application
Hotels,Meeting rooms;Factories or offices;
Commercial lightings;Residential or public facilities;Schools;Hospitals;
Everywhere for energy-saving and high CRI lighting area.
Our Services
After-sales Services:
1.3 years warranty
2.Complain-Rely will be in 24 hours
3.Any help needed in China please call us(24 hours)
:Carrie-Innovalight
