G80 lifting chain
USD $1.3 - $1.8
/ Ton
1 Ton(Min.Order)
- 600 Ton / Tons per Month
- Qingdao Seaport
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Mingyang | |
| Structure | Welded Chain | Function | Other, lifting chain | |
| Material | Alloy | Standard or Nonstandard | Standard |
Product Description
Specifications
G80 alloy steel link chain1) Standard: NACM84/90
2) Quality level: ISO 9000 certificate
3) Round chain, high test, ASTM80

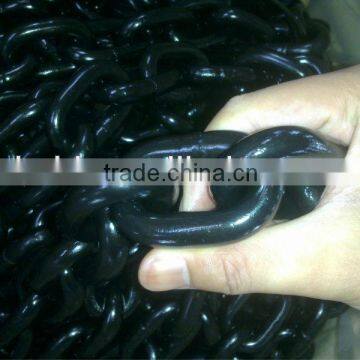

G80 alloy steel link chain
1) Standard: NACM84/90
2) Quality level: ISO 9000 certificate
3) Round chain-high test,-ASTM-80
4) Material: 20MN2
5) Surface finish: zinc plated or black finished
6) Engrave "G80" every 50cm or a customized length
7) Packing in steel drums (about 500kgs/drum), and then in steel palleted
| C% | Si% | Mn% | S% | Cr% | Ni% | Cu% | Mo% |
| 1.07-0 | 1.07-0 | 1.40-1 | 0.006-0 | 0.030-0 | 0.005-0 | 0.007-0 | 0.002-0 |
| 0.24 | 0.37 | 0.8 | 0.011 | 0.044 | 0.1 | 0.015 | 0.003 |
| Size | DIA | Inside Length | Inside Width | Working Load Limit | Proof Test(min) | Breaking Force Min | Weight per meter |
| 6mm | 18mm | 8.6mm | 1150kg | 22.5kn | 45kn | 0.80 | |
| 1/4 | 7mm | 21mm | 9.0mm | 1570kg | 30.8kn | 61.6kn | 1.05 |
| 5/16 | 8mm | 24mm | 12mm | 2050kg | 40.3kn | 80.6kn | 1.40 |
| 9mm | 27mm | 12mm | 2500kg | 50.8kn | 102kn | 1.80 | |
| 3/8 | 10mm | 30mm | 14mm | 3200kg | 63kn | 126kn | 2.20 |
| 1/2 | 13mm | 39mm | 19mm | 5400kg | 107kn | 214kn | 3.70 |
| 1/2L | 13mm | 82mm | 24mm | 5400kg | 107kn | 214kn | 2.90 |
| 5/8 | 16mm | 48mm | 23mm | 8200kg | 161kn | 322kn | 5.50 |
| 3/4 | 20mm | 60mm | 28mm | 12500kg | 250kn | 500kn | 9.00 |
| 7/8 | 22mm | 66mm | 29.5mm | 15000kg | 300kn | 600kn | 10.90 |
