I. Overview

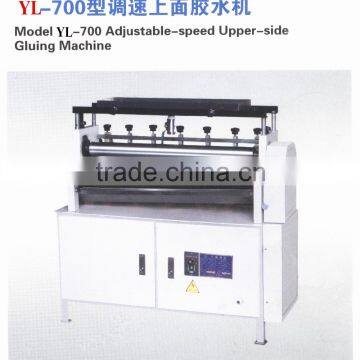

Model No.YL-700/1000 Speed Gluing Machine is special equipment for paper printing and packaging industry Gluing. This Machine design is very novel, make with meticulous care, compact structure, easy corrosion parts adopt the stainless steel, delicate appearance and durable, smooth transmission and easy to adjust, suitable for all kinds of different thickness of the paper.

II. Installation and Debugging

  1.Installation : The machine must work on horizontal surface. It can not have serious tilt phenomenon, otherwise it will

     make adhesive solution to gather at one end and out of plastic boxes outside

  2.Commissioning: Before driving, you should turn the machine in manual way. Without any exception, you can plug

     (220 v, 50 hz) turn motor speed switch from slow to fast rotation.

  3. Debugging

  a. The adjustment of you to bring the thickness of the plastic roller rubber: Please turn the regulating handle rubber

      thickness (around this handle each one), make the belt, rubber roller moved back and forth between glue roller

      clearance changes, so as to bring up the full between the thickness of the rubber, rubber thickness adjusting range

      0.03 0.1 mm.

  b. Adjust your pressure paper roll: Please turn the pressure roller adjusting handle (a) around each move up and down the roll, so as to bring up the paper clearance.

Note: This gap should be greater than the rubber thickness adjustment above at least. Otherwise it will lead to pressure paper roller with adhesive.

III. Dismantling of glue box

           The glue box structure to the parallelogram structure.You just need to handle gear on the fixed frame lift counterclockwise direction move gel cassette handle gently remove the plastic box, on the other hand will handle clockwise after   push up reach the designated position fixed frame automatically gets stuck, complete plastic box installation.

IV. Matters needing attention and Maintenance

a. When you use the motor speed control switch, you should first will be zero speed control knob.Then slowly varied

        from low to high speed rotating, until you satisfied.

b. For each point of relative movement, you must often add lubricating oil.

C.In every time after work, you must clear residual adhesive solution, washing machine parts to prevent corrosion.

d. For you equipment use safety, please return this machine connected to the ground.

e.The appliances and motor parts of the machine fault, if any, must be maintenance by after-sales service

   personnel.Other personnel shall not remove, the manufacturer will not warranty.

Product warranty

     First of all thank you for using our products!The factory shall practise a system of after-sale guarantee.In addition to the  user  for  improper  operation  and  human touch loss, our company shall guarantee to provide warranty equipment.(warranty period is one year, will be subject to warranty. Warranty single in two copies, a customer retention.)Warranty, you are under the condition of normal use, if the machine fails, please contact the factory, the factory will guarantee the information provided in your retained provide tracking service for you.

Matters needing attention

1. Please must commissioning when buy.Such as after commissioning qualified, improper for you to use two coating roll bending and the bottom two roll (middle), for example: involved in foreign body (including towel machine will rag involved in), etc., result in uneven coating machine to use, our factory will not warranty.

  2. The electrical part of the equipment (including motor and governor) if there is any faults in the use, please immediately inform the factory, the factory will provide maintenance services.Such as to remove the factory will not guarantee.

FEATURES

It is professional equipment for gluing the paper. It adopts the stainless steel and steel alloy to fracture to anti-corrosion, the adj u stable motor to satisfy the requirements from different papers.It has the merits of beautiful appearance,simple structure, balance transmission,convenience repair etc.
