If you confirm the detailed requirement, dimension and OK with our quotation, we will make the tent solution including plans and drawings, 3D rendering,etc according to your requirement within 3 working days.

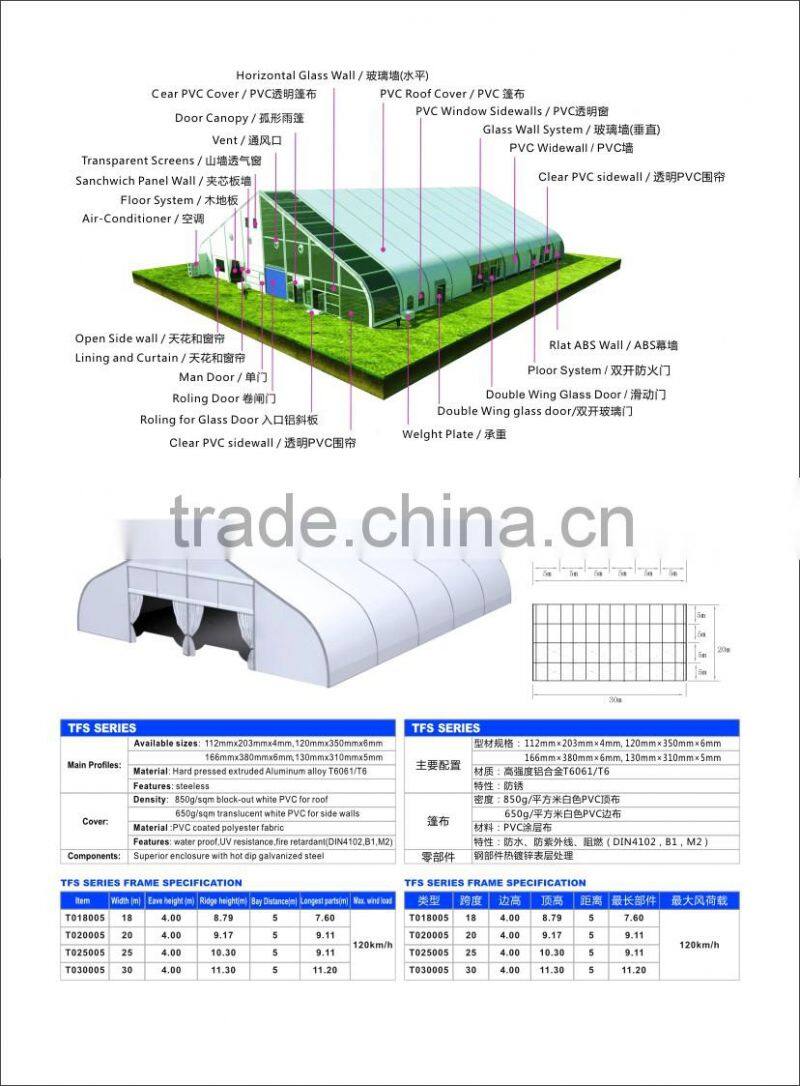

  Specification for TFS curve tent

Main frame structure: hard pressed extruded aluminum 6061/T6(15HW, European standard) which                                          life span is more than 20 years.

Fabric covering: high quality double PVC coated polyester fabric, 100% waterproof, fire retardant                                   (DIN4102 B1), M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

Steel parts: strong hot-dip galvanized steel.

Allowed temperature condition: -30 degree Celsius to +70 degree Celsius.

Wind load: max. 100km/h (can be reinforced).

Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design).

Easy to be assembled and dismantled, movable.

No pole inside, 100% available interior space.

 Fixing way for pagoda tent

Optional accessory for pagoda tent

Covering: colorful cover, transparent cover, inflatable roof cover

Windows: round or square clear PVC window, mesh window, glass window for glass wall

Wooden flooring system: VIP cassette flooring, simple cassette flooring

Doors: double-swing glass door, single-swing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)

Wall: soft polyester fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall

Fixing way: ground anchors, weight plate, expandable screw

Rain Gutter: inner roof beam rain gutter or rain gutter between two similar tents

Other Optional Items: draping, table, chair, lighting, A/C, carpet, installation tools etc.

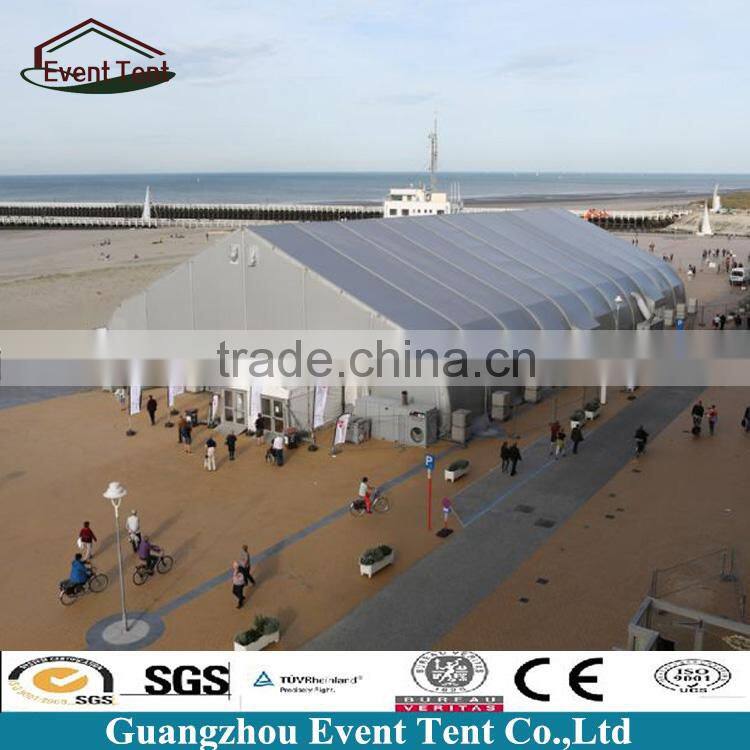

20m span aluminum outdoor curve TFS tent for sale

Packing for TFS tent

Certification

Contact details

Our customers

Can you print our logos on the tent?

Yes. Customized logos can be printed on the tent fabric according to your requirements.

Is that factory price?

Yes. We assure you all prices are factory price.

Does your tent be able to install repeatedly?

Our tents can be assembled and dismantled and repeatedly with small transportation distance. The lifespan of aluminum framework can reach 15-20 years, and 5-8 years for PVC fabrics depending on different conditions of usage.

What documents are available?

A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Customs declaration is provided. We provide one-stop service for you.

What size tent is necessary for your special event?

You must determine tent usage first. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person. If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.

Has your tent product been certified?

Yes.Our tent product has passed the engineering tests. The PVC fabric used for roof covers and sidewalls has passed the fire tests.

Is your tent strong and stable enough? How about the wind loading?

Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). So our tent structure is safe and strong and can resist wind speed up to 100 km/hr.

How long is the warranty period?

Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem. Not including man-made damage or accident damage.
