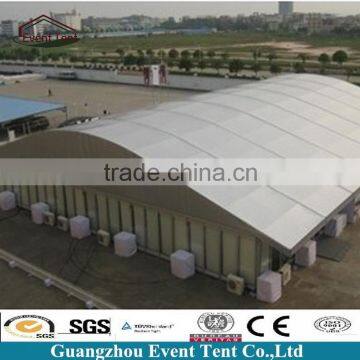

New style arch large aluminum alloy yurt tent for museum

New style arch large aluminum alloy yurt tent for museum

Specification for arch tent

Main frame structure: hard pressed extruded aluminum 6061/T6(15HW, European standard) which                                          life span is more than 20 years.

Fabric covering: 850g/sqm high quality double PVC coated polyester fabric, 100% waterproof, fire                                  retardant (DIN4102 B1), M2, CFM, UV resistant, tear resistant, self-cleaning                                            ability, etc.

Steel parts: strong hot-dip galvanized steel.

Allowed temperature condition: -30 degree Celsius to +70 degree Celsius.

Wind load: max. 120km/h (can be reinforced).

Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design).

Easy to be assembled and dismantled, movable.

No pole inside, 100% available interior space.

Optional accessory for  arch tent

Covering: colorful cover, transparent cover, inflatable roof cover

Windows: round or square clear PVC window, mesh window, glass window for glass wall

Wooden flooring system: VIP cassette flooring, simple cassette flooring

Doors: double-swing glass door, single-swing glass door, glass fire door, aluminum door, rolling                       shutter(automatic or manual)

Sidewall: soft polyester fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall

Fixing way: ground anchors, weight plate, expandable screw

Rain Gutter: inner roof beam rain gutter or rain gutter between two similar tents

Other Optional Items: draping, table, chair, lighting, A/C, carpet, installation tools etc.

 Fixing way for  arch tent

Packing for arch tent

 Application for  arch tent

Certification

Contact details

Event Tent tent series

A frame tent: clear span width from 6m to 60m.

Pagoda tent: size from 3x3m to 15x15m.

Polygon tent: side length from 3m to 15m.

High peak tent: combined by different style tents.

Curve tent: Special style tent.

Stretch tent: galvanized steel pole tent.

Double decker: 2 levels marquee tent.

Geodesic dome tent: diameter from 5m to 40m.

Inflatable dome tent: diameter from 5m to 40m.

Company profile

Guangzhou Event Tent Co., Ltd. was founded in March 2014, total investment USD0.8 million. It’s a comprehensive enterprise of new style outdoor tent automatic production, exhibition activity & competition one stop planning & execution, quick warehouse logistic modular construction. And it’s the member of China Shading Device Association.

The management team of Event Tent has more than 10 years experience of manufacture and service. The business including the renting and sales of temporary warehouse and cargo transfer storage warehouse solution, temporary removable workshop, temporary large exhibition hall, celebration activity tent, and the high standard tents used in the important project & sports event.

Factory covers the size of 4000sqm. With the impeccable production equipment system. The factory operation accords with ISO9001:2008 system. The monthly production capacity is 20000sqm Our products’ construction structure, wind load, snow load, pressure load passed the testing of Chinese 1st class registered structural engineer and obtained CE certification. All the parts we are using passed detection, accord with the safety standard. The tent covering reach to Europe DIN4102 B1,M2 fire retardant standard.

We always abide by the operation principle of “to the quality of survival, to the innovation of development”, and build up the company operation mechanism step by step to adapt the market demand. We pay attention to business administration, build up impeccable rules and regulations. We sincerely cooperate with clients, import advanced technology, equipment and scientific management mode. Work hard to build up and maintain long term cooperation ship with every client.

Tel: +86-20-31074187

Address: No.455 Guangzhu Road Dagan Town Nansha District Guangzhou.

Drive: 1km to the exit of Tingjiao of JingGuangAo highway, Miaobeisha of Nansha port highway

Our customers

FAQ

Can you print our logos on the tent?

Yes. Customized logos can be printed on the tent fabric according to your requirements.

Is that factory price?

Yes. We assure you all prices are factory price.

Does your tent be able to install repeatedly?

Our tents can be assembled and dismantled and repeatedly with small transportation distance. The lifespan of aluminum framework can reach 15-20 years, and 5-8 years for PVC fabrics depending on different conditions of usage.

What documents are available?

A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Customs declaration is provided. We provide one-stop service for you.

What size tent is necessary for your special event?

You must determine tent usage first. If a tent is being used for dining purposes and round tables are being used allow 10-12 square feet per person. If banquet style tables are being used allow 8-10 square feet per person. If the purpose is for cocktail service allow five to six square feet per person. Contact us for all your specific questions and more information on tent types.

Has your tent product been certified?

Yes.Our tent product has passed the engineering tests. The PVC fabric used for roof covers and sidewalls has passed the fire tests.

Is your tent strong and stable enough? How about the wind loading?

Yes.The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). So our tent structure is safe and strong and can resist wind speed up to 100 km/hr.

How long is the warranty period?

Guarantee one year. During the warranty period, we shall repair or replace the damaged part accordingly because of any damage due to quality problem. Not including man-made damage or accident damage.

Tell me your tent size, we can supply you CAD drawing within 3 days! for free!
