Home > Products > Concrete Pump Hose > Spray Concrete Pump Hose Shotcrete equipment parts
Spray Concrete Pump Hose Shotcrete equipment parts
- 100000 Meter / Meters per Month
- Xingang Qingdao port shanghai
- T/T Credit Card PayPal
You May Like
-
Concrete Delivery Pipe Concrete Pump Parts
-
High Pressure Hose Flexible Shotcrete Hose for Concrete pumps
-
Export Quality Durable Rubber Hoses Porous Pipe Concrete Pumping Hose
-
6 Inch Flexible Rubber Water Pump Concrete Hose
-
6 Inch Big Diameter Pump Rubber Hose with High Pressure
-
Wide Varieties Steel Wire Concrete Pump Rubber Hose
Product Details
| Place of Origin | Hebei, China | Brand Name | YATAI or OEM | |
| Model Number | 38-204MM |
Product Description

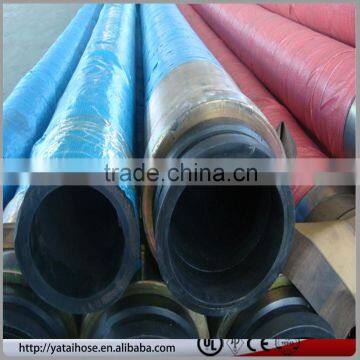

Spray Concrete Pump Hose Shotcrete equipment parts
WHAT IS THE PRODUCT DETAIL INFORMATION?
Structure: tube, reinforcement and cover.
Tube: resistant to abrasion synthetic rubber, principally chloroprene rubber.
Reinforcement: multiple layers of high tensile steel wires.
- Cover: resistant to abrasion, weather, ozone and corrosion synthetic rubber, mainly chloroprene rubber.
- Temperature range: -30°C to +80°C.
- Inner diameter: 1-1/2" to 8" (38mm to 204mm).
- Working pressure: 85 bar.
- Burst pressure: 200 bar.
- Bend radius: 200mm to 570mm.
Type | I.D (mm) | O.D (mm) | Working pressure (bar) | Burst pressure (bar) | Min ben radius (mm) | Weight (kg/m) |
2 | 51 | 68±1.5 | 85 | 200 | 200 | 2.8 |
2.5 | 64 | 85±1.5 | 85 | 200 | 250 | 4.0 |
3 | 76 | 102±1.5 | 85 | 200 | 270 | 6.0 |
3.5 | 89 | 116±1.5 | 85 | 200 | 290 | 7.5 |
4 | 102 | 130±1.75 | 85 | 200 | 300 | 9.2 |
5 | 127 | 158±2 | 85 | 200 | 360 | 11.7 |
6 | 152 | 186±2 | 85 | 200 | 570 | 17.0 |
Spray Concrete Pump Hose Shotcrete equipment parts is mainly used to transfer highly abrasive materials, such as concrete, cement and plaster in many large projects, such as building, bridge, tunnel, beam and swimming pool.
WHY CHOOSE US?
Our advantage:
- The tube of Spray Concrete Pump Hose Shotcrete equipment parts is made from high quality chloroprene rubber, which has excellent abrasion resistance.
- The reinforcement of Spray Concrete Pump Hose Shotcrete equipment parts is made from multiple layers of high tensile steel wires, and the steel wires we use meet international standard.
- The connectors of Spray Concrete Pump Hose Shotcrete equipment parts are treated with carburization, making the abrasion resistance performance improve greatly.
- The connections between connectors and hoses are very smooth, no steps.
- Free Sample is avaliable
- Shotcrete hose Fitting can be offer
- Certification:ISO,CCS
Our Factory:
Concrete Pump Hose Material:
Concrete Pump hose Processing Procedures:
Exhibition and Visit factory:
Q1:Payment Term:
A:Usually, 30%T/T in advanced, balance be paid against scan copy of B/L within 7 days for Spray Concrete Pump Hose Shotcrete equipment parts
Q2: How many do you accept for min order?
A:Yes. only for 20m min order.
Q3:Can you produce the hose with our own brand?
A:Yes.it is available for Spray Concrete Pump Hose Shotcrete equipment parts
Q4:What is the warrantee period?
There is 1 year warranty from date of EX-factory
OEM Service is available.
We will reply you within 24 Hours.
