Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose
- Any port
- T/T Credit Card PayPal
You May Like
-
3/8 Inch Good Quality Flexible Air Hose China Manufacturer
-
China Manufacture 1Inch Good Quality Flexible Air Hose
-
High Temperature Flexible Hot Water Rubber Hose
-
High Pressure Black Rubber Hoses for Water Air
-
High Pressure Hot Water Resistant Flexible Hose Rubber Water Hose
-
Cloth Surface Hydraulic Oil Cooler Hose
Product Details
| Place of Origin | Hebei, China | Brand Name | YATAI | |
| Model Number | SAE/DIN |
Product Description

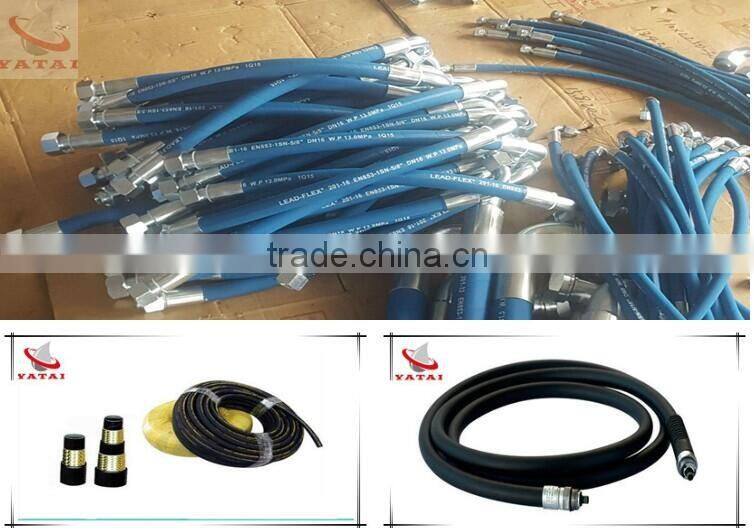

Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose
Product Application of Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose
Our products are popular in the demestic market, at the same time, we enjoyed a good reputation from the foreign customers.

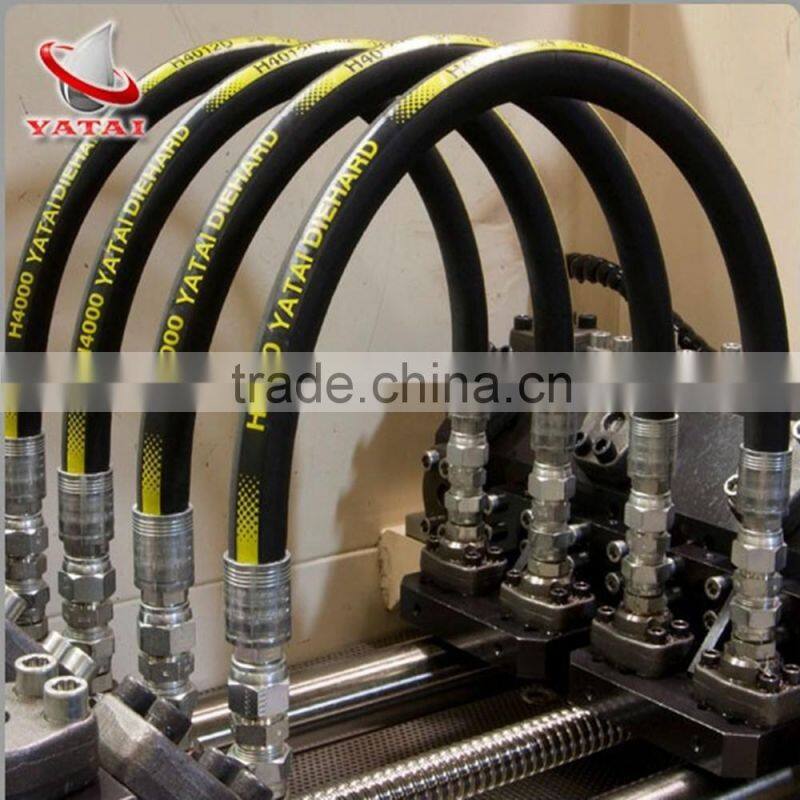

This hoses are extensively used to mining, metallurgical, oil, project machinery, chemical, agriculture field. E.g. Mine hydraulic fluid, oil exploration, crane, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.
SPECIFICATIONS FOR SAE 100 R1 AT | ||||||||
DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Min.Bend Radius | Weight | Length |
5 | 3/16 | 9.5 | 12.5 | 25 | 100 | 89 | 0.19 | 50/100 |
6 | 1/4 | 11.5 | 14.1 | 22.5 | 90 | 102 | 0.21 | 50/100 |
8 | 5/16 | 12.7 | 15.7 | 21.5 | 85 | 114 | 0.24 | 50/100 |
10 | 3/8 | 15.1 | 18.1 | 18 | 72 | 127 | 0.33 | 50/100 |
13 | 1/2 | 18.3 | 21.5 | 16 | 64 | 178 | 0.41 | 50/100 |
16 | 5/8 | 21.4 | 24.7 | 13 | 52 | 203 | 0.45 | 50 |
19 | 3/4 | 25.4 | 28.6 | 10.5 | 42 | 241 | 0.58 | 50 |
25 | 1 | 33.3 | 36.6 | 8.8 | 35 | 305 | 0.88 | 50 |
32 | 1 1/4 | 40.5 | 44.8 | 6.3 | 25 | 419 | 1.23 | 20-40 |
38 | 1 1/2 | 46.8 | 52.0 | 5 | 20 | 508 | 1.51 | 20-40 |
51 | 2 | 60.2 | 65.9 | 4 | 16 | 635 | 1.97 | 20-40 |
Main Features of Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose
Tube: oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperanture range: -40°c to +100°c
Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose

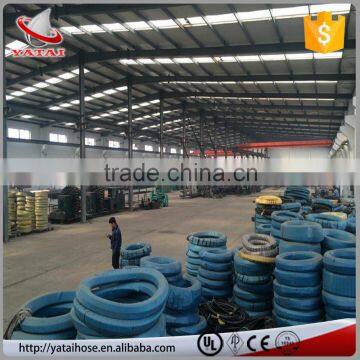

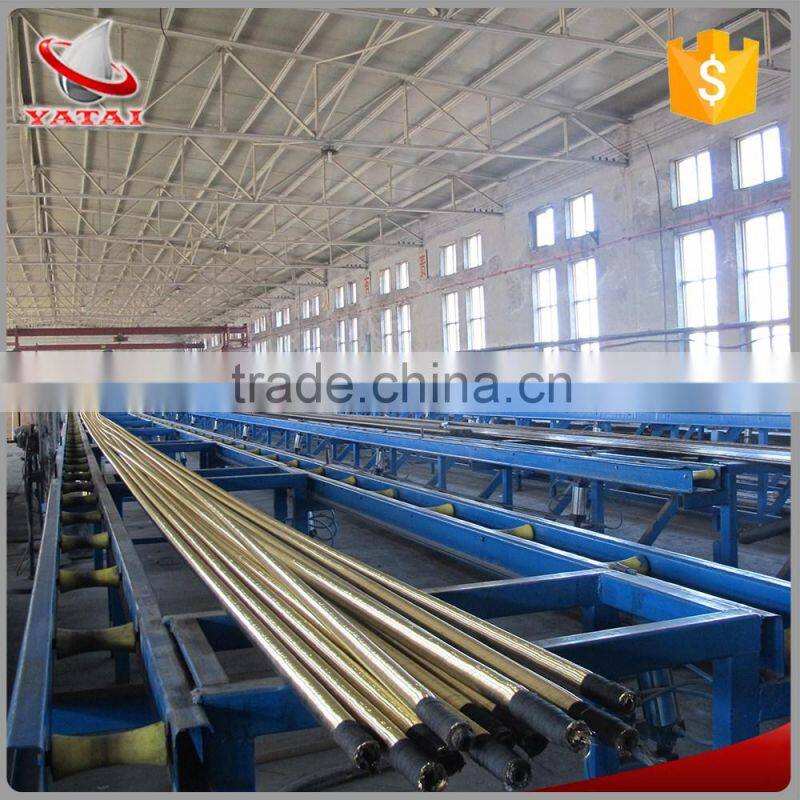

Hengshui Yatai Especial Rubber Products Co., Ltd.
The company covers about, High pressure hose, Hydraulic rubber hose, Hydraulic hose, SAE DIN series, Metal hose, Teflon(PTFE)hose, Nylon Resin tube, Braided hose, Fireproof hose, hose coupling, Assembly parts etc. Our products are exporting to more than 30 countries, e.g. USA, UK, Germany, Korea, Russia, Iran, India, Pakistan, Kuwait, Brazil, Argentine, Venezuelan, Indonesia, Malaysia and so on.
http://yataihose.en.china.cn/
Our trade show

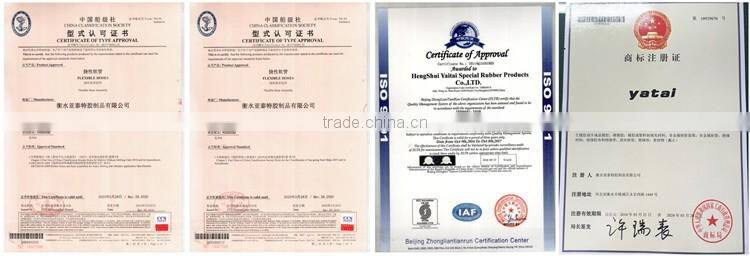

Certification:
Pre-Sales Service
* Inquiry and consulting support
* Sample testing support
* View our Factory
* OEM is available
After-Sales Service
* Training how to instal
* Any question, feel free to contact us for 24h
Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose
Any other interest, pls feel free to email me!
Oil/Fule/Gasoline/Petrol Resistance Synthetic Rubber Hydraulic Hose
Contact Us
- Hengshui Yatai Especial Rubber Products Co., Ltd.
- Contact nameJulie Ren Chat Now
- Phone86-318-2129985
- AddressNo.1449,Yongan Road, Hengshui, Hebei
