Product Details
| Condition | New | Type | Screw Conveyor | |
| Material | Other, vinylon | Material Feature | Other, high-quality | |
| Structure | Belt Conveyor | Place of Origin | Hebei, China | |
| Brand Name | hua yun | Model Number | cc56,cc60,nn100-nn600,pvc,pvg, CC-56/NN100-NN630/EP100-EP630 |
Product Description

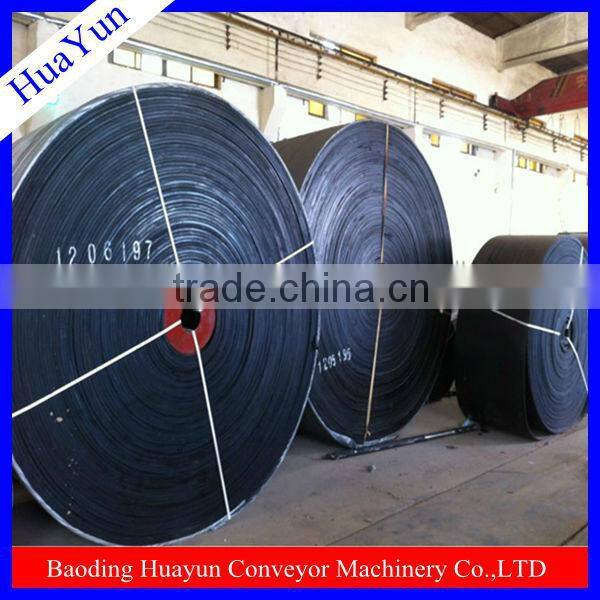

the belts conveyer,rubber canvas belts conveyor

Standards:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
Application:
Suitable for conveying small blocks, powdery materials in metallurgical, construction materials, electric, chemical, port and harbor industry such as wood saw, rice, crops, coal, cement and mineral materials.
Not suitable for hot and oily materials convey.
Type:
Terylene cotton canvas belt;
Full cotton canvas belt.
Features:
The common cotton canvas belt has the advantage of good flexibility, easy groove forming, and cheap.
Types to be chosen:
1. Pure cotton
2. Terylene cotton canvas.
Specifications:
Fabric | pure cotton | terylene cotton | |
Fabric tensile strength (N/mm/ply) | 55 | 66 | |
Cloth thickness (mm) | 1.4 | 1.0 | |
Plies | 3~10 | 3~10 | |
Fabric adhesion (N/mm) | >=2.7 | >=3.2 | |
Full thickness tensile strength (KN/m) | 150~500 | 180~600 | |
Rubber thickness (mm) | top | 1.5~8 | 1.5~8 |
bottom | 0~4.5 | 0~4.5 | |
Width (mm) | 400~1600 | 400~1600 | |
Longitudinal elongation | <=5% | <=5% | |
Length/Roll (m) | <=200 | <=200 | |
Advantage of Cotton Canvas Conveyor Belt
1) Thin belt body
2) High strength
3) Good elasticity
4) High abrasion resistance.

Cover physical and mechanical properties

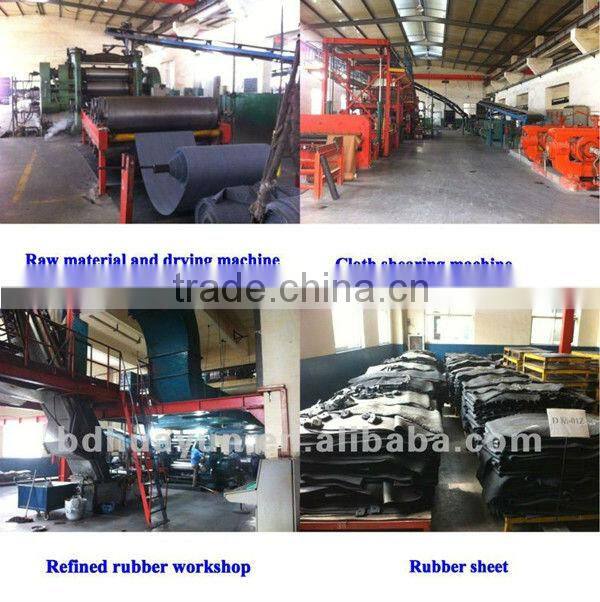

Cotton Canvas Conveyor Belt workshop
High Quality Control
Application
Metallurgy, building materials, power, ports, mining, quarries, sandpits, etc.
the belt can be made into endless belt, the convering rubber can be made into pit, chevron, horizontal, etc.

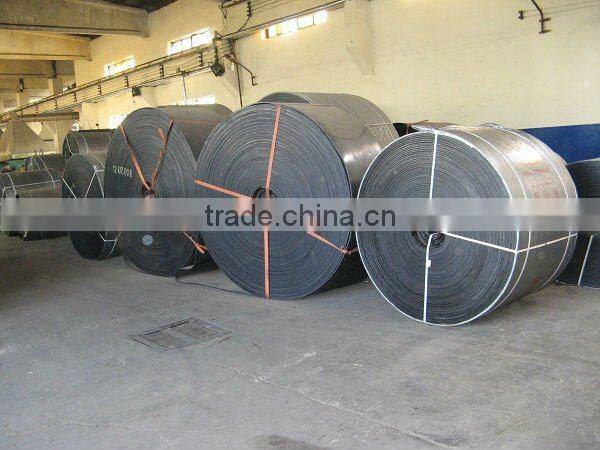

Package & Transport

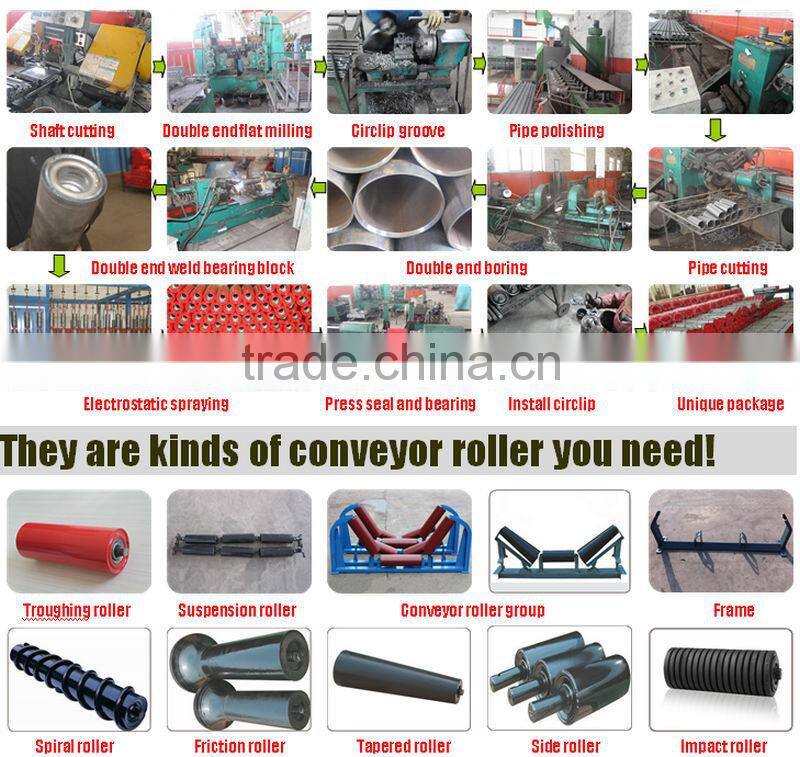

kinds of our conveyor belt you can choose
About US
Kindly contact us if any questions.
It is our pleasure to be on service of you!
