Low Price Soundproof Generator China Made
US$ 1,200 - 190,000
/ Set
1 Set(Min. Order)
- Fuzhou China
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Dellent | |
| Model Number | DE-L14S | Output Type | Other, AC single phase , AC three phase | |
| Speed | 1500rpm, 1800rpm | Frequency | 50HZ , 60HZ | |
| Rated Power | 9KVA to 1600kva | Rated Voltage | 220/380V, 230/400V ,240/415V | |
| Rated Current | depends on |
Product Description
Product Description
low price soundproof generator china made
Diesel Generator set Standard:

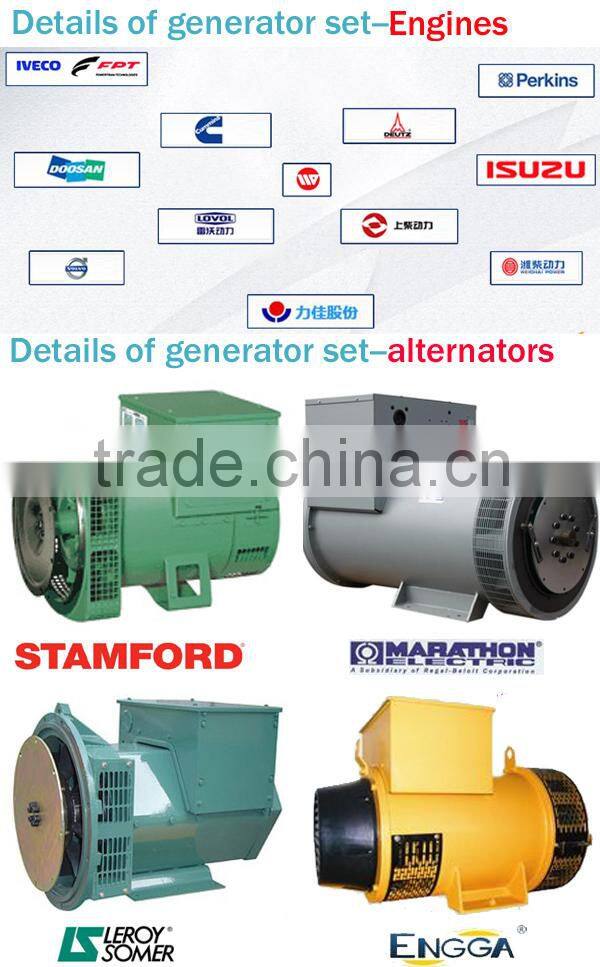

1. Powered by world famous engines, such as Perkins, Kobota and so on
2. circuit breaker
3. 8 hours (@75% load) base fuel tank
4. Emergency stop button.
5. Maintenance free battery with floating charger
Diesel generator set Optional:
1. Soundproof canopy

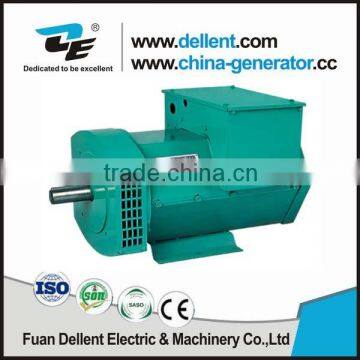

2. Chinese brand brushless alternator

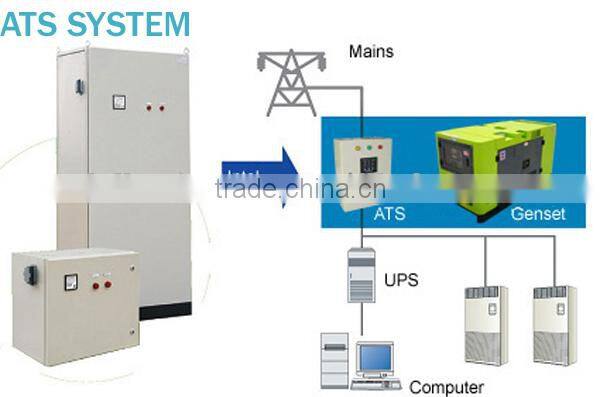

2. ATS
3. Four wheel trailer (<30km/h)
Diesel Generator sets Technical Data
| Specifications Table (soundproof type) | |||||||||||||||||||||||
| Genset Model | DE-L14S | DE-L16S | DE-X22S | DE-X30S | DE-I33S | DE-I40S | DE-K35S | DE-K48S | DE-C50S | DE-C68S | DE-C75S | ||||||||||||
| Generator | Generator | ||||||||||||||||||||||
| Frequency HZ | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Output KVA/KW | Continuous | 9/7.2 | 13/10 | 11/9 | 15/12 | 17/13.5 | 20/16 | 21/17 | 28/22.5 | 25/20 | 30/24 | 30/24 | 36/29 | 27.5/22 | 30/26 | 35/28 | 43.7/35 | 37.5/30 | 45/36 | 50/40 | 55/50 | 56/45 | 67.5/54 |
| Standby | 10/8 | 14/11 | 12.5/10 | 16/13 | 18/15 | 22/17.5 | 23/18.7 | 30/25 | 27.5/22 | 33/27 | 32/26 | 40/32 | 30/24 | 35/28.5 | 37.5/30 | 48/38.5 | 41/33 | 50/40 | 55/44 | 68/55 | 62.5/50 | 75/60 | |
| Voltage V | 50HZ:220/380,230/400,240/415 60HZ:240/416,254/440,260/450 | 50HZ:220/380,230/400,240/415 60HZ:240/416,254/440,260/450 | |||||||||||||||||||||
| Rated Speed/rpm | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | 1500 | 1800 | |
| Power Factor | 0.8 | 0.8 | |||||||||||||||||||||
| No. of Phase | 3-Phase&4-Wire | 3-Phase&4-Wire | |||||||||||||||||||||
| Rating | Continuous | Continuous | |||||||||||||||||||||
| Excitation | Brushless (with AVR) | Brushless (with AVR) | |||||||||||||||||||||
| Insulation Class | Class H(Temperature rise limit:130k) | Class H(Temperature rise limit:130k) | |||||||||||||||||||||
| Diesel Engine | Diesel Engine | ||||||||||||||||||||||
| Engine Model | LAIDONG | LAIDONG | FAWDE | FAWDE | ISUZU | ISUZU | KUBOTA | KUBOTA | |||||||||||||||
| LL380BD | KM385BD | 4DW81-23D | 4DW81-26D | 4DW91-29D | 4DW91-38D | 4JB1 | 4JB1T | V3300-E2B | V3300-T-E2B | 4BT3.9-G2 | 4BTA3.9-G2 | 4BTA3.9-G2 | |||||||||||
| Engine character | Water cooled,In line, Swirl Chambered | Water cooled,In line, Direct Injection | Water cooled,In line, Direct Injection | Water cooled,In line, Direct Injection | Water cooled,In line, Direct Injection | Water cooled,In line, Direct Injection Turbocharged | Water cooled,In line, Swirl Chambered | Water cooled,In line, Swirl Chambered Turbocharged | Water cooled,In line, Direct Injection Turbocharged Aftercooled | Water cooled,In line, Direct Injection Turbocharged Aftercooled | Water cooled,In line, Direct Injection Turbocharged Aftercooled | ||||||||||||
| Cylinder NO Bore&Stroke mm | 3-80*90 | 3-85*90 | 4-85*100 | 4-90*100 | 4-93*102 | 4-93*102 | 4-98*110 | 4-98*110 | 4-102*120 | 4-102*120 | 4-102*120 | ||||||||||||
| Fuel Consumpion g/kw*h | 245 | 250 | 238 | 238 | 235 | 238 | 235 | 238 | 233 | 235 | 228 | 233 | 215 | 218 | 213 | 216 | 214 | 220 | 216 | 222 | 216 | 222 | |
| Displacement/L | 1.35 | 1.53 | 2.27 | 2.546 | 2.771 | 2.771 | 3.318 | 3.318 | 3.9 | 3.9 | 3.9 | ||||||||||||
| Rated Output | PS/rpm | 12/1500 | 17.5/1800 | 16/1500 | 19/1800 | 23/1500 | 27/1800 | 28.3/1500 | 37.8/1800 | 32/1500 | 37.8/1800 | 37.8/1500 | 46/1800 | 35.5/1500 | 40.8/1800 | 43.3/1500 | 53.3/1800 | 48.6/1500 | 54/1800 | 67.5/1500 | 81/1800 | 67.5/1500 | 81/1800 |
| kW/rpm | 9/1500 | 13/1800 | 12/1500 | 14/1800 | 17/1500 | 20/1800 | 21/1500 | 28/1800 | 24/1500 | 28/1800 | 28/1500 | 34/1800 | 26.3/1500 | 30.2/1800 | 32.1/1500 | 39.2/1800 | 36/1500 | 40/1800 | 50/1500 | 60/1800 | 50/1500 | 60/1800 | |
| Compression ratio | 18:1 | 18.2:1 | 18.2:1 | 21.8:1 | 21.8:1 | 16.5:1 | 16.5:1 | 16.5:1 | |||||||||||||||
| Start type | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | ||||||||||||
| Governer | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical | Electrical | Electrical | Electrical | ||||||||||||
| Generator Set | Generator Set | ||||||||||||||||||||||
| Battery X Quantity | 48Ah X 1 | 48Ah X 1 | 60Ah X 1 | 60Ah X 1 | 80Ah X 1 | 80Ah X 1 | 80Ah X 1 | 80Ah X 1 | 60Ah X 2 | 60Ah X 2 | 60Ah X 2 | ||||||||||||
| Fuel | ASTM No.2 Diesel Fuel, or Equivalent | ASTM No.2 Diesel Fuel, or Equivalent | |||||||||||||||||||||
| Fuel Tank Capacity L | 40 | 45 | 50 | 50 | 80 | 120 | |||||||||||||||||
| NEW Style | NEW Style | ||||||||||||||||||||||
| Dimensions&Weight&etc. | Dimensions&Weight&etc. | ||||||||||||||||||||||
| Length:L mm | 1570 | 1570 | 1750 | 1750 | 1950 | 1950 | 2050 | 2150 | 2250 | 2250 | 2350 | ||||||||||||
| Width:W mm | 720 | 720 | 750 | 750 | 820 | 820 | 860 | 880 | 960 | 960 | 960 | ||||||||||||
| Height:H mm | 850 | 850 | 850 | 850 | 1050 | 1050 | 1150 | 1150 | 1230 | 1230 | 1230 | ||||||||||||
| Net Weight kg | 452 | 486 | 568 | 656 | 788 | 790 | 806 | 826 | 1056 | 1286 | 1286 | ||||||||||||
| Sound Level 7m dB(A) | 66 | 70 | 68 | 73 | 67 | 71 | 68 | 72 | 63 | 65 | 65 | 68 | 62 | 63 | 63 | 65 | 72 | 75 | 73 | 76 | 73 | 76 | |

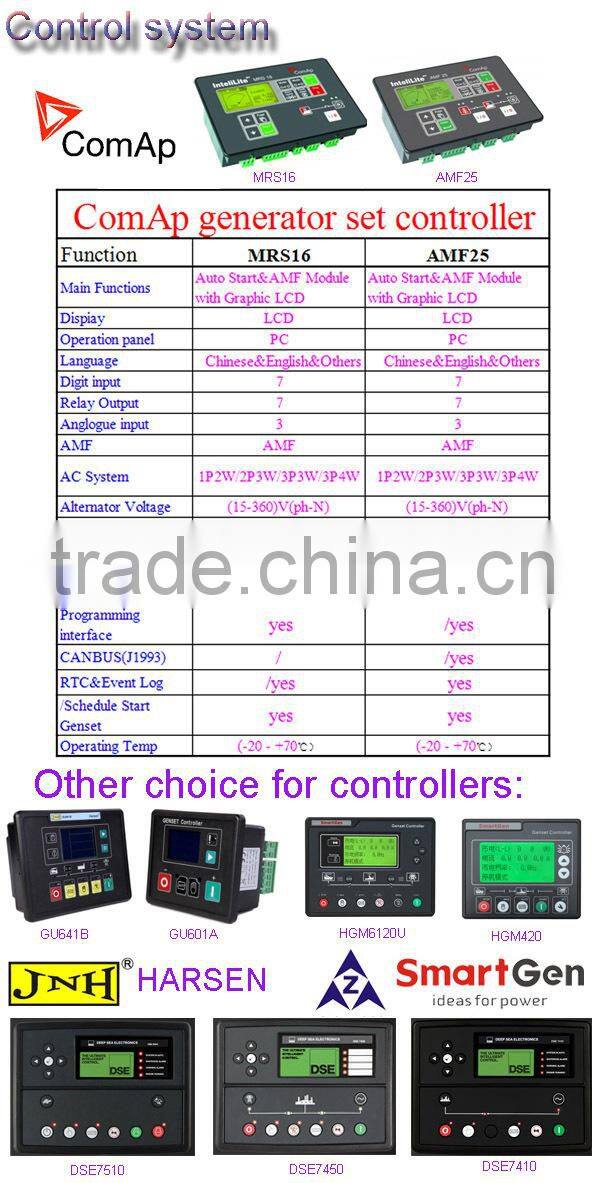

| Controller | Harsen GU601A & Harsen GU641A & DSE3310 & ESD7320 | Harsen GU601A & Harsen GU641A & DSE3310 & ESD7320 | |||||||||||||||||||||

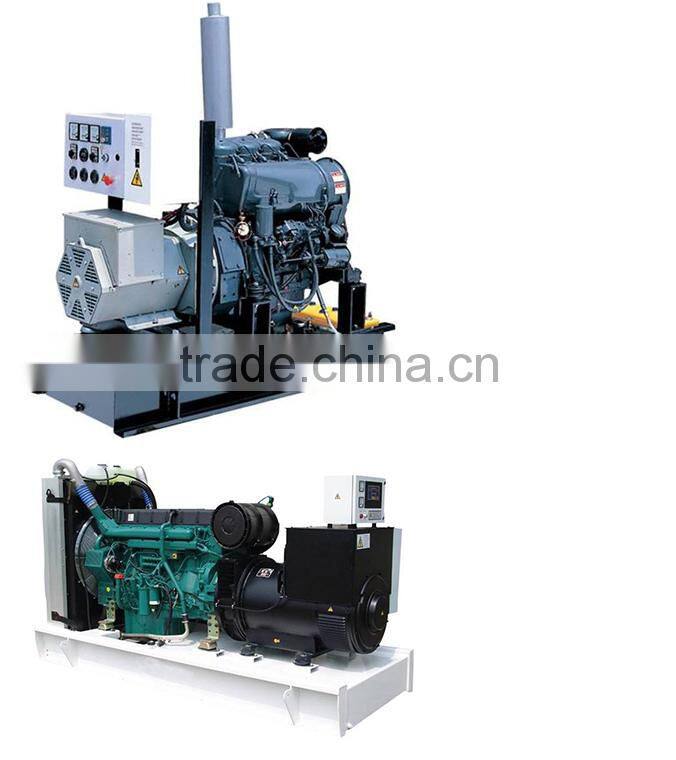

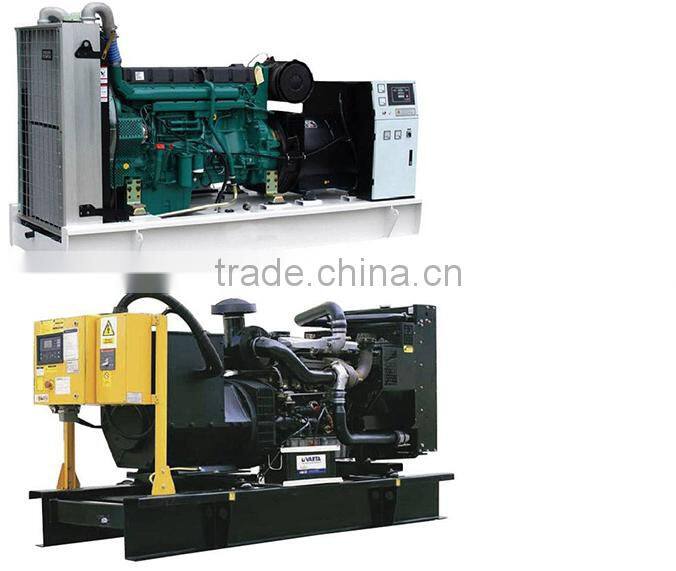

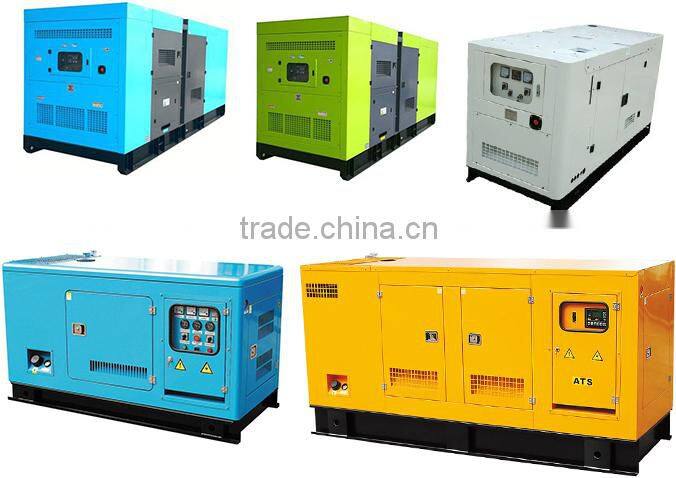

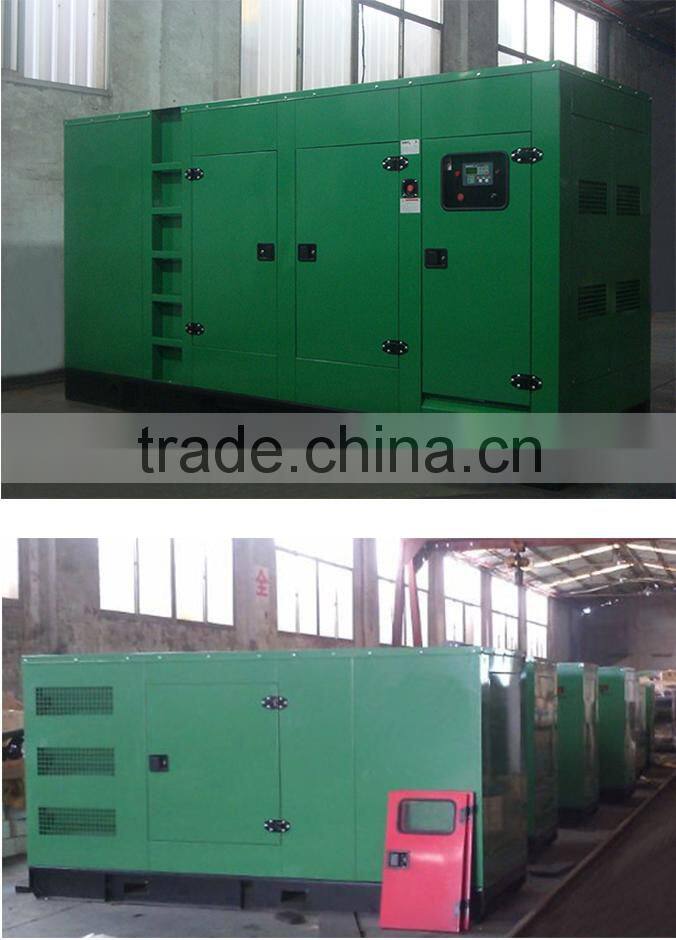

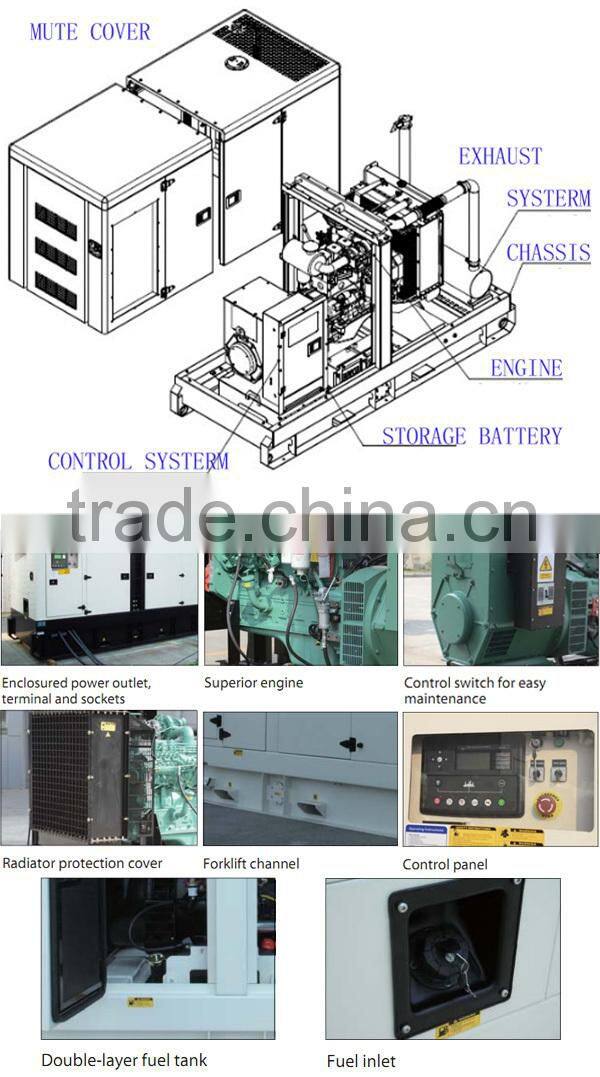

Diesel Generator Sets-------Silent Type and Open Type

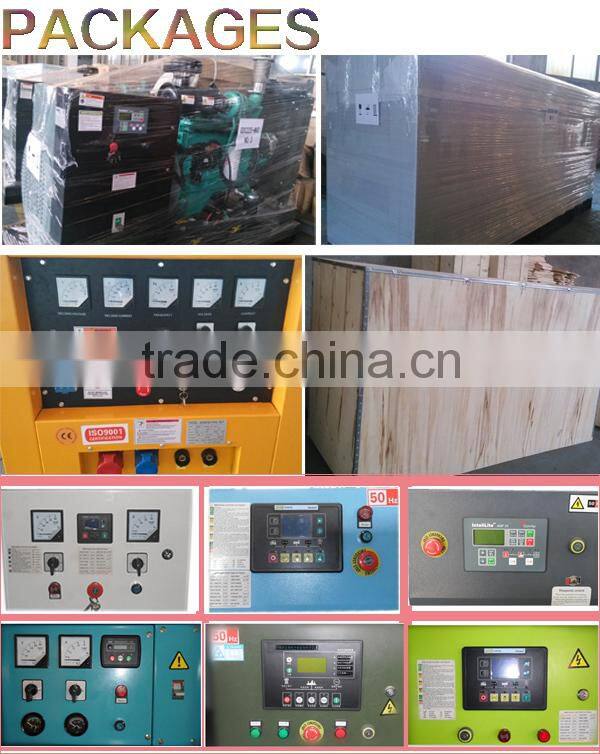

Packaging & Shipping
Company Information
Our Services
After-sales services:
-Solve your technical problems in 24 hours
-provide international warranty service for engines
-We can supply spare parts and teach you how to maintain gensets
-We can help you install generator or other technical support
If you have any problems,contact us at any time , our electric expert and engineers will help you to solve.
