5 Layer Film Blowing Machine
- ningbo
You May Like
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | XH | Model Number | 5SJ | |
| Voltage | 380v | Power(W) | 55kw | |
| Dimension(L*W*H) | 5200*2800*6000MM | Weight | 10 tons | |
| Certification | CE | Warranty | one year for 5 layer film blowing machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Co-extrusion rotary film blowing machine The film is widely used for preservation of liquid and food ,insulation film and lamina

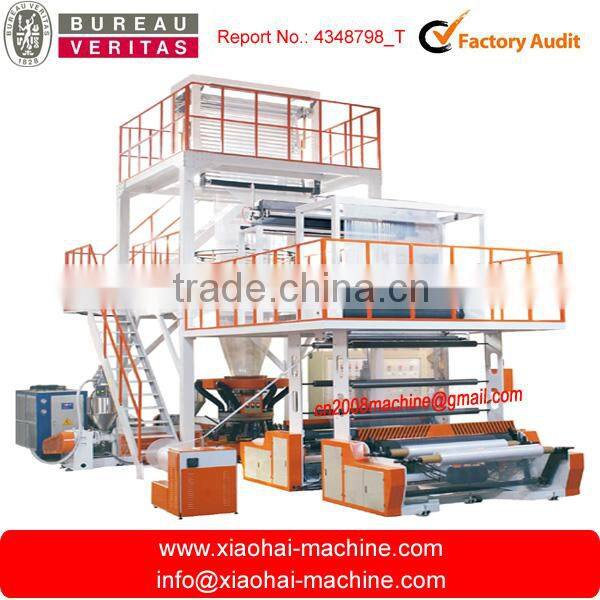

5 layer film blowing machine
I.Parameters
| Model No. | 5SJ-50 | 5SJ-55 | 5SJ-60 |
| Screw Diameter | 55×3, 60×2 | 60×3, 65×2 | 65×3 ,70×2 |
| Screw Ratio(L/D) | 30:1 | 30:1 | 30:1 |
| Max.Folding Width of Film | 1000mm | 1200mm | 1500mm |
| Single Side Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Power of Main Motor | 15Kw×2, 18.5Kw×1 | 18.5Kw×2, 22Kw×1 | 22Kw×2 , 30Kw×1 |
| Output | 50kg/h | 80kg/h | 100kg/h |
| Weight of Machine | 4200kg | 5300kg | 6200kg |
| Total Power | 76kw | 88KW | 102kw |
| Dimension(mm) | 6600x4100x5000 | 6800x4300x6000 | 7000x4600x7100 |
II.Function
The Lines which adopt the advanced technology equipments, such as extruder with force feeding function, precision ceramicheater, precision dual lip air ring, horizontal rotating haul-off system, IBC internal bubble cooling system, the first haul-off system with cooling function, fully automatic two-slitter and two-winding surface winder, which can be fit for producing all kinds of high clarity packing film, it also create higher economical efficiency for you.
III.Main Fittings
1.Electric Fittings: Yatai PID Self-adjusting Automatic Temperature Control Meter, Schneider
Pushbutton, Selector Switches, Pilot Lights, Contactor and Thermal Overload Relay, Korea LG Circuit-breaker;
2.Lubricating System: Taiwan Famous Automatic Oiling System;
3.Pneumatic System: Japan SMC;
