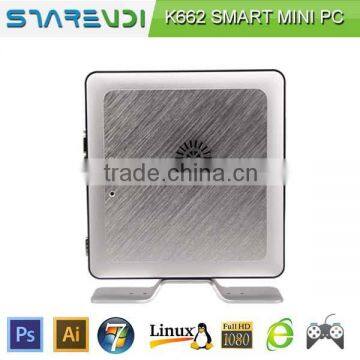

Lowest consumption Fanless Baytrail PXE Booting Sharevdi K662 quad core 2-2.41Ghz

Model name

Fanless K662

Consumption

10W

Weight

1.5KG

Warranty

3 years

Shell

Silver aluminum alloy shell

WIFI

Optional Internal

power

12V-3A

Machine size

17.5*18.5*2.5CM

CPU overview

Chip set

BayTrail-D

CPU type

Intel Celeron J1900 2G--2.41GHz(Turbo boost)

Core

Quad core Four threads

CPU cache

Second level cache:2MB

CPU consumption

10W

Graphics

Integrated graphics. Intel HD Graphics 854MHZ

RAM

Default: 2GB RAM,Max 8GB DDR3L extendable

Storage

Default: SSD 16GB.

(SSD 32GB/64GB/128GB)  support HDD,Max 1TB HDD

Network

Onboard Realtek  RTL8111E 1000Mbps

Sound chip

ALC 662

WIFI model

BCM43224 300M dual frequency

Video

Integration Intel HD Graphics 854MHZ

graphics card fundamental frequency:688MHZ

graphics card max fundamental frequency:854Ghz

support DX11

support HDMI

support full screen HD playback

Input power

12V/3A

Output power

100-240V

I/O ports

front panel ports

1*MIC

1*SPK

4*USB2.0 ports

1*On/off switch

Backside ports

1*DC

1*HDMI

1*VGA  port

1*LAN port(RJ-45)

2*USB 3.0

2*USB2.0 ports

1 COM port

Internal ports

1*mini-PCIE port(MSATA 1.8 inch SSD)

1*mini-PCIE port WIFI

support SATA 2.5 inch HDD

Support OS

Can be embedded Windows 7/ Windows 8/ Linux OS

Working Environment

temperature

-20/+85  degree centigrade

64 bit computing

Support 64 bit computing

virtualization

Support Intel Virtualization technology

hyper-threading

No Hyper-Threading
