Residential Small Wind Turbine Generator 5kw 220v

Shipping method

Sample order is acceptable and recommended to send via LCL sea shipment or air shipment. Please contact our sales to get the detail shipment suggestion.

Q1: Is the wind turbine price listed above include the charge controller and others? If
not,where I can purchase the controller and inverter?

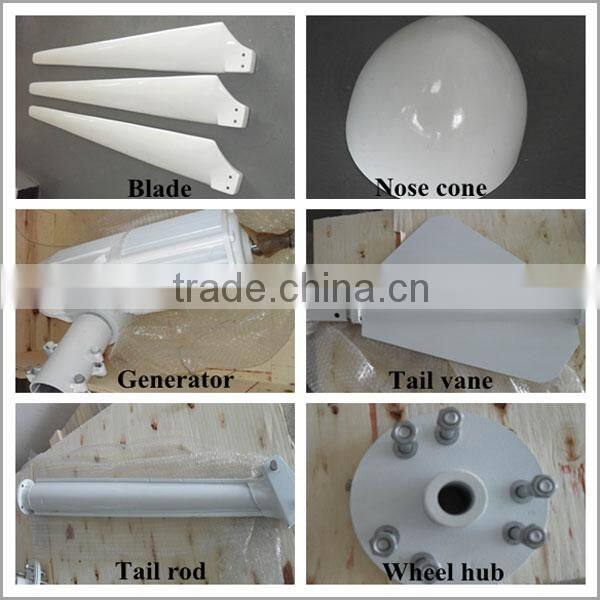

A: The listed price is just for wind turbine only (generator + blades), no including
controller, inverter and other parts. Please contact our sales for the controller, inverter
and other system parts for on grid and off grid application.

Q2: What is the working voltage of your HAWTs for my battery bank or grid utility?
A: Please find our recommended working voltage as below:
SA-1KW --- 24V/48V (off grid) / 220V (on grid)
SA-2KW --- 48V/96V (off grid) / 220V (on grid)
SA-3KW --- 48V/96V/120V (off grid) / 220V (on grid)
SA-5KW --- 96V/120V/240V (off grid) / 220V (on grid)
SA-10KW --- 120V/240V/360V (off grid) / 380V (on grid)

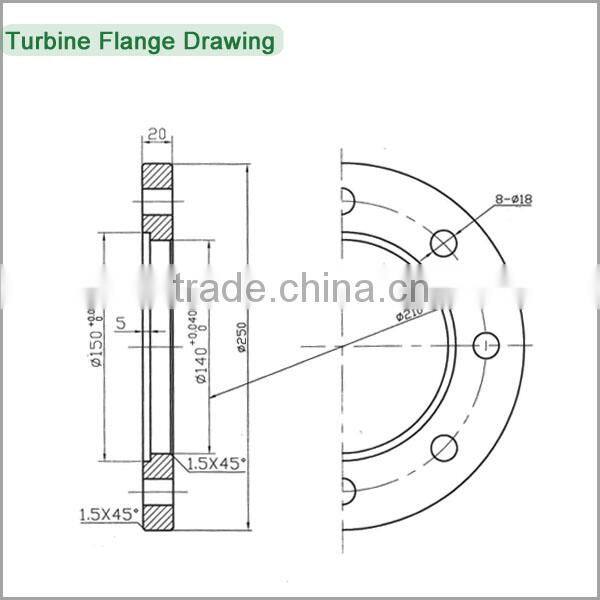

Q3: What thickness of pole would we use for your horizontal wind turbine and what would be
the height approximately of the section that we would add on to your unit?
A: We recommend to use 3mm-5mm thickness, 6-12m height guyed cable tower or 5mm-8mm
thickness, 6-15m height free standing tower for our HAWT 1KW-10KW. Please contact our sales
to get more tower information.

Q4: How is your HAWTs to realize the security protection during heavy winds?
A: There are multi security protection to ensure our HAWTs speed regulation and protection
during high wind: yawing + electromagnetic brake (by controller) + manual brake (available
on HAWT 5KW and 10KW models).
