DMHC One Second Electric Folding Bike With Lithium Battery

FOB Price

US$ 300 - 500 / Set

100 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

One Second electric folding bike

♣ Specification

No.	Components	Specification	No.	Components	Specification
1	Frame	TDW05Z Aluminum Frame / TDW04Z	17	Rim & Spoke	12 "Aluminum Wheels
2	Motor	Power: 200W Brand: MinDa	18	Rear Carrier	no
2	Motor	Brush/BL:Brushless Front/Rear Drive: Front	18	Rear Carrier	no
3	Battery	Voltage / Capacity: 36V/7Ah lithium	19	Thumb Throttle	no
3	Battery	Brand:YILI	19	Thumb Throttle	no
4	Controller	DMHC	20	Front/rear tire	Size:12” Brand:Kenda
5	Power Indicate	Throttle with Indicate	21	Front/rear Mudguard	Power coating steel
6	Charger	Brand:YILI Voltage Input:220V	22	Load	180kgs(TDW05Z) 110kgs(TDW04Z)
6	Charger	Frequency:50/60Hz	22	Load	180kgs(TDW05Z) 110kgs(TDW04Z)
7	Throttle	Zero start,throttle with display	23	Front/rear light	no
8	PAS	1:1	24	Front/rear brake	Front:V brake, Rear:roller brake
9	Handlebar	Foldable Alloy Handlebar	25	Brake lever	Wuxing brake lever with cut-off function
10	Stem	Alloy stem	26	Grip	wuxing
11	Front fork	Alumium Alloy front fork	27	Bell	Black bell
12	Saddle/Saddle tube	Normal seat tube	28	Reflector	White:front
12	Saddle/Saddle tube	Normal seat tube	28	Reflector	Red:rear
13	Axis	One-piece axis	29	Single/Double kickstand	Single kickstand
14	Chainwheel, pedal	Aluminum chainwheel	30	Chain Cover	Black plastic chain cover
14	Chainwheel, pedal	Foldable pedal black with refective	30	Chain Cover	Black plastic chain cover
15	The lock of the wheel	no	31	GW/NW	21.2kgs /17.8kgs
16	Max speed	23KM/H	32	Package size	620X280X830mm

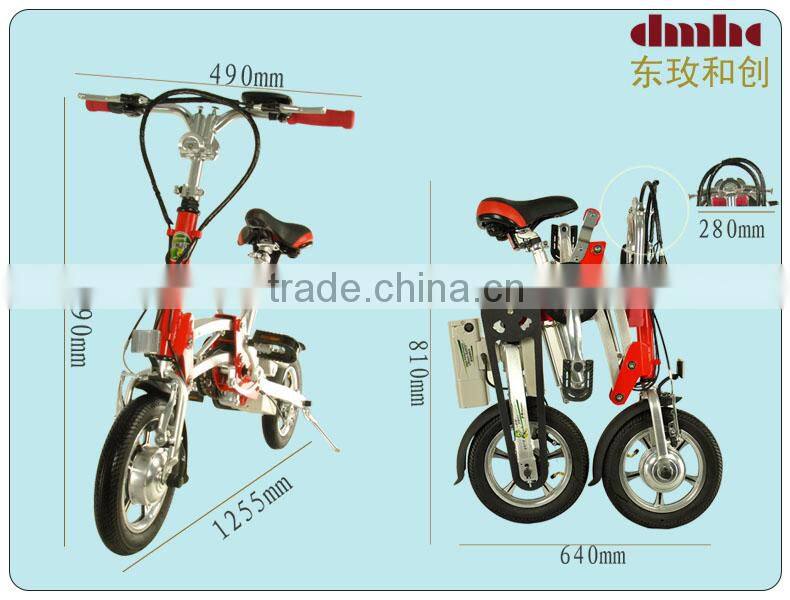

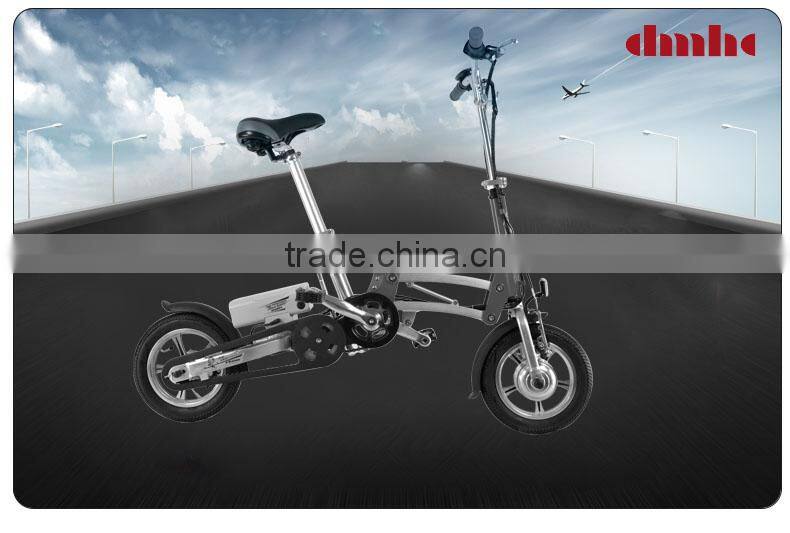

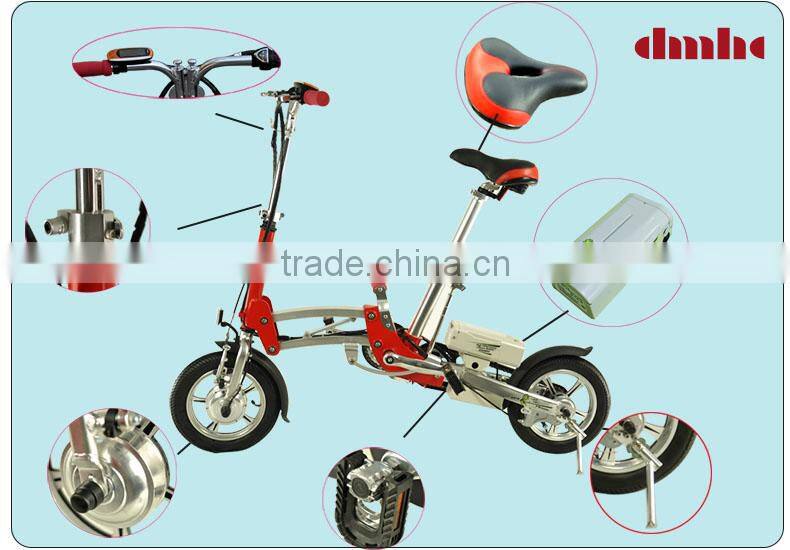

♣Product Pics

FAQ

1. Q: What’s your minimum order quantity:

A: 100 sets(Negotiable)

2. Q: Could I use my own forwarder?

A: Yes

3. Q: What’s your delivery time?

A: For samples: within 15days;

For orders: within 25days.

4 Q. How to control quality?

A: At DMHC, each ebike and ebike kit will be test 100%, our QA will check products .

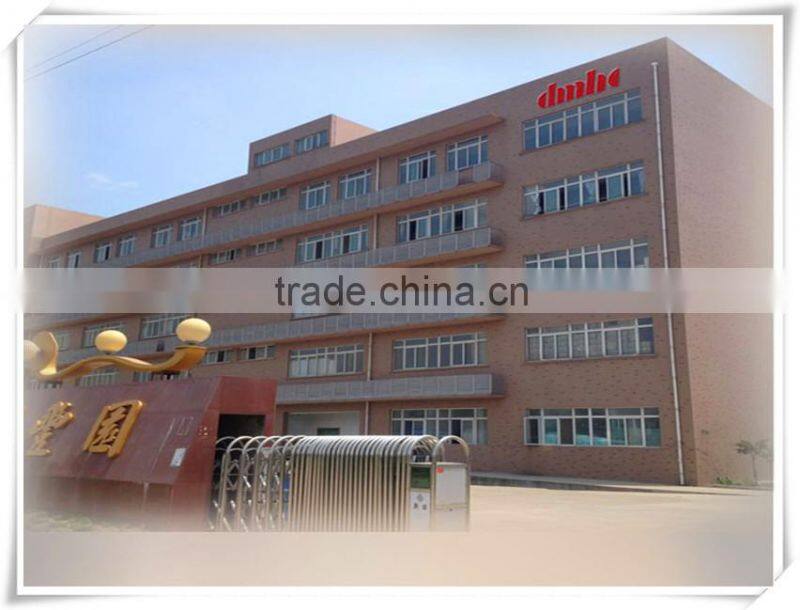

♣Our Factory

♣Patented Certificate
