Product Details
Place of Origin | Guangdong, China | Brand Name | LinkAV | |
Model Number | LinkLV-C200 |
Product Description

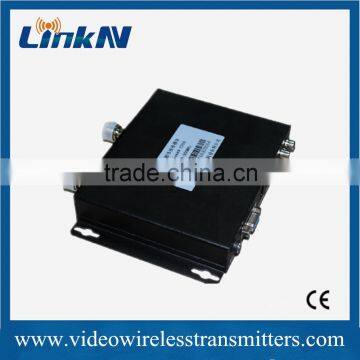

COFDM Wireless HDMI Transmitter & Receiver Set made in China
Product features:
LinkAV-C200 can realize the av transmission between the transmitter and the mini receiver.
Adopting the advanced foreign technology of diversity reception,to overcome the simulation technology and conventional modulation technology under multipath reflection image transmission, and keep real-time transmit high quality SD image under high speed mobile and NLOS conditions, particularly suitable for use in complex environment;
1.Professional Diversity Receiver
2.Support HDMI and CVBS interface
3.HD ("High Definition") or SD ("Standard Definition")
4.Dual mode MPEG2 and H.264 decoding
5.Automatically adjusts to Video Formats
6.Small size 179*128*29mm, light weight and rugged
7.high image quality,image clear, stable and smooth
Technical Parameters:
Item | Description |
Modulation type | COFDM |
Output frequency | 46-860MHz; per 0.5MHz adjustable |
Working bandwidth | 1.25/2.5/6/7/8MHz adjustable |
Receive sensitivity | -106dBm |
Video Output | CVBS interface,SD Analog video output |
HDMI interface,HD Digital video output | |
Audio output | BNC,Analog stereo output |
Video Compression | MPEG-2 /H.264 |
RF interface | TNC,High performance dual channel diversity reception |
Encryption | AES-128 bit |
Parameter Control | Adjustable digital LED control panel,RS232 |
Power supply | DC12V |
Working environment | -10~70℃ |
Boundary Dimension | 179*128*29(mm) |
COFDM HDMI wireless video transmitter:
Transmission Characteristics | |
Modulation Type | QPSK(4QAM), 16QAM, 64QAM |
Working Frequency | 300-900MHz ( adjustable 0.5M per step) |
Transmission Power | 2W (adjustable) |
RF Bandwidth | 1.25/2.5/6/7/8MHz(optional) |
FEC(forward error correction) | 1/2, 2/3, 3/4, 7/8 |
Guard Interval | 1/4, 1/8, 1/16, 1/32 |
Latency | 300 ms |
Transmission Range | 2 km (NLOS) ~ 8 km (LOS) |
Data Characteristics | |
Video Input | HDMI |
Video Compression | H.264 |
Audio Input | Intercom earplugs |
RF Interface | N F head |
Parameter Control Method | Using digital LED control panel |
Encryption Method | 128 - bit AES (can set user’s password) |
Electrical Characteristics | |
Working Voltage | DC 12V |
Working Current | 1.5 A |
Power Consumption | ≤ 20W |
Battery Life | 5 hours |
Physical Characteristics | |
Working Environment | -10~70℃ |
Dimensions | 170×120×45 mm (without battery) |
220×120×45 mm (with battery) | |
Weight | 2 Kg |
Application:
Can be used for Public security, fire fighting,traffic warden,Civil air defense emergency, City administration, Monitoring of environment, Water conservation, flood prevention, Power and emergency, Railway emergency rescue, Maritime,Coastguard patrol,The customs border,Dock/Quay monitoring, Forest-fire prevention,Oil field, Military reconnaissance, TV transmit etc.
Our Services
1. we accept all terms of trade
2. we provide professional system design and construction
3. Lifelong maintenance
4. 24-hour technical support
5. we have 9 years experience in wireless transmission area, we are professional factory, so we can provide you:high quality products,better product pre-sales and after-sales service,attractive prices,shorter delivery.
