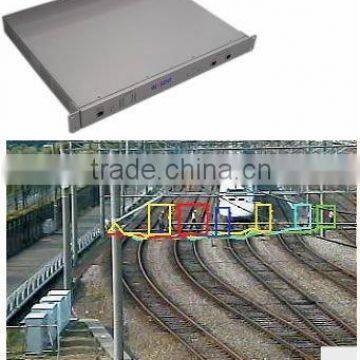

4ch video detection intelligent video analytics server
- 9000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | BELLSENT | |
| Model Number | BE-IVS400 |
Product Description
Specifications
4ch video analytics server,real time detection and alarm,
Detection rate 99%,FAR is less 1/day,
Analog and IP video output
The BE-IVS 1 is 4ch intelligent video analytics server.The users can customize the rules and criteria and define the perimeter.When the people,vehicles and objects cross the perimeter or enter a pre-defined region or leave behind or remove from a scene,the equipment can analyzes the input video and alarm.
1.Easy to install, sets up in minutes.
2 .4 channel video encoder, embedded with Bellsent's DSP-based field-proven analytics,
3.Converts any analog CCTV surveillance camera (B/W, color, thermal, and infrared) to networked MPEG-4 CIF-quality video, streaming at full frame rate(PAL25fps,NTSC 30fps)
4. Built-in high-performance self-sustained video analytics, required no additional HW/SW
5.Detection rate 99%,false alarm rate is less 1/day
Ignores false alarms generated by small animals, swaying branches, cloud shadows, light changes, rain, snow and trivial movements in the scenery.
6.Detection types:Regional Entrance Detection,Tripwire Crossing Detection;Fence Trespassing Detection;Anomaly Detection.
full Specifications:
Channels | ||
Number of Intelligent Video Analysis Channels | 4 | |
Analog Video Input | ||
TV Standard | Composite 1Vp-p – PAL | |
Physical Connector | 4x BNC 75Ω | |
Analog Video Output | ||
TV Standard | Composite 1Vp-p – PAL | |
Physical Connector | 4x BNC 75Ω | |
Digital Video Output | ||
IP Video Streaming | MPEG-4 SP and M-JPEG | |
Max Resolution per Channel | CIF | |
Frame Rate | Up to Full Frame Rate | |
Bit Rate | CBR (128Kbps – 4Mbps), VBR | |
Network | ||
Ethernet (IEEE 802.3/802.3U) | 2x RJ-45 Interface | |
Services and Protocols | TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP | |
Video Streaming | RTP/RTSP | |
Alarms/Commands | TCP/IP | |
I/O Interface | ||
Serial (one interface per input for PTZ camera control) | 4x RS-232+1x RS-485 | |
IN - Alarm Input | 4 x Alarm inputs (from Dry Contacts) | |
OUT - Relay Output | 4x Relay Output (rated load 1A@30VDC) | |
Power Source | ||
Voltage | 220VDC | |
Power Consumption | 19W | |
Physical Dimensions | ||
Dimensions (mm) | 433 x 44x 395 mm (WxHxD) | |
Dimensions (inches) | 17 1/32" x 1 23/32" x15 17/32" (WxHxD) | |
Mounting | Shelf Mount | |
Environmental Specifications | ||
Operating Temperature | 0° to 50° C | |
Operating Humidity | 5% to 95% (Non-Condensing) | |
Certifications | ||
Safety | CE | |
Electromagnetic Interference (EMC) | FCC part 15, subpart B, Class A | |
