Home > Products > 2014 New HD-SDI Camera > 1080P HD SDI Analog camera hd sdi camera
1080P HD SDI Analog camera hd sdi camera
- shenzhen
- Credit Card
You May Like
-
Best manufacturer of HD IR IP High Speed Dome Camera
-
Best quality HD-SDI High-speed Dome Security Camera
-
Best Quality SD-HDI High-speed Dome Security waterproof Camera
-
Best manufacturer of PTZ High-speed analog waterproof waterproof 1080p hd sdi camera
-
China hot 1080P HD SDI Waterproof IR camera hd sdi camera
-
China new 1080P Hhd-sdi ptz camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Bellsent | |
| Model Number | BE-SDC1801IR | Type | Analog Camera | |
| Style | Bullet Camera | Sensor | CMOS | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
1/2.8 Panasonic CMOSHD-SDI outputs Support SMPTE292M,SMPTE424M
50m IR distance
super WDR,D-WDR, BLC
Defog, motion detection

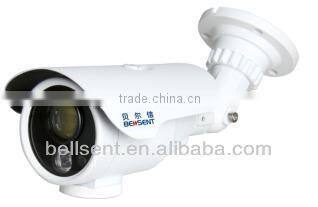

1080P HD-SDI Waterproof IR camera BE-SDC1801IR
1,Models of supply
1080P :
CS 4mm lens
CS 6mm lens
CS 8mm lens
2,Features
l 1080P HD Real-time outputs
l 1/2.8” Panasonic CMOS
l HD-SDI outputs Support SMPTE292M,SMPTE424M standard
l Low illumination, 3DNR
l 1pcs Array LEDs, 40~50 M IR distance
l Super WDR,D-WDR, BLC
l OSD Menu, Defog, motion detection, Privacy Mask
l Digital Zoom
l DC12V/1A Power supply
3,Specification
Model | BE-SDC1801IR |
Image sensor | 1/2.8” Panasonic CMOS |
Total Pixel | 2010(H)x1108(V) |
Effective Pixel | 1920(H)x1180(V) |
Scanning system | Progressive |
Resolution | Digital: 1080(30fps), 720(60fps) Max: 1,100TV lines (1080P) |
DNR | 3D |
Gamma | 0.45 |
Day/Night | ICR |
AGC | 0-20 level |
Min. Illumination | Color: 0.2 lux, B/W:0.05,F1.2/0Lux(IR on) |
Lens | Focus Lens :CS 4mm, CS 6mm, CS 8mm |
LED | 1pcs Array LED |
Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
Digital Slow Shutter | X4 level |
S/N Ratio | 50dB(AGC OFF) |
WDR/BLC | WDR/BLC(D-WDR) |
White Balance | Auto/Autoext/Pushing/Manual |
Digital Zoom | x96 level |
Privacy Mask | 32 zones |
Motion Detection | Off/On |
OSD menu | support |
Video Output | HD-SDI: SmptE 292,424,425 / CVBS:1.0Vpp,75ohm |
Power(Max.) supply | DC12V, Less than 6.5Watts |
Language | Korean/Chinese/English |
Operating Condition | -10°C~+50°C |
Humidity | 90%≤RH |
weight | 500g |
Dimension | 272x100x98mm |

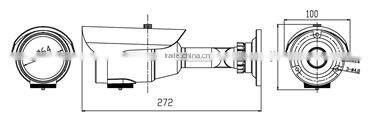

4,Dimension
