Home > Products > LED Module light > PVC ABS LED COB Module,IP65 COB Power LED Module
PVC ABS LED COB Module,IP65 COB Power LED Module
US$ 0.2 - 3
/ Piece
100 Pieces(Min. Order)
- shenzhen
- T/T Money Gram Credit Card
You May Like
-
Waterproof 12v SMD5050 White Color Module 3Leds 0.72w LED Module
-
0.3W Waterproof 3pcs 3528smd RGB LED Module
-
4 Mini LEDs SMD5050 Waterproof Ip65 RGB LED Modules
-
Sign Lighting Use 3 Years Warranty DC12V PVC Led Rgb Waterproof Module
-
Square 1.2W 5730SMD LED Module With 2 Years Warranty
-
3pcs 5050SMD Waterproof High Lumen LED Light Module
Product Details
| Model Number | BW-MD5001 | Chip Material | Other, PVC, ABS PLASTIC | |
| Emitting Color | Cool White | Luminous Intensity | 92 | |
| Luminous Flux(lm) | 110 | Optical Attenuation(%) | 1 | |
| Power | Other, 1.2 | Power Dissipation | 1.3 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2700K,4500K,6000K | |
| Operating Temperature(℃) | -20, 50 | Storage Temperature(℃) | -20, 60 | |
| Place of Origin | Guangdong, China | Brand Name | Brightway LED Limited | |
| Certification | CE |
Product Description
Specifications
LED COB Module1 Led module IP65
2 High Brightness LED module

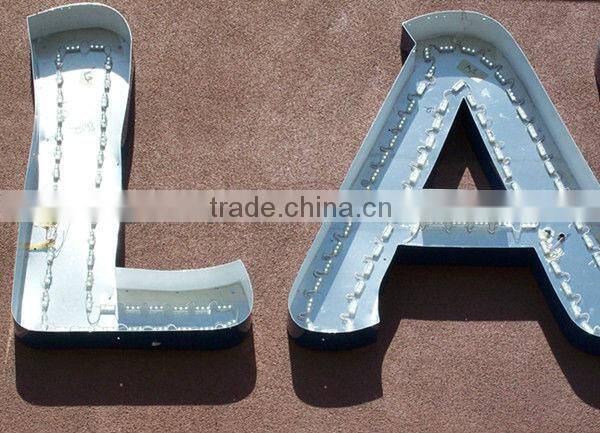

3 Channel letter sign LED back light
4 2/3/4 LED,DC12V
PVC ABS LED COB Module,IP65 COB Power LED Module
LED Module Introduction:
1,Injection Module adopts ABS material as its shell. transparent epoxy resin around the lights with good insulativity.
2,Comprehensive performance , good with excellent electrical performance, impact strength and wear resistance, chemical resistance, moisturecontent , shaping and excellent machining technology.
3,Completed through injection in one time. solves the problem that nonuniform sealing, dirty shell and LED stand out of the glue etc. It is simple artwork with good appearance and short lead time as well.
4,Good cold resistant available for -20~40°C. 3M adhesive tape and screws for customers to fix it in easy installation.
LED Module Details:
| Part No. | Color | LED chip | LED Qty (pcs) | Input Volt | Power (watt) | Lumens | Viewing angle | IP Rank |
| BW-MD1001 | Pure white Warm white Red Green Blue Yellow | SMD3528 | 3 | DC 12 | 0.3 | 24LM | 140° | IP65 |
| BW-MD1002 | SMD5050 | 3 | 0.72 | 48LM | ||||
| BW-MD1003 | SMD5050 | 4 | 1.2 | 64LM | ||||
| BW-MD5001 | Pure white Neutral white Warm white | SMD5730 | 3 | 1.2 | 110LM | |||
| BW-MD5002 | SMD5730 | 2 | 1.2 | 85LM | ||||
| BW-MD5003 | SMD5730 | 3 | 1.2 | 110LM | ||||
| BW-MD6001 | CREE XP-E | 1 | 1.3 | 95LM |
LED Module Features:
1. Unique design, ABS PLASTIC Molding shell, adopting high brightness S,3528 SMD5050 SMD5730.
2. High llighting efficiency which can reach 90lm/W.
3. IP Rand: IP65.
4. Adopting with DC12V constant voltage driver.
5. With retrofitted holes and 3M tape, two installation choice.
LED Module certification:
LED Module Applications:
