Swiel Head Metal Bandsaw Cutting 60 Degrees
- QingDao
- T/T D/P D/A
You May Like
-
G-400 Tianwan Hydraulic Pump Cut Carbide Rectangular Saw Machine
-
GZ4018 Scissor Type Horizontal Hydraulic 180mm European Type Cutting Bandsaw
-
Chinese Cutting Angle Saw Cutting Band Saw Machine Metal Saw Machine
-
Band Saw for Angle Cutting Machine Metal Saw Machine
-
Rotating Horizontal SawAngle Cut 45 Degree Cutting Metal Band Saw
-
Small Cutting Angle Saw Machine Cutting Band Saw Machine Metal Saw
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | NR | Model Number | G330 | |
| Voltage | 380v | Rated Power | 2.2kw | |
| Dimension(L*W*H) | 2100*1450*1300mm | Weight | 950kg, 950kg | |
| Certification | CE ISO | Warranty | 2 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

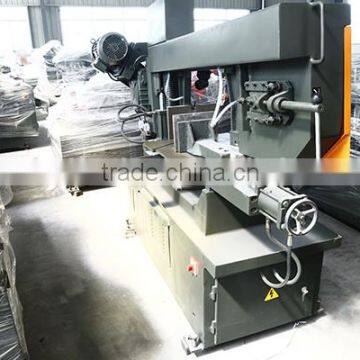

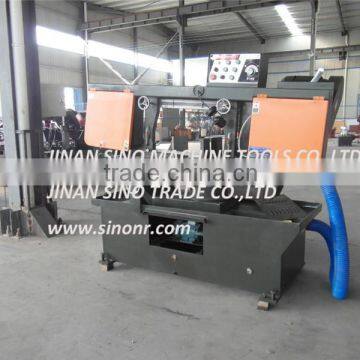

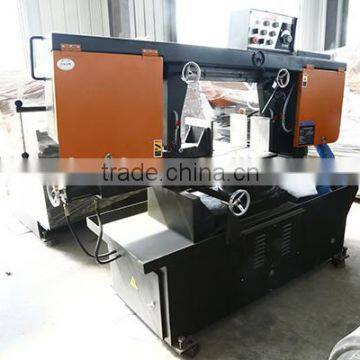

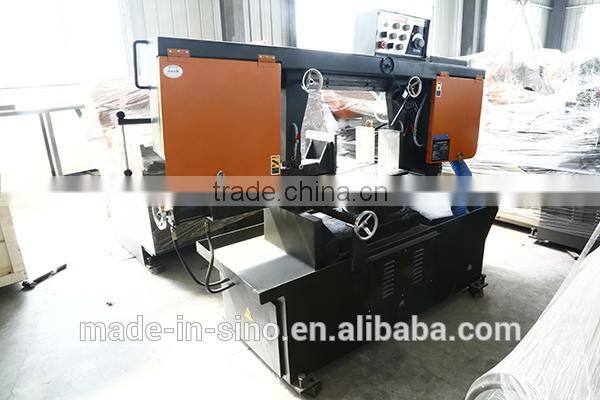

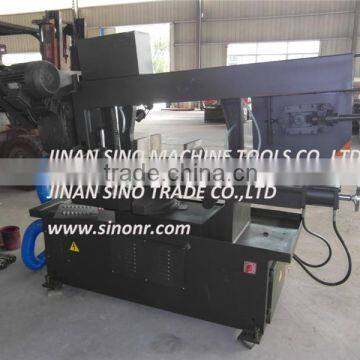

Miter Angle Ratation Cutting Metal Band Saw G330
Advantages and Features
1. Semi automatic cut cycle, miter cutting & straight cutting
2. With working lamp
3. Hydraulically controlled single vise clamping system

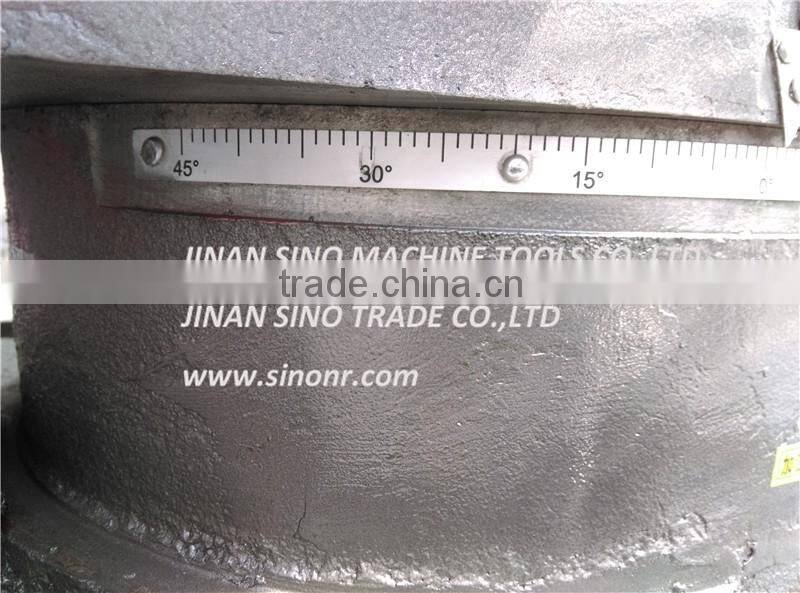

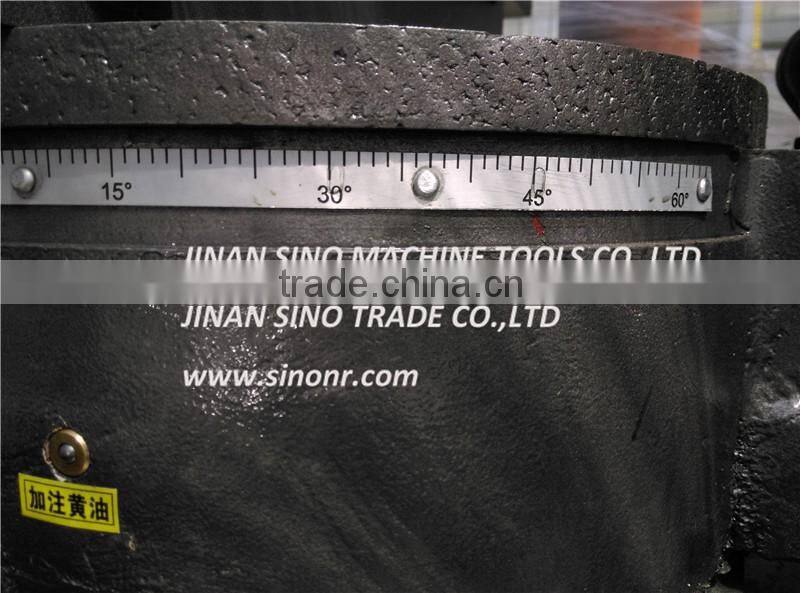

4. Bi-direction angle swivel -60… ± 45… ~ 90… with scale indicator
Detailed Specifications
| Model number | G-330 | |
| Cutting Capacity(mm) | At 0° | Round: Φ330mm , |
| Rectangle: 250H x 400W | ||
| At +/-45° | Round: Φ250mm , | |
| Rectangle: 250H x 300W | ||
| At -60° | Round: Φ180mm , | |
| Rectangle: 250H x 180W | ||
| Cutting angles | +45°~ -60° | |
| Blade Size | 4115×27×0.9mm | |
| Main Motor | 2.2KW | |
| Oil Pump motor | 0.75KW | |
| Cooling Pump | 0.04KW | |
| Blade speed(m/min) | 40/60/80 | |
| Working clamping | Hydraulic | |
| Blade tensioning | Manual | |
| Working table height | 750 mm | |
| Weight | 950Kg | |
| Size | 1800 x 900 x 1450mm | |

Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade . Band saws are a cost effective way to cut different material in many different shapes.

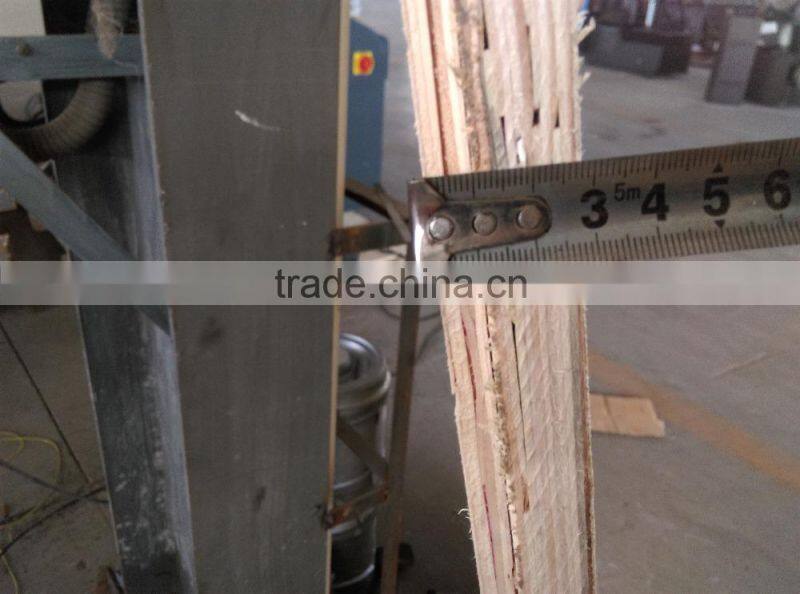

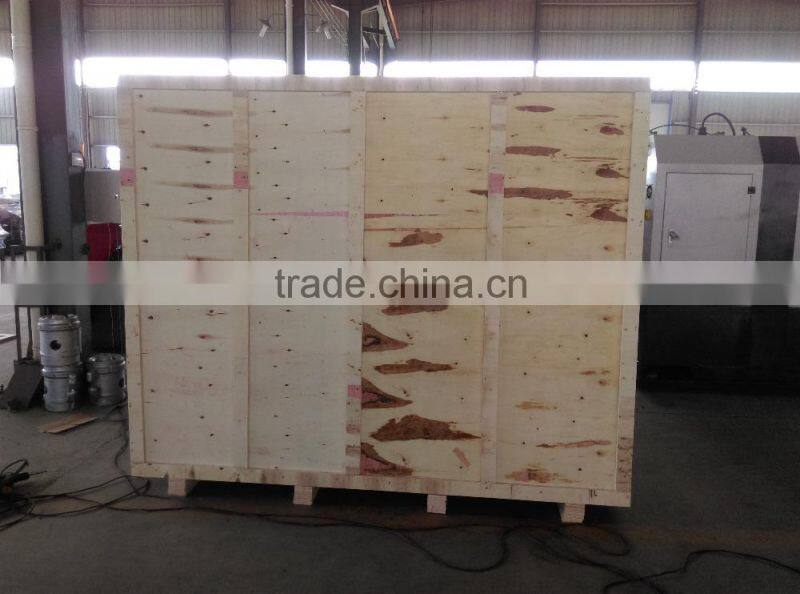

High quality plywood package can give the best protection to bandsaw machine during the long tranpotation.

JINAN SINO MACHINE TOOLS CO.,LTD is one professional metal band sawing machine manufacturer from china. We began our business in the year of 1998, and started to export as JINAN SINO TRADE CO.,LTD since 2009.
Now we have 2 brands-NR&JF, and all our products have been CE&ISO certificated. We have the strong capacity in R&D,design and manufacturing.
Our main products include double-column band saw machine, angle band sawing machine, NC band saw machine, vertical band sawing machine , etc. With advanced technology and competitive prices, our products sell well in China as well in the world .
| Q1: What is your MOQ? |
| A1: Our MOQ is one set. |
| Q2: Can I change the motor voltage and frequency? |
| A2: Yes, voltage and frequency are made as request. |
| Q3: What is your Delivery time? |
| A3: Usually, it's 15 working days after receiving your payment. |
| Q4: Can I use my own logo? |
| A4: Yes, OEM is always be welcome. |
| Q5:What payment method can you accept? |
| A5: T/T, L/C |
| Q6: What is your quality guarantee? |
A6: Every machine will be strictly inspected and tested before shipping to clients. Besides, we offer 2 years warranty for the band saw machine since the delivery date. |
- Two years(24 months) guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
Contact Us
- Jinan Sino Trade Co., Ltd.
- Contact nameSonnie Wang Chat Now
- Phone0086-531-88973496
- AddressNo. 16, Floor 3, Bldg. 1, Tianlin Business Building, West Yongan Rd., South Kaiyuan St., Jibei Development Area, Jiyang County
