Tissue Paper Folding Machine Price

                                                                            tissue paper folding machine

tissue paper folding machine description

Using imported PLC program control system, the production of color touch screen, servo electric appliance, frequency conversion and imported electric appliance can be used to set the length of the product, the number of stacking pieces and the speed of production directly on the touch screen. 5-80 wipes packaging machine with our production line to do. Fully automatic completion of cutting and folding - plus liquid - cutting - counting - stacking – output

tissue paper folding machine main technical parameter

Wipes size:Long 150-250mm wide 80-110mm (Other specifications customized)

Expansion size: Long 150-250mm width 180-220mm

Pillow type packing size: Long 110-330mm width 30-130mm high 10-65mm

Folding way: N, double interlocking type folding (can be customized)

Applicable raw materials: Coil, hot rolled, cloth, nonwoven cloth, cloth is less than or equal to 1000 300mm wide acupuncture

Control program: PLC

Use power: Servo speed control

Parameter setting: Color touch screen

Production speed: 1500-2500 / min = 10-65 / minutes

Compressed air: Customer owned

Packing size: Depending on the configuration, models and set

Power Supply: 50HZ 7.5kW 350V

Weight:About 7000kg specific weight depending on the machine configuration

tissue paper folding machine  feature

1. The device from large volumes of non-woven material first automatic of > n auto type folding, excision and automatic liquid, automatic cutting, automatic counting, automatic stacking, automatic output products, the entire line is finished automatically.

2. the equipment processing all kinds of nonwoven cloth hot air; hot rolling; non-woven products.

3 .equipment is equipped with 1.2 sets of two meters online cutting device, pneumatic automatic feeding device, gas - up - shaft, pneumatic wide belt conveyer.

4 .device is equipped with a set of folding device, can be folded, with more than half of N, adjust the tension device.

5 .the whole system adopts imported conveyer belt conveyor, firm, durable and none polluting.

6. the equipment is equipped with a water free alarm system and a complete set of automatic liquid adding system (including stainless steel sterilizing liquid mixing cylinder)

7. equipment electrical control system: the use of imported PLC program control system, with color touch screen, servo electric, frequency conversion, import electrical control of production, can be directly on the touch screen to set the product length, stacking number, production rate, human operation, greatly improve the efficiency and product rate.

8. electrical wiring is reasonable, beautiful and easy to operate.

9. compact structure, high speed, stable performance, stable performance, simple operation, equipment sealing plate and related to the product parts all adopt stainless steel material production, accord with health products production conditions, the design concept is advanced, has been domestic and foreign users.

tissue paper folding machine applications:

1.This machine is suitable for wet tissue packaging, toweltoilet paper packaging mask packaging,

napkins, facial tissue packaging,  etc.

2.The wet wipes manufacturing packaging machine is a fully automated production line can be

separated into two parts, the front part has wetting functions,also,you can adding other functions according to customer requirements,the  other parts iswet tissue packaging machine.

You can buy  the packaging machine alone.

3.Working steps: raw material--slitting--folding-wetting--cutting--packing .

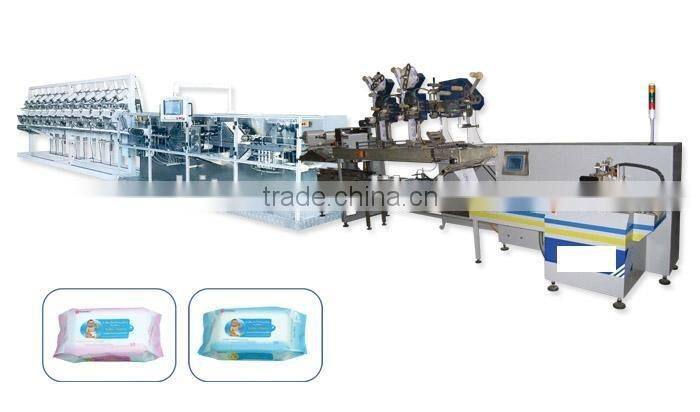

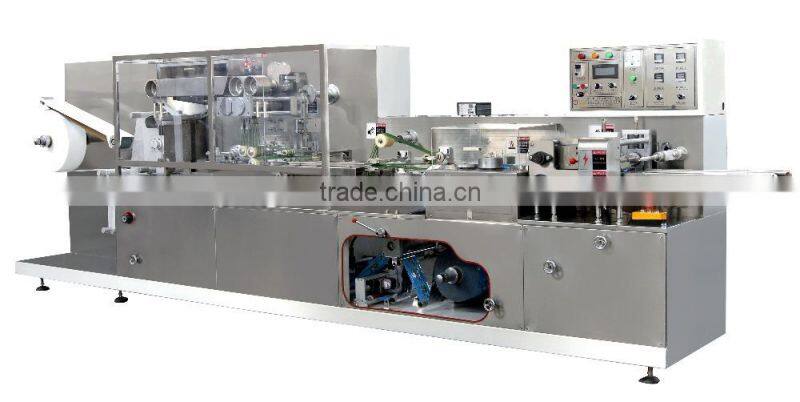

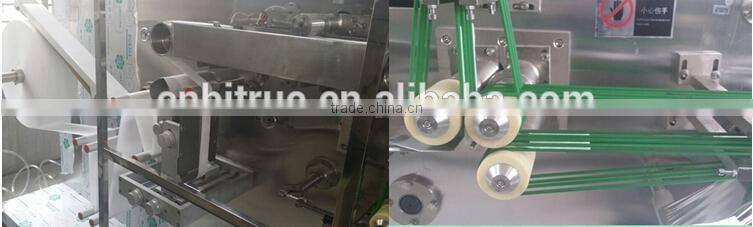

tissue paper folding machine picture

tissue paper folding machine sample

 Packaging and shipping
