toilet tissue paper factory
- 100 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Product Type | Toilet Tissue | |
| Processing Type | Binding Machine | Place of Origin | Shandong, China | |
| Brand Name | BT | Model Number | toilet tissue paper factory | |
| Voltage | 380 V 50HZ | Power(W) | 3.5-11KW | |
| Dimension(L*W*H) | 6200mm*3200mm*1800mm | Weight | 3000kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
toilet tissue paper factory
toilet tissue paper factory description
1.International advanced PLC computer programming technology.
2.Frequency control, electronic brake and touch-screen interface operation system.
3.Coreless rewinding system.
4.Automatic trimming, adhesive, sealing, punching, auto feeding, removing shaft and squashing are integrated in one.
toilet tissue paper factory main parameters
| Name of machine | Tissue Paper Making Machine | |||||
| Model | HY-1092 | HY-1575 | HY-1880 | HY-2400 | HY-2600 | HY-2800 |
| Width of raw paper | 1300mm | 1800mm | 2200mm | 2350mm | 2550mm | 2750mm |
| Outer diameter of raw paper | 1100mm(adjustable) | |||||
| Diameter of finished products | 60-120mm(customizable) | |||||
| Inner diameter of core(raw paper ) | 76.5mm(adjustable) | |||||
| Programmable controller | PLC computer programming | |||||
| Production speed | 150-200m/min | |||||
| Bottom embossing roller | Felt roller, wool roller, rubber roller, etc.(customizable) | |||||
| Embossment | Single embossment, double embossment, steel to steel embossment, etc.(customizable) | |||||
| Mechanical drive | Continuously variable transmission(CVT),main engine is without belt drive, ensuring accuracy pitch and length. | |||||
| Unwinding stand | 1-3 layer | |||||
| Braking system | Electronic brake, pneumatic control. | |||||
| Main power | 3.5-11kw | |||||
| Overall dimension | 6200mm*3200mm*1800mm(vary with different models) | |||||
| Weight | 3000-9000kg | |||||
toilet tissue paper factory advantage
1. Advanced PLC computer programming technology is applied to full automatic toilet paper rewinding machine. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.
2. It is equipped with frequency control, electronic brake(EABS), and touch-screen interface operation system. Automatic trimming, gluing, sealing, punching, auto feeding, removing shaft and squashing are integrated in one. Ensuring lower consumption when the roll paper is feed into band-sawing machine. So products are of high grade and high efficiency.
3. It is equipped with coreless rewinding system, reducing labor costs, making products more beautiful.
4. With high precision screwy perforation knife. With 4 perforation blades to make low noise and high definition when perforating. The perforating pitch is controlled by gearbox.
5. Automatic detection of paper break and wrap up, to guarantee the high quality of the finished rolls even in the high speed operation.
6. Coreless rewinding system has changed traditional method to take out the core to make high quality solid coreless roller. Reducing the manpower.
7. With three-layer horizontal unwinding stand, pneumatic feeding system. Each roll of raw paper has its individual control unit for tension adjusting device.
8. The web can be threaded on the machine by the two jog buttons, it is more safe and easier to feed the web.

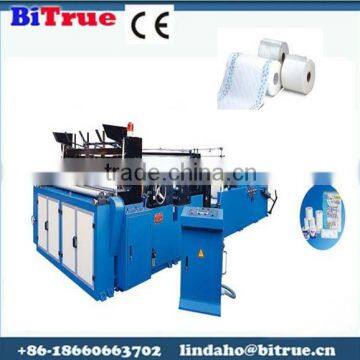

toilet tissue paper factory picture
toilet tissue paper factory sample
