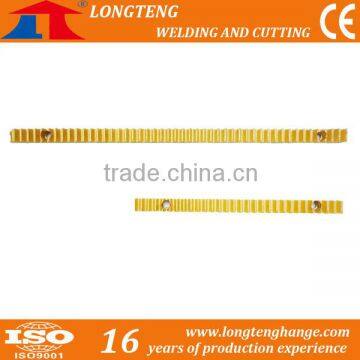

Gear Rack for Cutting Torch of CNC Cutting Machine

Specifications

Gear Rack For Cutting Torch of CNC Cutting Machine

1)Quick Detail:
1. For CNC Cutting Machine-use
2. Longteng brand
3. LT-CT-5

2)Structural Features:
1. It is made of high quality forging brass.
2. The length up to constumer's need.
3. It is used for CNC Cutting torch and cutting torch holder and so on.
4. More light and more firm.
5. Space width, addendum, high tooth root, tooth height, tooth thickness, tooth root radius

3)Applications:
Points racks rack spur and helical gear rack, respectively, with a spur gear and helical gears used in pairs; Rack tooth profile is a straight line rather than involute (compared to the tooth surface in terms of plane), equivalent to the pitch circle radius is infinite cylindrical gears.

4)Working Principles:
(1) Since a straight rack tooth profile, the points on the tooth profile with the same pressure angle, and the tilt angle is equal to the tooth profile, the tooth angle is called angle, standard value 20 ° .
(2) parallel to either the top of the teeth having a tooth pitch and the same straight line on the modulus.
(3) parallel to the tooth top line and the tooth space width equal to the thickness of the line is called the degree of the line (line), which is calculated baseline rack size.

5)Packing Details:

5)Maintenance Skills:

6)Competitive Advantage:
1. Professional manufacturer for CNC Cutting Machine Accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
