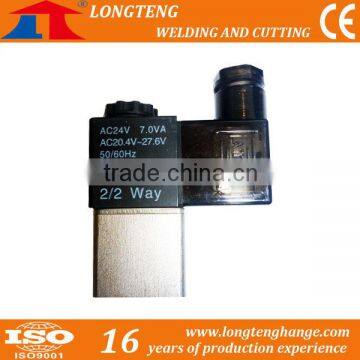

AC 24V Solenoid Valve for Ignition Device of CNC Cutting Machine

Specifications

AC 24V Solenoid Valve for Ignition Device of CNC Cutting Machine

1) Quick Details
Standard or Nonstandard: Standard
Structure: Control
Pressure: High Pressure
Power: Solenoid
Material: Brass
Temperature of Media: Normal Temperature
Media: Gas
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Longteng
Color: Natural

2)Specification
1. CE certification and ISO 9001: 2008
2. Solenoid valve is kind of switch, it can be used in cutting torch and ignition device

3) Applications:

4)Working Principles:
1. The Automatic Igniter is equipped with solenoid valve and high-voltage unit, which is installed on the cutting torch to adjust the distance between the cutting nozzle and ignition source.
2. When power is on, with the help of the solenoid valve the high-voltage unit will bring about fire source, which will meet with the fire hole of the cutting nozzle to realize ignition.
3. By using the ignition device, which makes it easier to work, and can improve efficiency and reduce the inefficient combustion time of the cutting nozzle.
4. The small holder has two kinds 30mm and 32mm, which according to the O. D. Of the cutting torch for the machine use.
5. The high voltage unit is the transformer, which could transform the low voltage into the high voltage, then get the spark and ignition function, when the sparkle meet the fuel gas, which will get flame to ignite the cutting tip for cutting.

Standard Configuration
Holder: 1
High-voltage unit: 1
High-voltage cable: 1 (1.5 M)
Flashback arrestor: 1
Gas valve: 1
Solenoid valve: 1
Gas inlet assembly: 1
Copper connecting terminal: 1

A). DC24V power supply, with safe and reliable aviation connector
B). High pressure electronic igniter is used
C). Special mini-valve control is designed
D). Acetylene back flash arrester ensures no back flash impact the main gas supply pipe
E). 1/4"-LH or 6mm connector is adopted

5)Maintenance Skills:
1. Install the Ignition Device correctlly.
2. Replace the consumbles in time before completely damaged.
3. Keep the connection threads of spare parts clean.
4. Keep the contact area of betwween the Copper connectors.
5. Check if there are loose parts.

6) packing Details:

7)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
