Aluminium Electric Wire Cable
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP&OEM | |
| Model Number | H05VV-F 2*2.5 RVV | Application | Overhead | |
| Conductor Material | Copper | Jacket | PVC | |
| Insulation Material | PVC |
Product Description
Specifications
aluminium electric wire cablefessional manufacture cables for 13 years
2.factory direct sale
aluminium electric wire cable
VCT/RVV cable: full copper conductor PVC insulated PVC sheathed soft wire;
Specification:
Standard: BS6500,IEC60227:1993,VDE0281
Structure:Stranded OFC wires,PVC insulated, PVC sheathed;
Rated voltage: 300/300 v,300/500v
Working temperature: 70 °C Japan VCT cable 2 core 3 core 300V
Features: soft
color: white or black
Categories:
1.by shielding:shielded wire (RVVP) and un-shielded wire (RVV)
2.fire prevention: flame retardant, fire-resistant, LSZH type;
Common RVV specifications:
1. 2 core, 3 core , 4 core,5 core etc;
2.Main specifications: 0.3, 0.5, 0.75, 1.0, 1.5, 4 , 5 square, etc., such as RVV2 * 1.5 refers to the two core 1.5 square
Application:
the control signal transmission line, electrical equipment, instrumentation, automation equipment, security alarm system, high-rise building intercom system, household lighting cables, etc.;
Technical parameters:
| Conductor Nominal Cross-section | Conductor construction | Insulation Nominal thickness | Sheathed Nominal thickness | Max. Diameter of Cable | Approx weight of cable |
| mm2 | mm | mm | mm | mm | kg/km |
| 2*0.5 | 2*16/0.20 | 0.5 | 0.6 | 6 | 28.8 |
| 2*0.75 | 2*24/0.20 | 0.5 | 0.6 | 6.4 | 36.6 |
| 3*0.5 | 3*16/0.20 | 0.5 | 0.6 | 6.2 | 36.8 |
| 3*0.75 | 3*24/0.20 | 0.5 | 0.6 | 6.8 | 47.9 |
| 4*0.5 | 4*16/0.25 | 0.5 | 0.6 | 6.5 | 45.6 |
| 4*0.75 | 4*24/0.25 | 0.5 | 0.6 | 7.4 | 60.6 |
| 5*0.5 | 5*16/0.20 | 0.5 | 0.7 | 7.3 | 57.4 |
| 5*0.75 | 5*24/0.20 | 0.5 | 0.7 | 8.2 | 75.5 |

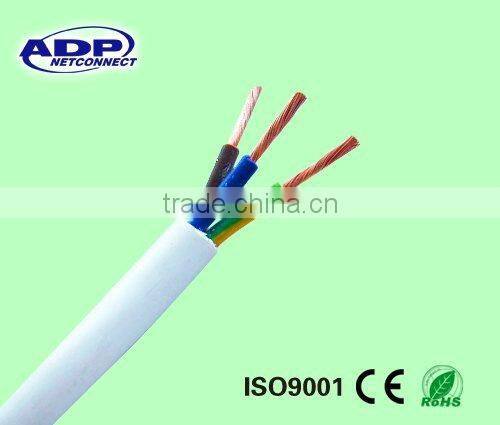

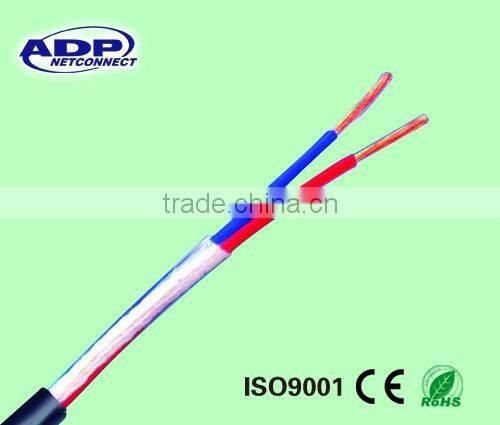

Pictures for show:
