Home > Products > rvv,rvs,rvvp,kvv,kvvr,power cable > EXTRA FLEXIBLE ELECTRICAL WIRE 2.5MM2 WITH DOUBLE PVC SHEATH

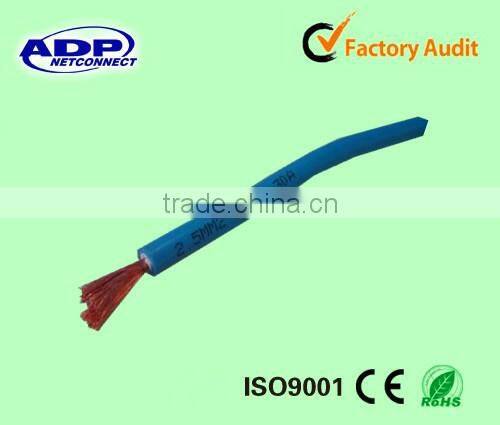

EXTRA FLEXIBLE ELECTRICAL WIRE 2.5MM2 WITH DOUBLE PVC SHEATH
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP&OEM | |
| Model Number | RVV | Type | Insulated | |
| Application | Overhead | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | PVC |
Product Description
EXTRA FLEXIBLE ELECTRICAL WIRE 2.5MM2 WITH DOUBLE PVC SHEATH

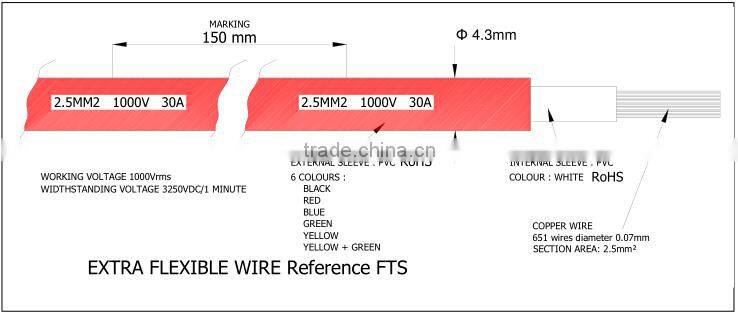

Specification:
- copper core section area 2.5mm2 made with 651 wires of 0.08mm of diameter
- 2 insulation PVC sleeves extra flexible
The first white colour

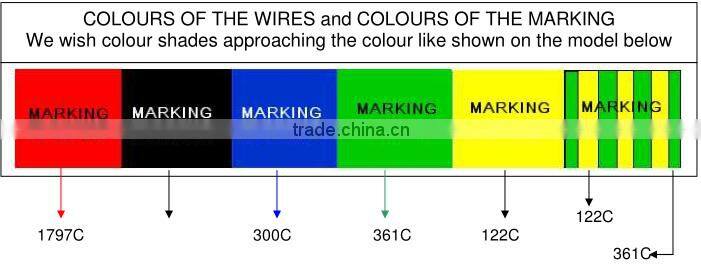

The second coloured with different standard colours: RED – BLACK – BLUE – GREEN-
YELLOW – YELLOW + GREEN (for the earth)
Marking on the external sleeve each 15 cm : 2.5MM2 1000V 30A
External diameter 5.8MM MAXIMUM
Working voltage : 1000V rms
Test voltage between the copper core and the surface of the wire: 3250Vrms
Complying with the RoHS standard
