Home > Products > waterproof fan > 120*32mm Waterproof dc Blower Fan

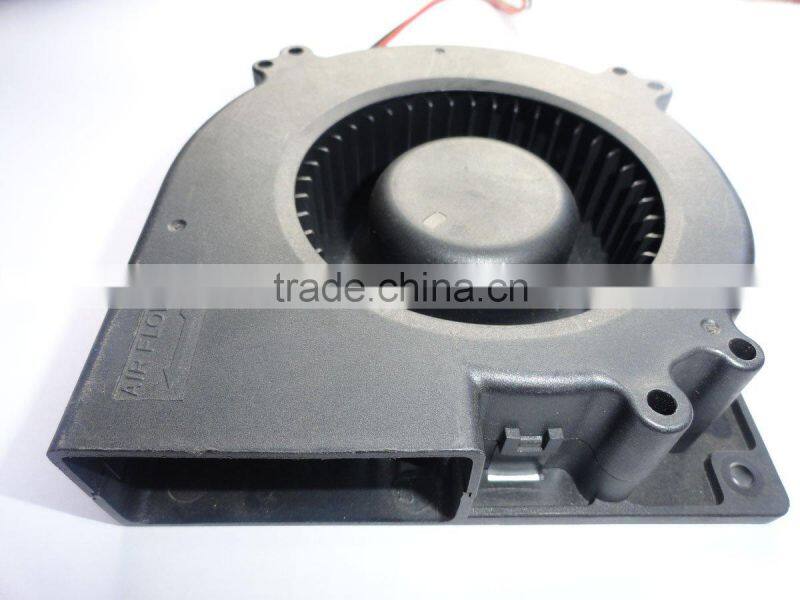

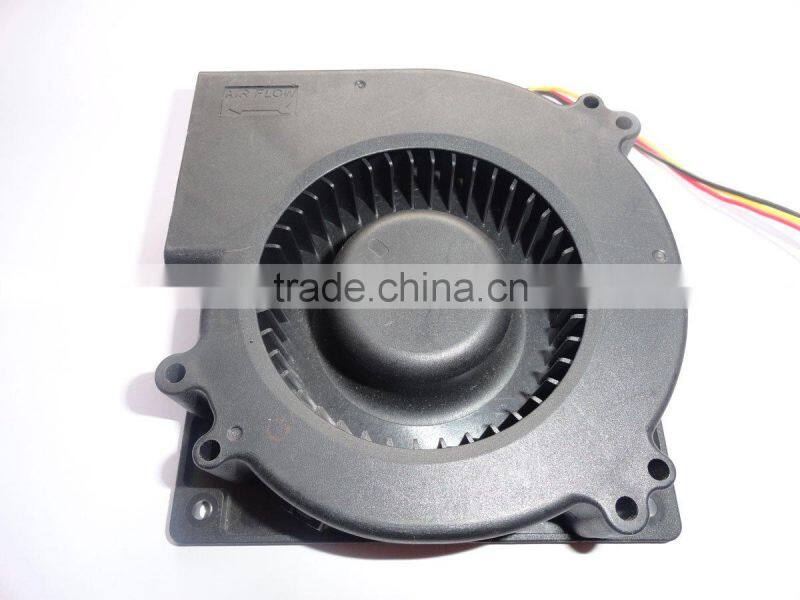

120*32mm Waterproof dc Blower Fan
US$ 1.5 - 3.5
/ Piece
1000 Pieces(Min. Order)
- shenzhen
- Money Gram Credit Card
You May Like
Product Details
| Electric Current Type | DC | Mounting | Free Standing | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | SON TIMES | Model Number | ST12032HS(B) | |
| Voltage | 12/24V | Power | 6.24-10.32W | |
| Air Volume | 55-75CFM | Speed | 2400-2700RPM | |
| Certification | CE |
Product Description
Specifications
1.waterproof dc blower fan2.size:120*120*32mm
3.rated voltage:12/24v
4.ball bearing/sleeve
5.2400-2700RPM,0.34-0.73A
| Frame size(mm) | 120*120*32mm | |
| Bearing type | ball bearing/sleeve | |
| Rated voltage | 12/24v | |
| Rated speed | 2400-28000RPM | |
| Max air flow | 55-75CFM | |
| Max pressure | 0.84-1.08inch-H2O | |
| Max noise | 44-49dBA | |
| Functions | by impedance,FG | |
| Safety approvals | CE ROHS | |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame | |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) | |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |
| Operation temperature | -10~80 degree C(+14~176 degree F) | |
| Storge temperature | -40~75 degree C(-40~167 degree F) | |
| Protection | Motor protection and polarity protection | |
| Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 | |
| fan blade material | Black PBT (UL94V-0) glass filled | |
| frame material | PBT | |
| Weight | 278g | |
