industrial exhaust fan
- Qingdao
- T/T
You May Like
Product Details
| Electric Current Type | DC | Mounting | Wall Fan | |
| Blade Material | Stainless Steel | Place of Origin | Shandong, China | |
| Brand Name | ZY | Model Number | 1380 | |
| Voltage | 220V/380V | Power | 1.1KW | |
| Air Volume | 44000m3/h | Speed | 439rpm | |
| Certification | CCC, CE |
Product Description

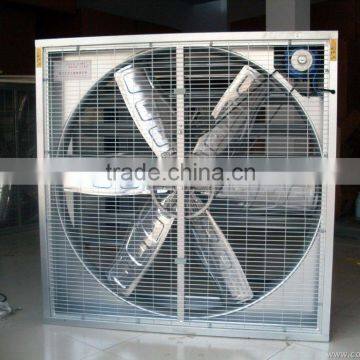

Industrial exhaust fan
Application:
1)Livestock farm: poultry house, cow house, pig house etc.
2) Green house: vegetable/ flower green house.
3) Workshop: textile/garments factory, or other kind of factory.
4,)Crowded places: net bar, stores, supermarket, waiting room and so on.
Products Features
1) Fan Frame: made from highly galvanized steel sheets in order to assure highest strength and strong resistance to corrosion.
2) Blade: 6 pieces stainless steel blades and the fan has all passed the experiment of homeostasis with big air volume, without deformation n, no breaking, attractive and durable.
3) Belt Pulley: The V type belt pulley is aluminum magnesium alloy injection molded, light weight, high-strength.
4) Bearing: France imported bearing, high intensity, low noise, long service life.
Technical details
Model | Diameter Blades(mm) | Air Volume m3/h | Power KW | Outer Size(mm) | Voltage | Frequency |
ZYA-1000 | 900 | 32000 | 0.75 | 1000*1000*400 | 380V | 50HZ |
ZYA-1100 | 1000 | 35000 | 0.75 | 1100*1100*400 | 380V | 50HZ |
ZYA-1220 | 1100 | 40000 | 0.75 | 1220*1220*400 | 380V | 50HZ |
ZYA-1380 | 1250 | 44000 | 1.1 | 1380*1380*400 | 380V | 50HZ |
ZYA-1530 | 1400 | 55800 | 1.5 | 1530*1530*400 | 380V | 50HZ |
Fan Parts:
Adopt automatic belt tensioner,make fan work smoothly:
Fanblades in Stainless Steel,no broken,long service life:
Installation Effect
| | |
| | |
ZY Series Fan:
