Hot-dipped Hexagonal Gabion Mattress
- 1500000 Square Meter / Square Meters per Month
- Tianjin Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Hebei, China | Brand Name | Hexing | |
Model Number | GB-150-100-34 | Material | Other, Low-Carbon Iron Wire, Galvanized Iron Wire | |
Type | Other, Twisted wire mesh | Application | Gabions | |
Hole Shape | Other, Rectangular | Aperture | 60x80mm 80x100mm 80x120mm 100x120mm 120x150mm | |
Wire Gauge | 2mm-4mm |
Product Description

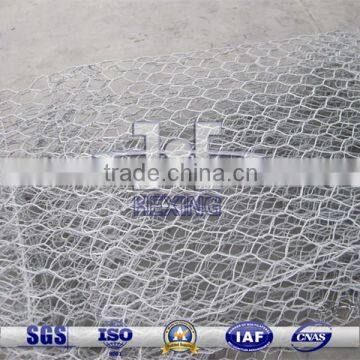

Hot-dipped Hexagonal Gabion Mattress
1. Gabion Mattress Aperture: 60x80mm 80x100mm 80x120mm 100x120mm 120x150mm
2. Gabion Mattress Wire Diameter:
(1) Mesh wire diameter range: 2mm-4mm (2) Edge wire diameter range: 0.5mm-1mm (3) Binding wire diameter range less than mesh wire, in 2.2mm generally.
3. Gabion Mattress Wire tensile strength: not less than 38kg/m2, 380N/mm.
4. Gabion Mattress Surface Treatment:
(1) Electro galvanized, zinc coating is Max. 10g/m2, with bad performance of anti-corrosion
(2) Hot-dip galvanized Zinc coating is Max. up to 300g/m2, with better performance of anti-corrosion
(3) Galan (zinc-aluminium alloy), including zinc-5% Al mixed rare earth alloy wire and Zinc-10% Al mixed rare earth alloy wire, the best performance of anti-corrosion
(4) PVC coated, PVC coating is 1.0mm generally.
5. Gabion Mattress Diaphragm: 1 diaphragm every 1 meter is located in the direction of length of gabions.
6. Gabion Mattress Dimension: 2mx1mx1m, 3mx1mx1m, 4mx1mx1m, 2mx1mx0.5m, 4mx1mx0.5m,offer sizes as per clients' requirements.
7. Gabion Mattress Characteristic: economy, easily to be installed, A strong performance of withstanding natural damage, corrosion resistance, good permeability, stacked to save transportation cost.
Mesh opening (mm) | Wire diameter (metal wire) (mm) | Wire diameter (PVC coated Inner and Outer wire) (mm) |
Strands
| Size LengthxWidthxHeight (m) |
60X80
| φ2.0-2.8
| φ2.0/3.0-2.5/3.5
| 3 |
1. 2mx1mx0.5 m; 2. 2mx1mx1 m; 3. 3mx1mx1m; 4. 4mx1mx1m; 5. 4mx1mx0.5m. |
80X100
| φ2.0-3.2
| φ2.0/3.0-2.8/3.8
| 3 | |
80X120
| φ2.0-3.2
| φ2.0/3.0-2.8/3.8
| 3 | |
100X120
| φ2.0-3.4
| φ2.0/3.0-2.8/3.8
| 3 | |
100X150
| φ2.0-3.4
| φ2.0/3.0-2.8/3.8
| 3 | |
120X150
| φ2.0-4.0
| φ2.0/3.0-3.0/4.0
| 3 |
Gabion Mesh | ||||||
Nominal Dimensions | Number of Cells | Capacity (m³) | Units/Bundle | |||
Length (m) | Width (m) | Height (m) | Zinc | PVC | ||
1,0 | 1,0 | 1,0 | 1 | 1,0 | 74 | 64 |
1,5 | 1,0 | 1,0 | 1 | 1,5 | 74 | 62 |
2,0 | 1,0 | 1,0 | 2 | 2,0 | 44 | 38 |
3,0 | 1,0 | 1,0 | 3 | 3,0 | 32 | 26 |
4,0 | 1,0 | 1,0 | 4 | 4,0 | 24 | 20 |
2,0 | 0,5 | 0,5 | 2 | 0,5 | 100 | 80 |
2,0 | 1,0 | 0,5 | 2 | 1,0 | 60 | 50 |
3,0 | 1,0 | 0,5 | 3 | 1,5 | 40 | 34 |
4,0 | 1,0 | 0,5 | 4 | 2,0 | 32 | 30 |
Binding Wire: Sufficient wire is supplied for lacing and bracing operations. | ||||||
Tolerances: Height, Width : ±5%; Length : ±10% |
