Wire Belt C-shaped End Loop
- Tianjin port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Stainless Steel Wire | |
| Type | Chain Link Mesh | Application | Other, conveyor belt | |
| Weave Style | Other, Flat flex, single layer | Wire Diameter | 0.9mm to 3.2mm | |
| Model Number | BCEL-500-7 BCEL-600-9 | Brand Name | He Xing |
Product Description
Specifications
Belt width from 10 cm until 3-metreWire diameter from 0.9 mm to 3.2 mm.
Pitch from 4 mm until 23mm
Aaperture ratio: 70%-85%

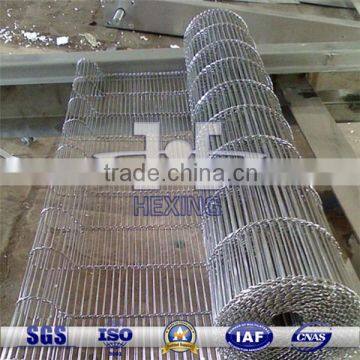

Wire belt c-shaped end loop details:
Wire belt c-shaped end loop is designed to be C-shaped curved end loops, the pattern has advantages of not tangling during shipment, storage, or installation. Wire belt c-shaped end loop has a light weight, single layer structure and positively driven by sprockets.
Aaperture ratio: 70% - 85%
Material: Flat-flex conveyor belts are made of stainless steel wire 304 316
Wire diameter: varies from 0.9 mm to 3.2 mm.
Pitch: from 4 mm until 23mm
Belt width: from 10 cm until 3 metres.
We can make wire belt as per clients' requirement. Conveyor belts are finished with single loop commonly or double looped edges for special occasions.
Application: Wire belt c-shaped end loop can be made for straight conveyors or for curved conveyors, frequently used in cooling, frying, baking, draying, heating, decorating, battering and packing machines for light products, especially usd in food industry such as, sancks, fish, pizzas, bread, pastry, candy, potato, biscuit, chocolate, nuts, fruit etc.
Wire belt c-shaped end loop specification description as below:
| Pitch(mm) | 7.26mm | 7.26mm | 6.00mm | 7.26mm | 12.7mm | 7.26mm | 7.26mm |
| Wire diameter(mm) | 1.57mm | 1.57mm | 1.27mm | 1.57mm | 2.34mm | 1.57mm | 1.27mm |
| No. of spaces | 3 | 5 | 7 | 7 | 7 | 7 | 9 |
| Overal width(mm) | 203mm | 356mm | 400mm | 457mm | 500mm | 560mm | 600mm |
