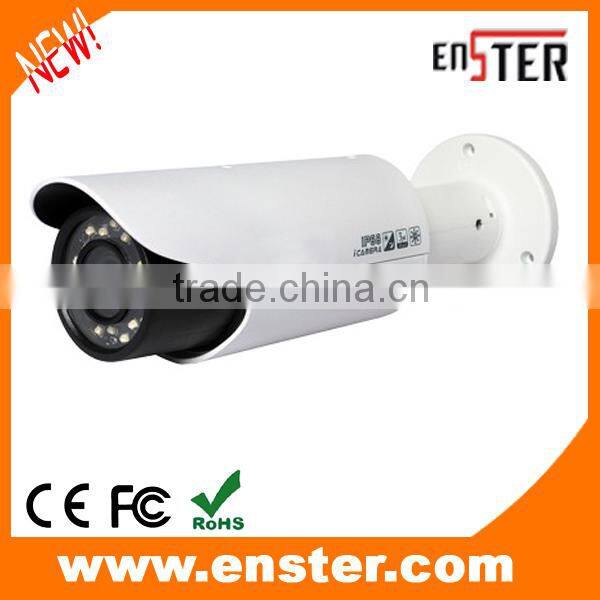

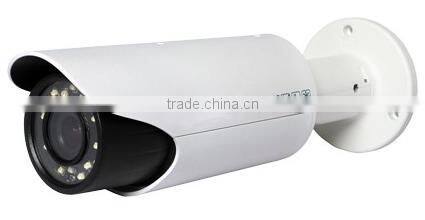

WDR 1520P 4 Megapixel IP CCTV AutoFocus Varifocal Lens, CMOS, POE, Small Car ip Camera IP Camera

Model No.

 EST-IPH5784-A

Camera Type

 Bullet IP Camera

System

Embedded RTOS design

Camera

Effective Pixels

4.0 Megapixels

Main stream:2592*1520;1920*1080

Sub stream:1280*720

Frames Rates

PAL:25fps(2592*1520)/(1920*1080)

NTSC:30fps(2592*1520)/(1920*1080)

Image Sensor

1/3" OV4689 CMOS Sensor

4 Megapixel resolution
(2688H*1520V)

DSP

Dual core   32-bit DSP
(Hi3516D)

Min. Illumination

Color   0.01Lux/F1.2

  B/W   0.001 Lux/F1.2

Adjust Parameters

Video

Compression

H.265 Main profile

Stream

support dual stream,AVI format

Bit Rate

support 0.1M ~8Mpbs bit rate adjustable

Frame Rates

support 1~30fps adjust

Audio

Input and output

1ch   input( micphone),1ch   output( Speaker&micphone) Optional

Compression

G.711 compression,support two-way audio intercom,support audio and video synchronized   output

Alarm

Types

Motion Detection, Video Blind , Video Loss

Network

WEB Browser

Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)

Smart Phone

mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)

CMS Software

Uniform CMS Software(multiple   devices   management   system)

Cloud P2P

‘,MYEYE platform and other program,Offer SDK

Network

1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

ONVIF

Support (ONVIF 2.4)

POE

Support(optional)

WIFI

N/A

General

Language

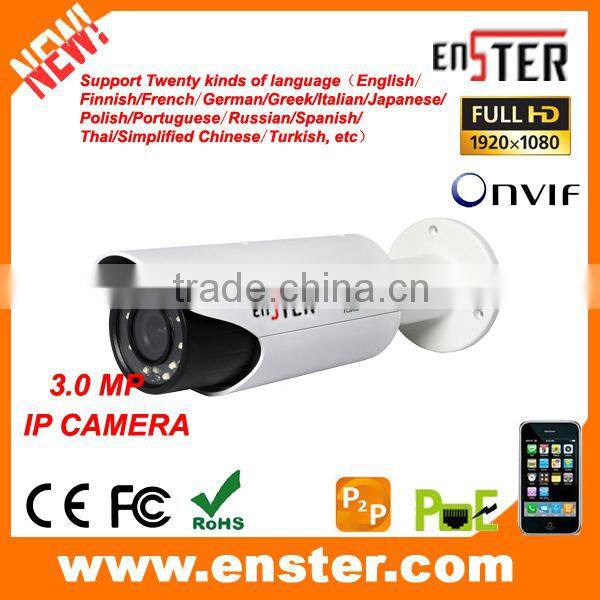

20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai,   S-Chinese, T-Chinese and Turkish

IR Cut Filter

Set of double light switch IR-CUT filter

Lens Mount

Varifocal Lens3.6 -10mm(6MP)

Infrared Luminary

N/A

Infrared Wavelength

N/A

Illuminate Distance

N/A

Waterproof Criterion

IP 55

I/O Connector

1*DC Connector ,1* RJ45(10/100M Network)

Supplied Voltage

DC12V/PoE(802.3af/820.3at)

Power Consumption

IR On: 600mA max., IR Off: Less than 200mA

Working Enviroment

’-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
