Stainless Still Air Pressure Tank/pressure Vessel Tank

as per customer's requirements

stainless still air pressure tank/pressure vessel tank

Company to introduce tight liner to absorb foreign technology,high temperature resistance(-40℃~+180℃)negative pressure resistance(less than -0.095mpa),wear resistance and so on .Lining technology not by equipment size of limit,special large equipment cannot transport of can scene construction,lining thickness 2~5mm,lining with plates has PTFE activation Board,PTFE composite glass fiber Board,PVDF composite glass fiber Board,ECTFE composite glass fiber Board.plates of produced has Japan large gold,France three products,Italy GUARNIFLON,China,card and domestic quality plates producer.

"Notes on lining technology"

(1) the lining of steel surface finish:sand blasting cleaning to Sa2 and detergents cleaning impurities,oil and so on.

(2) imported binders brushing:brushing adhesive lining.

(3)Paste:well plates coated stick to the lining of the surface paste strength>10N/mm.

(4)welding:pasted plate slot welding,weld strength reached more

than plate strength of 95%.Spark test voltage 20KV no breakdown.

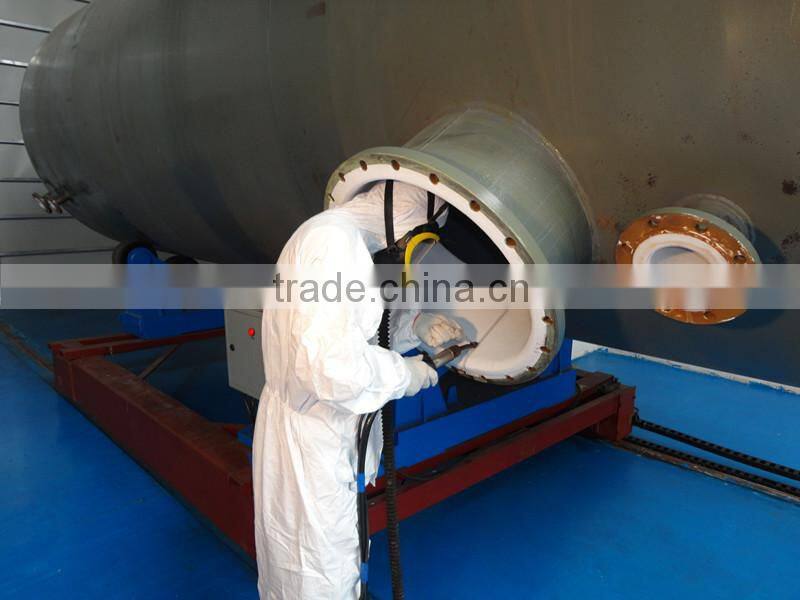

(5)nozzle configuration :prefabricated pipe lining into the spout and lined with equipment welding strength reached more than plate strength of 95%.

(6)Spark detection fire 20KV no breakdown.

"Use cases"

Chemical storage tanks,tank,reaction vessel,reaction vessels,the bath of high purity and ultra-pure corrosion of equipment.

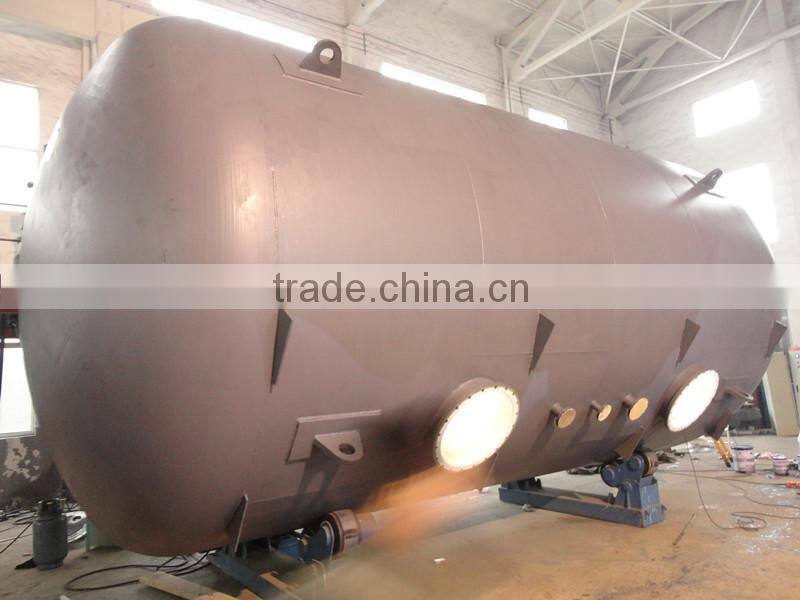

100m^{3 PTFE tight lining storage tank}

100m^{3 PTFE tight lining storage tank}

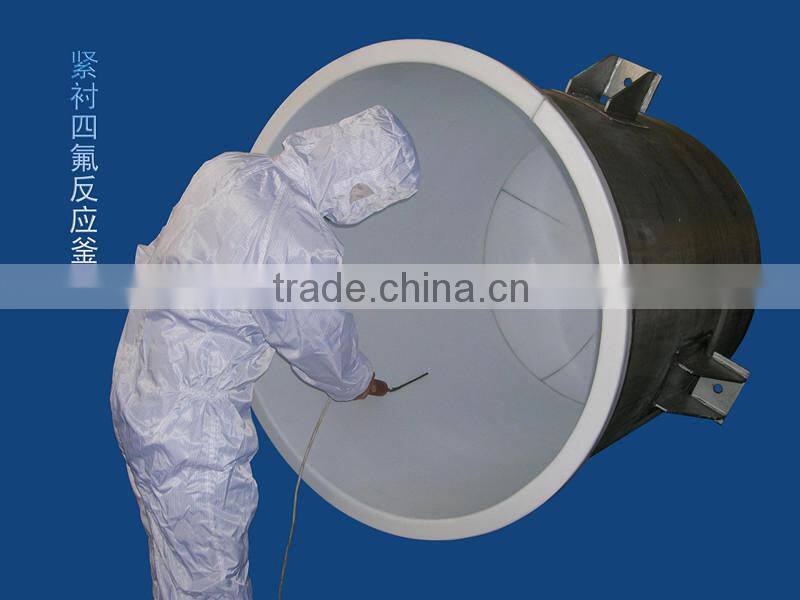

PTFE tight lining reaction vessel

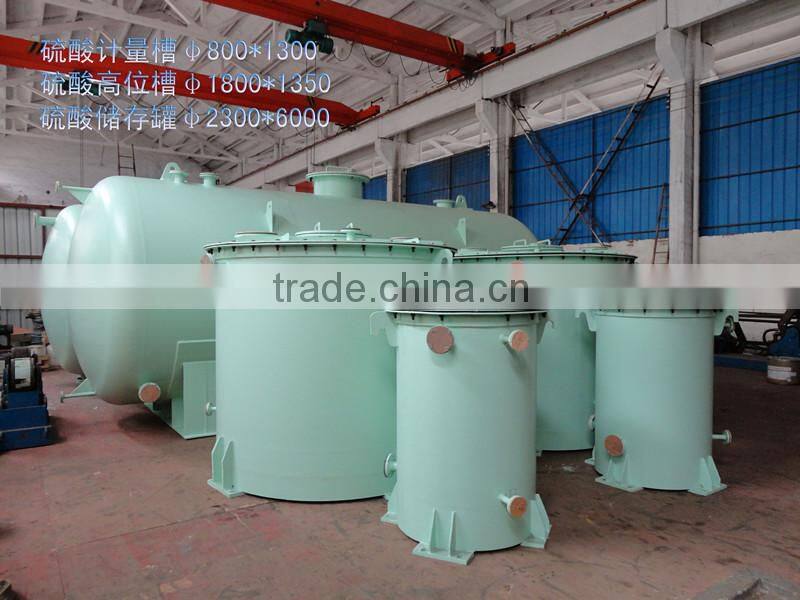

PTFE tight lining acid tank

About Haichang Machinery

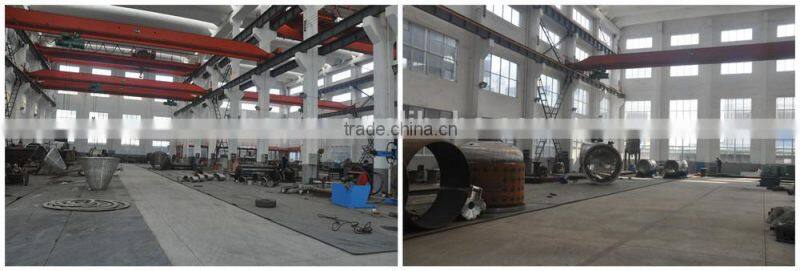

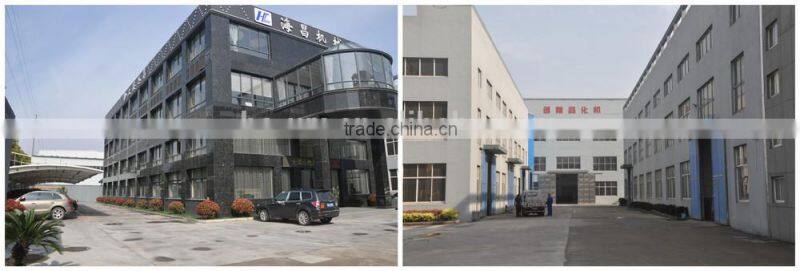

Wuxi Haichang Machinery Co.,Ltd. is an enterprise specialized in manufacturing drying,crystallizing and granulating &tableting equipment for such industries as pharmacy,food,chemical engineering and and biochemistry.Its floor afea is 15000 square meters with 12000 square meters building area and 38 million Yuan investment in total.Since its foudation,it has been always producing machines and equiment of high quality and in line with various national industy standards by taking advantage of advanced production equipment,strong technical force,sound test method,strict management system and good business reputation.

With"costumer first,service orieted"as our service philosophy,we will always provide our customers with maximum information and technical support regarding aftersales services including selling,installation,test,maintenance and repair,and so win favor able public praise and credibility in the industry.Our company fully learns advanced technologies from like products both at home and abroad,sticks to technical innovatoin and is humancentered and able to manufacture tailored equipment of firstclass quality for our customers.We have a professional and senior R&D team;an experienced engineering maintenance team providing topclass service;anexcelsior production & installation team;and a rigorous and scientific quality quailty control system.All of these favorable conditions contribute to the development of the company and thus guarantee the high quality and advancedness of the produced"machinery".We will always pursue and strive to repay our customers and serve the society with innovative,high-end and excellent products.
