Product Details
| Type | Vacuum Drying Equipment | Place of Origin | Jiangsu, China | |
| Brand Name | HC | Model Number | by customers needs to choose | |
| Voltage | 380v | Power(W) | 20--70kw | |
| Weight | 20t--40t |
frame container for dryer body, normal container for wooden box (with auxiliary parts inside)
Product Description
Continuous vacuum belt dryer for vegetables and fruit/drying machine
Superiority
1.Enclosed full -automatic treatment of oxidized products
2.Continous operation in dust-free improved operating enviroment
3.More complete non-adhesive tableting of tetrafluoroethylene guid belt
4.Salving in energy consumption during vacuum enclosed operation
5.Solvents in solvent-containing products are recyclable
6.The layers of guide belts can be produced in maximum on a large scale
Operating principle

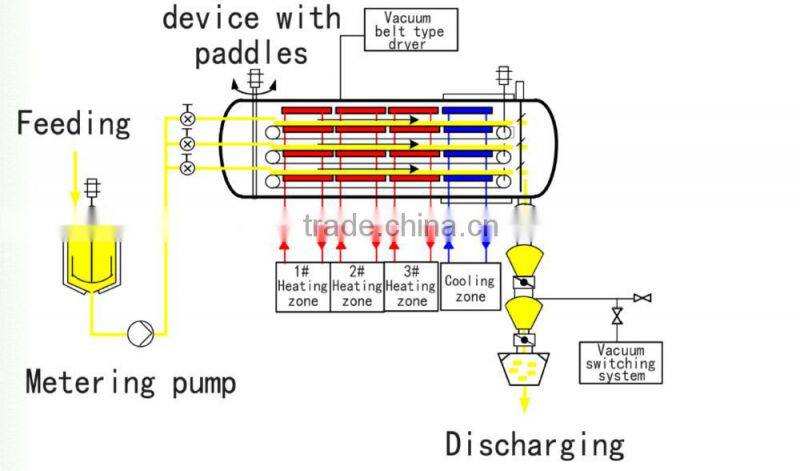

This equipment is a vacuum chamber where a material conveying guide belt(Teflon PTFE) is fixed in it.Materials are distributed continuously on the guide belt after they pass through the vacuum continuous distributor on the top of the equipment. Based on material propertise,the material distribution thickness is adjustable (3mm_30mm).The guide belt keeps conveying slowly to the other end,with the heating zone under it to provide drying heat for the belt,so the materials on the belt evaporate water during convoying constantly and the vapor is quickly removed by vacuum. The materials will automatically fall on the second_layer guide belt when they reach the end of the equipment,and they will repeat the operation again and again until they meet the drying requirements. Multilayered structure can be designed according to materical process requirements. With(40℃-180℃) temperature for each layer and adjustable running speed, this equipment is suitable for drying curve required by all kinds of materials and realizes mild drying. Finally the mater ials fall into the conveying chute at the discharging end,conveyed to the exit hole by the screw conveyor,and then delivered to the material_receiving barrel after grinding and sieving by the pulverator with adjustable mesh (20_200). The drying is finished after continuous discharging.
About Haichang Machinery
Wuxi Haichang Machinery Co.,Ltd. is an enterprise specialized in manufacturing drying,crystallizing and granulating &tableting equipment for such industries as pharmacy,food,chemical engineering and and biochemistry.Its floor afea is 15000 square meters with 12000 square meters building area and 38 million Yuan investment in total.Since its foudation,it has been always producing machines and equiment of high quality and in line with various national industy standards by taking advantage of advanced production equipment,strong technical force,sound test method,strict management system and good business reputation.
With"costumer first,service orieted"as our service philosophy,we will always provide our customers with maximum information and technical support regarding after-sales services including selling,installation,test,maintenance and repair,and so win favor able public praise and credibility in the industry.Our company fully learns advanced technologies from like products both at home and abroad,sticks to technical innovatoin and is human-centered and able to manufacture tailored equipment of first-class quality for our customers.We have a professional and senior R&D team;an experienced engineering maintenance team providing top-class service;anexcelsior production & installation team;and a rigorous and scientific quality quailty control system.All of these favorable conditions contribute to the development of the company and thus guarantee the high quality and advancedness of the produced"machinery".We will always pursue and strive to repay our customers and serve the society with innovative,high-end and excellent products.
