Home > Products > LED Explosion proof lamp > MCLED ATEX40 Watt IP67 CT6 LED Explosion-proof Light Industrial And Mining Lamp

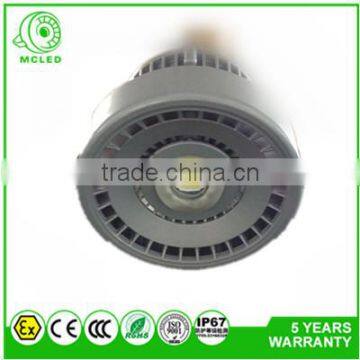

MCLED ATEX40 Watt IP67 CT6 LED Explosion-proof Light Industrial And Mining Lamp
US$ 80 - 90
/ Set
1 Set(Min. Order)
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MCLED 20W-40 Watt IP67 Energy-saving Industrial Lamp LED Explosion-proof Light ATEX
-
MCLED MF03-100W High Luminance Low Price Bridgelux LED Explosion Proof Light ATEX
-
MCLED ATEX MF-TH-50W Bridgelux IP 67 LED Gas Station Light Fixture of Ceiling Explosion Proof Light
-
MCLED MF03-70W Aluminum Low Price Best Selling Products Bridgelux LED Explosion Proof Light ATEX
-
MCLED MF03-60W High Luminance Bridgelux LED Explosion Proof Led Spot Light ATEX
-
MCLED MF03-80W Aluminum Best Selling Products Bridgelux LED Gas Atation Explosion Proof Light ATEX
Product Details
| LED Light Source | Bridgelux | Input Voltage(V) | AC85-265V | |
| Lamp Power(W) | 40 | Lamp Luminous Flux(lm) | 4400 | |
| Lamp Luminous Efficiency(lm/w) | 110 | Color Temperature(CCT) | Cool White | |
| Working Temperature(℃) | -25, 45 | Working Lifetime(Hour) | 50000 | |
| IP Rating | IP67 | Certification | CCC, CE, CQC, EMC, LVD, PSE, VDE | |
| Emitting Color | White | Base Type | Other, MCLED | |
| Place of Origin | Zhejiang, China | Brand Name | MCLED | |
| Model Number | MF04-40W |
Product Description
MCLED ATEX40 Watt IP67 CT6 LED Explosion-proof Light industrial and mining lamp
Product Description
Model Item | MF04-40W | |
LED Consumption | 40W | |
System Consumption | Power*1.1 | |
Input Voltage | 85-265V | |
Working Power Frequency Range | 50Hz/60Hz | |
Power Factor | >0.95 | |
Total Harmonic Distortion | <20% | |
Working Environment | working temperature: -25℃-45℃ Woking Humidity:0-100% | |
Average Temperature in 24 hrs | <35° | |
Surface Highest Temperature | <60° | |
Junction Temperature(TJ) | <70° | |
Lamp Luminous Efficacy(Lm/W) | >110lm/w | |
LED Initial Flux (Lm) | LED consumption*110lm/w | |
Lamp Efficiency(%) | >90% | |
Color Temperature | 2700-7000K | |
Color Rendering Index(CRI) | >70 | |
LED Life Span | >50000 | |
Protection Grade | IP67 | |
Lens Light Transmittance | >90% | |
Beam Angle | 60-120° | |
Net weight | 3.4kgs | |
Gross weight | 4.2kgs | |
Packing size | 31*31*29.5cm | |
Note:Lens can be changed according to client's specific requirement. | ||
Main products
Wide applications
FAQ
8. FAQ
Q1: What is your Ex Grade?
A: It is ExII2GIIC T6 Gb
Q2:What the meaning of the T6 in Ex Grade?
A: T means the highest surface temperature. T6 maens that the highest temperature is 85degrees. This means that those inflammable and explosive gas (which will eaplore under temperature 85 degrees)will not explore even toch with MCLED explosion proof light.
Q3:Which brand of LED chip MCLED use?
A: Amercial bridgelux
Q4: Can we have the sample for testing?
A: Of course the samples are possible. But we will charge for it. However, if the quantity is more than 250pcs, we will return the sample charge to you.
Q5: How long we can get the sample.
A: The lead time for samples ia usually 3 days.
