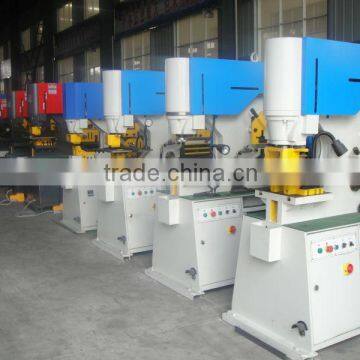

high quality iron worker machine

FOB Price

USD $8,500 - $12,500 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Hydraulic	Place of Origin	Jiangsu, China
Brand Name	haiwei	Model Number	Q35Y-20
Voltage	380V,220V,415V	Power(W)	5.5kw
Weight	2000kg	Certification	ISO 9001
Warranty	2 years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1,punch holes
2,cutting angle steel
3,channel steel,steel bar,H beam

They adopt hydraulic driving system and they are the latest iron workers in our country, Various metal plate, square bar, Round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.

Technical Data:

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Pressure(Ton)	55	75	110	140
Max. cutting thickness(mm)	16	20	25	30
Plate strength(N/mm²)	≤450	≤450	≤450	≤450
Cutting angle(degree)	7°	8°	8°	8°
Shearing size of one stroke(mm)	16250 8400	20330 10480	25330 16600	30355 20600
Ram stroke(mm)	80	80	80	80
Number of strokes(cpm)	8	8	6	6
Throat depth(mm)	300	355	400	600
Punching thickness(mm)	16	20	25	26
Max. Punching diameter(mm)	25	30	35	38
Power of main motor(kw)	4	5.5	7.5	11
Overall dimensions(LWH)mm	16407301770	16408001900	23559602090	268010402300
Weight of machine(kg)	1600	2000	4800	6800

A Special order for the joist and channel moulds needed.

Profile	Round Bar	Square Bar	Equal Angle		T-Bar		H beam	Channel
Profile	Round Bar	Square Bar	90°Shearing	45°Shearing	90°Shearing	45°Shearing	H beam	Channel
Section View
Q35Y-16	45	40*40	12512512	70708	12012012	60608	126745	126535.5
Q35Y-20	50	50*50	14014012	707010	14014012	707010	160866	160606.5
Q35Y-25	60	50*50	16016014	80807	16016014	808010	2001029	200759
Q35Y-30	65	55*55	18018016	808010	18018016	808010	28012410.5	2808611.5
Q35-16	45	40*40	12512512	10010010	12512512	10010010	180946.5	180687
QA34-25	65	55*55	15015018	11011014	15015018	11011014	3001269	300857.5

They adopt hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, round

bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting

Our hydraulic ironworkers notching section is great for working with solid plate and angle iron. This notching station can be outfitted with the optional vee notcher.Baileigh keeps a large inventory of tooling in stock for same day shipments. This machine is typically in stock for quick deliveries. Please call your knowledgeable Baileigh representative for further information.

r2. Hydraulic system:

1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.

2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Being able to work under rated load continuously,stable working and high precision.
