q11 series mechanical shearing machine

FOB Price

US$ 17,500 - 19,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	haiwei	Model Number	Q11-13*2500
After-sales Service Provided	Engineers available to service machinery overseas

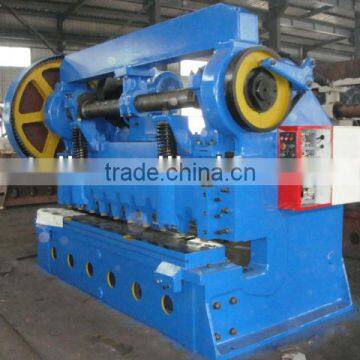

q11 series mechanical shearing machine
foot pandel operated
high speed and precision
long working life

main technical data

Name	Data		Unit	Remarks
Max cutting thickness	13		mm
Max cutting width	2500		mm
Depth of throat	200		mm
Cutting angle	3°
Intensity of sheared material	450-650		N/m
Distance of back gauge	20-700		mm
Times of stroke	30		Times/min
Cutting times	10		Times/Min
Max press force	1500		kn
Blade length	2560		mm
Height of working table	680		mm
Main motor	Type	2-Y160L-4		B5
	Power	15	KW
	Speed	970	rpm
Size	370023302500		mm

1,main construction :

steel-welded construction, vibration to eliminate stress with high strength and good rigidity

2,main parts :

A, main electrical parts supply by Siemens

D, main motor: China

E, blade: China material 9CrSi

3,inspect standard: National standard : GB/T 14349-93
