Home > Products > shearing machine > QC11Y series electric sheet metal shears

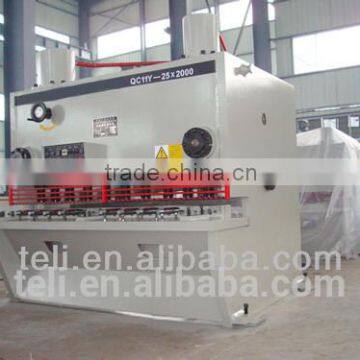

QC11Y series electric sheet metal shears
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | haiwei | Model Number | QC11Y-16*2500 | |
| Voltage | 220V,380V,415V or based on clients request | Rated Power | 22kw | |
| Weight | 9000kg | Certification | ISO 9001 | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
electric sheet metal shears1,E10 or E200s control system
2,siemens parts
3,Atos hydraulic system
electric sheet metal shears
1,main construction :
steel-welded construction, vibration to eliminate stress with high strength and good rigidity
2,advanced technology
2-1,integrated hydraulic transmission system with good reliability.
2-2, triple support rolling guide rail to eliminate gaps of support and enhance shearing quality.
2-3, mechanical rear stopper with manual fine tuning and digital indication.
2-4, clearance in between shearing blades adjusted by hand wheel to be quick accrete and convenient.
2-5, rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
2-6,upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece.
2-7,function of shearing in sections function of aligning with light.
2-8,optional:rear material holding device.
2-9,protective grating controlled by electrical system.
3,main parts :
A, main electrical parts supply by siemens
B, hydraulic system : China
C, seals : Japan
D, main motor: China
E, blade: China material 6CrW2Si
4,inspect standard: National standard : GB/T 14349-93
The second gengration of shear.
Welded steel plate cinatruction, hearing to eliminate stree, with high strength and good rigidit.
Advanced integtated hydraulic system with and excellent reliabitity quality.
Rapidly, accurately and conveniently adjusting the blade clear ance with the handwheel.
The adjustable rake angle cn minmize plate deformation.
As the cutting beam has been designde in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed.
Shearing in sections, shadow-line cutting.
Couter for the motoriaed back gauge.
Plate-support of back of machine(optional).
QC11Y-8X4000 8 4000 0.5° -2° 450 800 11 4620X1800X2050 9500
QC11Y-12X2500 12 2500 0.5° -2.5° 450 1000 18.5 3180X1800X2100 8200
QC11Y-12X3200 12 3200 0.5° -2.5° 450 1000 18.5 3980X1950X2310 11800
QC11Y-12X4000 12 4000 0.5° -2.5° 450 1000 18.5 4780X2000X2400 15500
QC11Y-12X6000 12 6000 0.5° -2.5° 450 1000 30 6800X2500X2950 28000
QC11Y-16X2500 16 2500 0.5° -2.5° 450 1000 22 3280X1900X220 10000
QC11Y-16X3200 16 3200 0.5° -2.5° 450 1000 22 3980X2000X2425 13500
QC11Y-16X4000 16 4000 0.5° -2.5° 450 1000 22 4780X2200X2520 17800
QC11Y-16X6000 16 6000 0.5° -2.5° 450 1000 30 6800X2600X3050 35000
QC11Y-20X2500 20 2500 0.5° -2.5° 450 1000 30 3300X2000X2380 14000
QC11Y-20X3200 20 3200 0.5° -2.5° 450 1000 30 4000X2280X2490 17000
QC11Y-20X4000 20 4000 0.5° -2.5° 450 1000 30 4800X2500X3000 28000
QC11Y-25X2500 25 2500 0.5° -2.5° 450 1000 37 3400X2300X2750 19000
QC11Y-25X3200 25 3200 0.5° -2.5° 450 1000 37 4100X2400X2580 24000
QC11Y-32X2500 32 2500 0.5° -3° 450 1000 37 3400X2400X2850 22000
QC11Y-32X3200 32 3200 0.5° -3° 450 1000 37 4100X2550X3000 28000
QC11Y-40X2500 40 2500 1° -3.5° 450 1000 45 3400X2600X3100 29000
