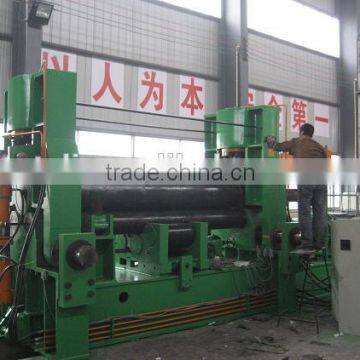

CNC three roller hydraulic plate rolling machine

Specifications

Hydraulic Plate Rolling Machine  60x3000

CNC three roller hydraulic plate rolling machine

2, main technical data:

Upper roller adding pressure         690tons

Max width of roll board :            3000mm

The length of working rolls             3100mm

Max thickness of plate             60mm(carbon steel σs≤245Mpa)

Max thickness of plate pre-bending   52mm(carbon steel σs≤245Mpa)

Up roll diameter:                 Φ650mm

Down roll diameter:                 Φ380mm

Distance between two down rolls :     700mm

Support rolls :                       one group

Drive speed:                      about 3.5m/min

Hydraulic motor:                  30KW

DRIVING motor                       75KW

Moving motor                       15KW

Remarks: 1, quantity of remain catheter≤2.9 times of plate thickness

       2,bending precision, roundness, linearity, ends surface error all less than 3mm/M

Precision of the superior products

Unique crooked craft , the high-accuracy tip is curved in advance, the crooked angle after not having in succession, the crooked course is digital control.
Man-machine dialogue controls the high-efficient intelligence of interfaces to operate
Peculiar crooked craft software, the interactive window, the automatic compensation of the crooked course, operate singly, high-efficient and safe and convenient!

Abundant crooked form
Have rolls of form to make O type, U type, many sections of R ,etc. different forms.

Choice of many models According to the use or users' enquiry, count and show the model economily, TC numerical control model chooses.
