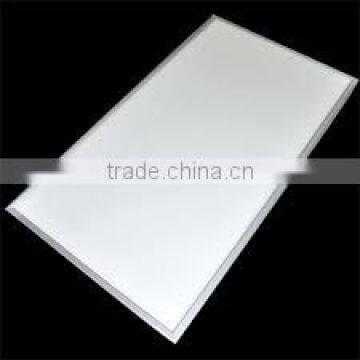

3000K,4000K,5000K,input 100V-277v panel led light
- shanghai port
You May Like
-
2'X2',2'X4' sizes,ETL,DLC listed led wall panel
-
Long life.high lumen maintenance,high CRI ,led panel light housing
-
golden supplier,factory price,support OEM, china led panel
-
Ideal energy-efficiency ,good performance, durable panel light
-
Hot sale ,competitive price, 40W,60W,80W led ceiling panel light
-
translucent white polystyene lens,durable,easy install led light panel
Product Details
| LED Light Source | SMD LED CHIP | Warranty(Years) | 5 | |
| Input Voltage(V) | AC100-277V | Lamp Power(W) | 36 | |
| Lamp Luminous Flux(lm) | 3600 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 45 | |
| Working Lifetime(Hour) | 35000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | ETL, UL, ETL, UL | |
| Place of Origin | Shanghai, China | Brand Name | ileding | |
| Model Number | led panel light |
Product Description
3000K,4000K,5000K,input 100V-277v panel led light
Typically used to replace 2’X2’ and 2’X4’ fluorescent fixtures, the Frame Edge Lit Flat Panel is designed to lay in drop ceilings in offices, schools, and healthcare applications. The flat panels are fully dimmable and are compatible with building controls, motion sensors, timers, and daylight harvesting systems.
The design of the panels produces an even, consistent shadowless light. The LEDs enable long life, high lumen maintenance, and high CRI, and are low maintenance and constructed without hazardous materials.
SPECIFICATIONS
Item | specification | Model | ||||||
IL-22PL36WXXK | IL-22PL52WXXK | IL-24PL52WXXK | IL-14PL36WXXK | IL-14PL52WXXK | ||||
General Performance | Lumens Delivered(lm) | 3600 | 5200 | 5200 | 3600 | 5200 | ||
Efficacy(lm/w) | 100 | 100 | 100 | 100 | 100 | |||
CRI | >80 | >80 | >80 | >80 | >80 | |||
Color Temp (CCT) | 3000K/4000K/5000K | |||||||
Lumen Maintenance(L70) | >50,000hrs | |||||||
Electrical
| Power Consumption | 36W | 52W | 52W | 36W | 52W | ||
Input Voltage | AC100V-277V | |||||||
Power Factor | >0.95 | |||||||
Physical
| Dimensions | 603*603*9 (mm) | 603*603*9 (mm) | 600*1200*50 (mm) | 301*1212*11 (mm) | 301*1212*11 (mm) | ||
Weight | 4800g | 4800g | 6800g | 4080g | 4080g | |||
Operating Temp | 0-104℉ | |||||||
Humidity | 20%-85% RH | |||||||
Certification | Certification | ETL, DLC | ||||||
Material Usage | RoHS compliant; no mercury | |||||||
Environment | Indoor | |||||||
Warranty | 5 Years | |||||||
Quality Control:
Each lamp should pass all QC procedures before shipping to customer.
Trade Terms:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping .
2. Sample policy : Samples are always available for each model , and samples can be free if the value less than USD50.
Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
