LM79 LM80 High CRI 23W 3000K 120V Round LED Light Engines
- Shanghai China
- T/T
You May Like
-
5.5 Inch 2700K 3000K 17W Round LED Light Engine with DLC ETL
-
5 Years Warranty 7 Inch 23W LED Light Engine with DLC ETL Listed
-
DLC ETL Listed 5.5inch 17W 2000K 3000K Round LED Light Engine
-
AC 120V LED Troffer Retrofit Kit magnetic led light engine
-
LED Troffer Retrofit Kit magnetic mount led light engine
-
AC Direct without driver LED Linear Retrofit Kit magnetic led light engine
Product Details
| Place of Origin | Shanghai, China | Brand Name | Ileding | |
| Model Number | LED Light Engines | Base Material | Steel | |
| Cover Material | Plastic | Light Source | Energy Saving | |
| Color | White |
Product Description

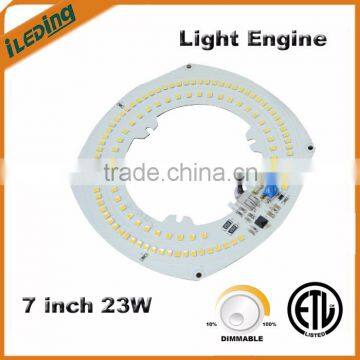

LM79 LM80 High CRI 23W 3000K 120V Round LED Light Engines
Feature
• Easy integration into new fixture construction (requires heatsink)
• Integral driver-on-board, connects directly to 120VAC
• High CRI available
• Suitable for center lockup and keyhole fixture pans
• Dimmable to 5% (with ELV/LED dimmers)
• UL Recognized for use in luminaires
Construction
• Lumileds 3030 2D chips
• Metal core board
• Push in wire connector accepts up to 18ga conductors for easy field supply wire connections
EQUIVALENCIES FOR 5.5”
• 2x60W Incandescent
• 2x13W CFL
• 22W T9 Circline
EQUIVALENCIES FOR 7.0”
• 2x75w Incandescent
• 2x18w CFL
• 32w T9 Circline
Application
• Ceiling Light
• Flush Mount fixtures
• Pendant Fixture
| FAMILY | DIAMETER AND WATTAGE | CCT | CRI |
| LED Round Light Engine | 5.5 Inch Diameter 17W | 2700K 3000K | 80 |
| 7 Inch Diameter 23W |
| Item | Specification | Model | |
| R1-5.5LER17W-XXK | R1-7LER23W-XXK | ||
| General Performance | Lumens Delivered(lm) | 1500 | 2200 |
| Efficacy(lm/w) | 87 | 95 | |
| CRI | >80 | >80 | |
| Color Temp (CCT) | 2700k 3000K | ||
| Power Consumption | 17 | 23 | |
| Color Consistency | Proprietary binning for uniform color L70 Lifetime (hours) | ||
| L70 Lifetime (hours) | 50,000 Hrs | ||
| Electrical | Power Factor | 0.98 | |
| Input Voltage | 120V | ||
| Physical | Operating | 0º-104ºF | |
| Temperature | |||
| Certification | Certification | ETL, DLC,LM79, LM80 | |
| Material Usage | RoHS compliant, no mercury | ||
| Environment | Damp Location | ||
| Warranty | 5 Years | ||
| Package methods of high bay lighting | ||||||||
| 1. Neutral Package: each lamp will be packed in a white box with a sticker ( V, W, CCT etc ) | ||||||||
| 2. Gift box or Blister package. | ||||||||
| 1). First, we will provide the dyeline of relevant product's box for you to design the colorful box | ||||||||
| 2). We will produce the box according to your artwork after received your deposit |
