Product Details
| LED Light Source | LED, LED | Warranty(Years) | 5 | |
| Input Voltage(V) | 120-277V, 120-277V | Lamp Power(W) | 100, 100 | |
| Lamp Luminous Flux(lm) | 10510 | Lamp Luminous Efficiency(lm/w) | 105 | |
| Color Temperature(CCT) | Other, 5000K | Working Temperature(℃) | -40, -20, | |
| Working Lifetime(Hour) | 35000, 35000 | Lamp Body Material | Other | |
| IP Rating | IP44 | Certification | ETL, FCC, UL, FCC, UL, ETL | |
| Place of Origin | Shanghai, China | Brand Name | ILEDING | |
| Model Number | vapor |
Product Description

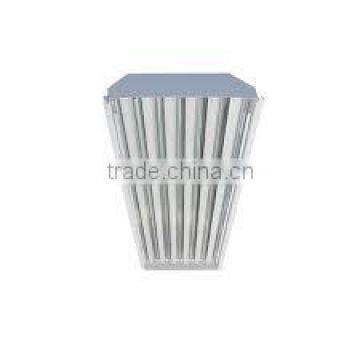

Same size and shape as T8 fluorescent fixture 300W led high bay
PRODUCT DESCRIPTION:
Ileding LED Linear High Bay Fixture with optional bi-level controls offers a classic fluorescent linear high bay housing with LM80- tested LED strips that resemble fluorescent tubes when lit. The same size and shape as a T8 fluorescent fixture, and improved with exceptional 100+ LPW output. The fixtures are constructed of sheet steel for heat sink and thermal control and a specular reflector for higher lumens.
Model Selection
Rated Power |
Model No. | Lumen | CCT | Description |
100W | RG-LHR100W-50K | 11865 | 5000K | LED Linear High Bay, 120-277V, L46"*W8"*H2“, CRI80, Dimming (0-10V) |
160W | RG-LHR160W-50K | 17515 | LED Linear High Bay, 120-277V, L46"*W8"*H2“, CRI80, Dimming (0-10V) | |
210W | RG-LHR210W-50K | 23730 | LED Linear High Bay, 120-277V, L46"*W13"*H2“, CRI80, Dimming (0-10V) | |
300W | RG-LHR300W-50K | 33335 | LED Linear High Bay, 120-277V, L46"*W13"*H2“, CRI80, Dimming (0-10V) |
SPECIFICATIONS
Item | specification | Model |
| ||
RG-LHR100W-XXK | RG-LHR160W-XXK | RG-LHR210W-XXK | RG-LHR300W-XXK | ||
General Performance | Spacing Criteria | 1.28(0°-180°)/ 1.26(90°-270°) | 1.30(0°-180°)/ 1.30(90°-270°) | 1.28(0°-180°)/ 1.26(90°-270°) | 1.26(0°-180°)/ 1.26(90°-270°) |
Lumens Delivered(lm) | 11865 | 17515 | 23730 | 33335 | |
Efficacy(lm/w) | 110 | 110 | 110 | 110 | |
CRI | >83 | >83 | >83 | >83 | |
Color Temp (CCT) | 5000K | ||||
Electrical
| Power Consumption | 100W | 160W | 210W | 300W |
Input Voltage | 120-277ac | ||||
Physical
| Dimensions | L46"*W8"*H2“ | L46"*W8"*H2“ | L46"*W13"*H2“ | L46"*W13"*H2“ |
Weight | 12.5lbs | 15lbs | 21lbs | 21lbs | |
Certification | Certification | UL, FCC, LM79, DLC | |||
Material Usage | RoHS compliant, no mercury | ||||
Environment | Indoor/Dry | ||||
LED Class | LM-80,RU | ||||
Warranty | 5 Years | ||||
