MIyoshi Kikai Precision Universal Joint Bearing Type KD

Specifications

Bearing Type KD

High Revolution Use Material S45C

This type is good for high revolution use, because needle bearings with grease sealed are used.

A hole for a spring-pin attached should be machined together with a shaft at a location of l/2.

Types of K-16 and larger come with grease nipple.

Select type BD, when you use a boot.

Designate new JIS or old JIS for key, when the type of shaft-hole shape is B or T.

A spring-pin is not attached for a joint with a key way.

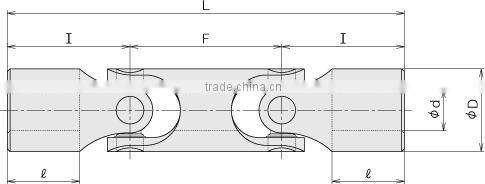

Type KD Dimension Table
